Description

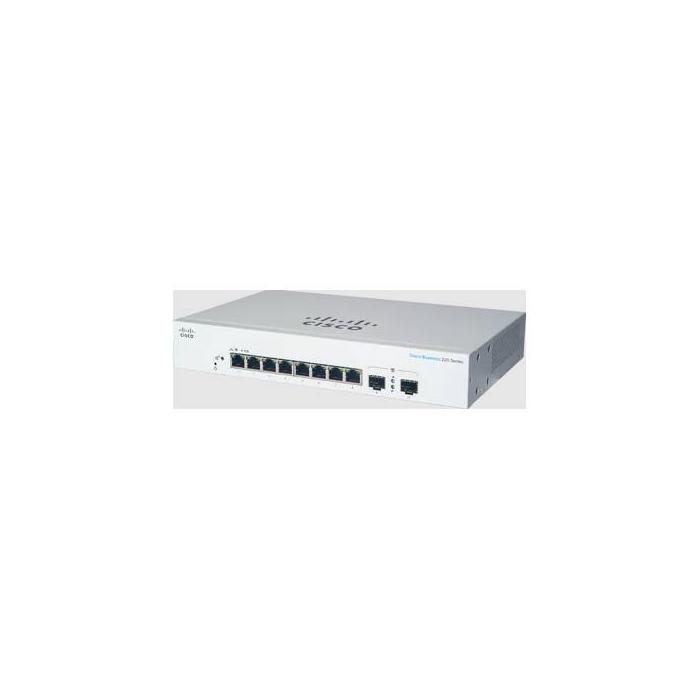

Cisco CBS220-8T-E-2G Managed L2 Gigabit Ethernet switch with 8 RJ-45 10/100/1000 Mbit/s ports and 2 SFP slots, in white and 1U format. The switching capacity reaches 20 Gbit/s and the forwarding rate is 14.88 Mpps. It includes 256 MB of internal memory and 64 MB of flash memory. It supports up to 256 VLANs and features quality of service (QoS) support. It manages addressing via DHCP client and allows web-based management, with system event logging. It supports the SNMP, SNMPv2 and SNMPv3 security algorithms. It is powered at 100 - 240 V AC and 50 - 60 Hz, with dimensions of 279 mm width, 170 mm depth and 44 mm height, and a weight of 1.16 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 2
Network
- Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 256
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8192 entries
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 4.1 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication type: IEEE 802.1x, RADIUS
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Multicast features
- Multicast support: Yes
- Multicast MAC address table: 8192 entries
Protocols
- Management protocols: SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
- Reset button: Yes
- LED indicators: Yes
Performance
- Built-in processor: Yes
- Internal memory: 256 MB
- Flash memory: 64 MB
- Firmware upgradeable: Yes
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
- Heat dissipation: 20.13 BTU/h
Weight & dimensions
- Width: 279 mm
- Depth: 170 mm
- Height: 44 mm
- Weight: 1.16 kg
Logistics data
- Harmonized System (HS) code: 85176990
