Description

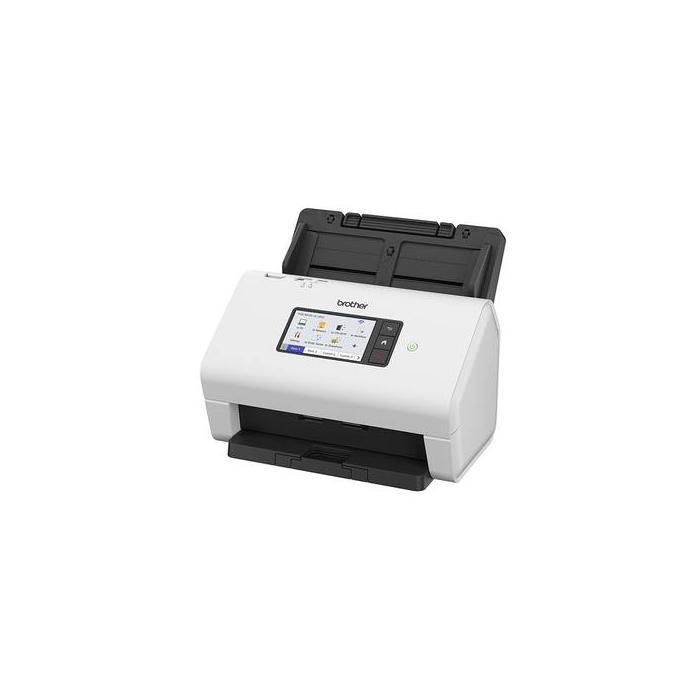

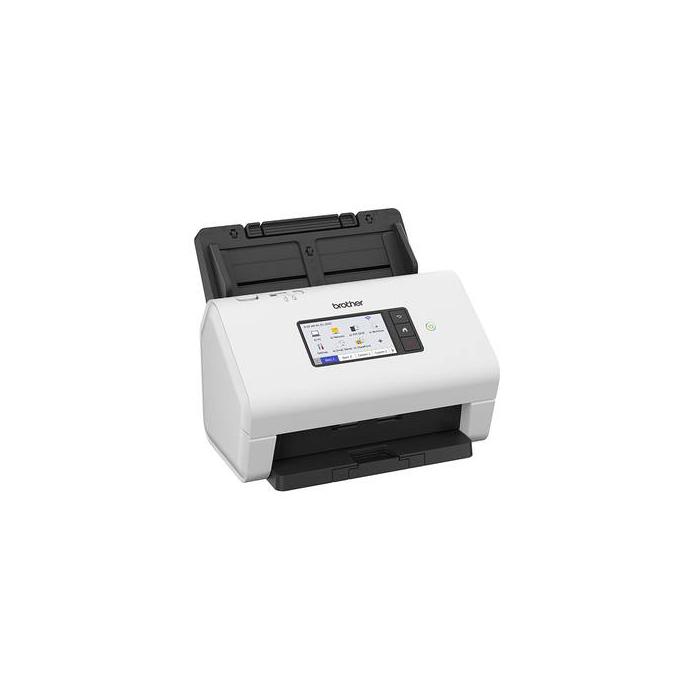

The Brother ADS-4900W scanner is a desktop unit with an automatic document feeder and duplex scanning, designed for continuous, double-sided document digitisation. It offers an ADF scanning speed of 60 ppm in black and white and in colour, rising to 120 ipm when working double-sided, always in A4 format. Its optical resolution is 600 x 600 DPI, expandable up to 1200 x 1200 DPI, and it captures 48-bit input and 24-bit output colour, with 256 grey levels. The maximum scanning size is 215.9 x 355.6 mm. It features a 10.9 cm (4.3") colour LCD screen with touch control, which makes it easy to manage tasks directly from the device itself. It has a black and white design, with dimensions of 288 x 393 x 334 mm (width x height x depth) and a weight of 3.81 kg, making it suitable for placing on any office desk without taking up too much space.
Specifications
Scanning
- Maximum scan size: 215.9 x 355.6 mm
- Optical scanning resolution: 600 x 600 DPI
- Enhanced scan resolution: 1200 x 1200 DPI
- Colour scanning: Yes
- Duplex scanning: Yes
- Input colour depth: 48 bit
- Output colour depth: 24 bit
- Output greyscale depth: 8 bit
- Greyscale levels: 256
- ADF scan speed (b/w, A4): 60 ppm
- ADF scan speed (colour, A4): 60 ppm
- Duplex ADF scan speed (b/w, A4): 120 ipm
- Duplex ADF scan speed (colour, A4): 120 ipm
Design
- Scanner type: ADF + Sheet-fed scanner
- Product colour: Black, White
- Display: LCD
- Display diagonal: 10.9 cm (4.3")
- Touchscreen: Yes
- Colour display: Yes
- Control type: Touch
- Built-in display: Yes
Performance
- Sensor type: Dual CIS
- Light source: LED
- Scan file formats: JPEG, PDF, TIFF
- Daily duty cycle (max): 9000 pages
- Maximum duty cycle: 180000 pages per month
- Scan to: E-mail Server, FTP, HTTP, PC, SMB
- Scan drivers: ISIS, SANE, TWAIN, WIA
- Ultrasonic sensor: Yes
- Scanning noise level: 62 dB
Input capacity
- Auto document feeder (ADF) input capacity: 100 sheets
Paper handling
- Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
- Long-paper mode: Yes
- Maximum ISO A-series paper size: A4
- Media thickness (min): 0.08 mm
- Card thickness (max): 1.32 mm
- Paper tray media weight: 25 - 413 g/m²
- Auto Document Feeder (ADF) media weight: 25 - 413 g/m²
- Maximum scan width: 21.6 cm
- Maximum scan length: 5 m
Ports & interfaces
- USB port: Yes
- USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Network
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Ethernet LAN: Yes
- Security algorithms: AES, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS, TKIP, TLS, WEP, WPA-PSK, WPA2-AES, WPA2-PSK,
- Supported network protocols (IPv6): RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
- Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR respo
- IPv6 support: Yes
Power
- Power supply type: AC
- Power consumption (typical): 34 W
- Power consumption (standby): 7.7 W
- Power consumption (off): 0.1 W
- Sleep mode: Yes
- Power consumption (sleep): 1.7 W
- Output voltage: 24 V
- Output current: 1.9 A
- Auto power off: Yes
Weight & dimensions
- Width: 288 mm
- Depth: 334 mm
- Height: 393 mm
- Weight: 3.81 kg
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 393 mm
- Package depth: 288 mm
- Package height: 334 mm
- Package weight: 4.6 kg
Packaging content
- Cables included: AC, USB
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
- Operating temperature (T-T): 5 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Other features
- Cable lock slot: Yes
- Certification: GS Mark, WHQL, WHQL, ISIS, Wi-Fi CERTIFIED - WPA3 Enterprise, WPA3 Personal, Wi-Fi Protected Setup, Wi-Fi Direct, KofaxTM 5,10 -
- Spare part retention: 5 year(s)
Technical details
- Pallet type: 800 x 1200 mm
Logistics data
- Products per pallet: 40 pc(s)
- Country of origin: China
- Master (outer) cases per pallet: 40 pc(s)
- Layers per pallet: 5 pc(s)
- Pallet gross weight: 186 kg
- Pallet gross height: 18.1 cm
- Master (outer) cases per pallet layer: 8 pc(s)
- Harmonized System (HS) code: 84716070
