Description

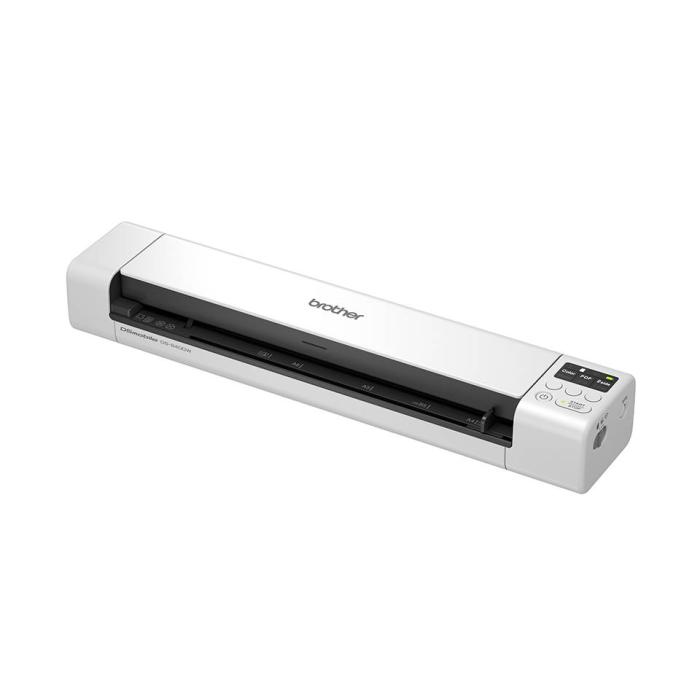

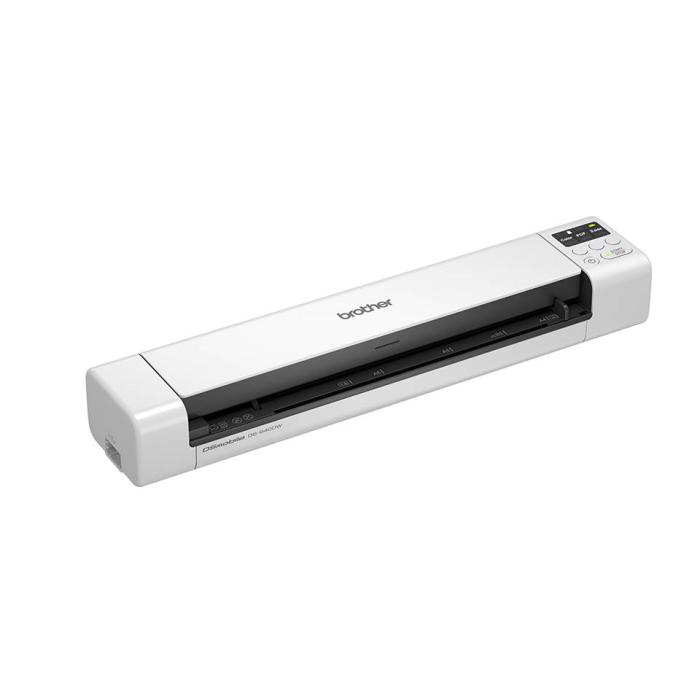

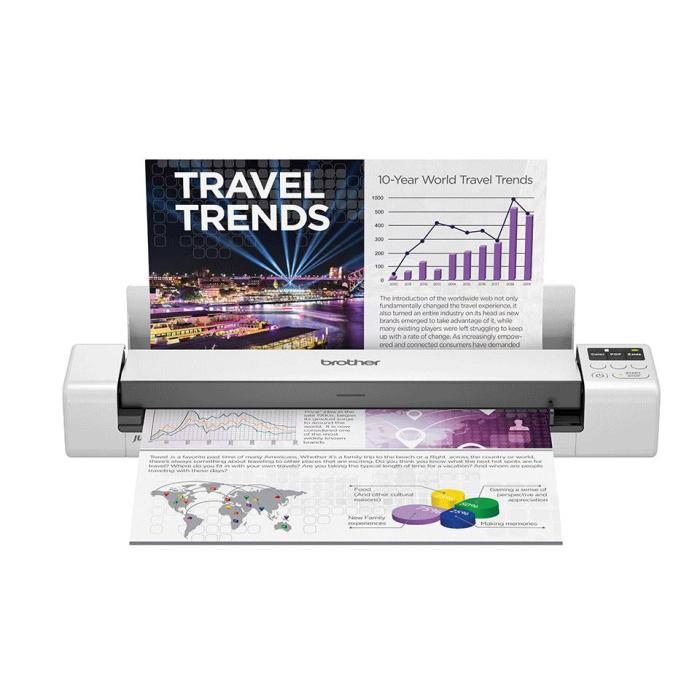

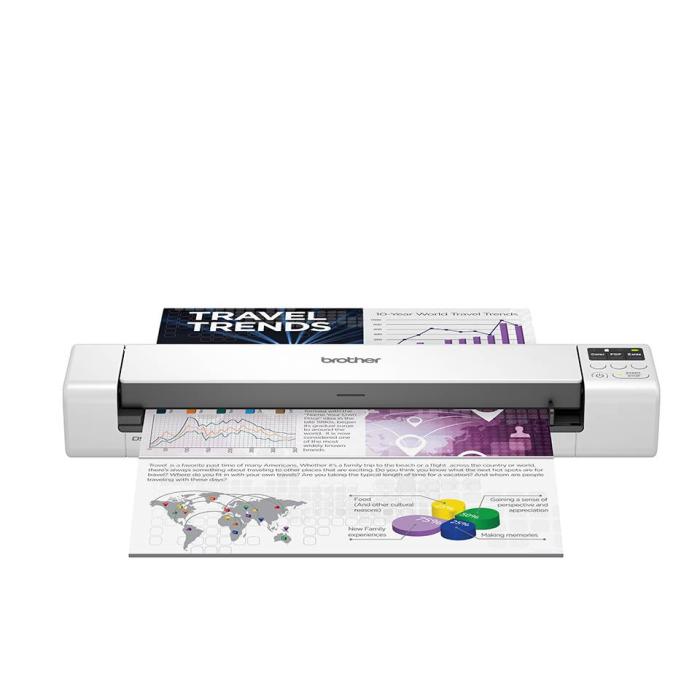

The Brother DS-940DW scanner is a black and white sheet-fed scanner that digitises documents with an optical resolution of 600 x 600 DPI. It reaches speeds of 15 ppm in black and white and in colour on A4, and in duplex mode it reaches 30 ipm in colour. It incorporates a colour input depth of 48-bit and an output depth of 24-bit, and supports greyscale and monochrome modes. The enhanced resolution is up to 1200 x 1200 DPI and the maximum scan size is 215.9 x 1828.8 mm. Weighing 590 g and measuring 162 x 377 x 76 mm, it includes 512 MB of internal memory and offers a scanning noise level of 53 dB, with a maximum sound pressure of 42 dB. It is compatible with ICA, SANE, TWAIN and WIA drivers.
Specifications
Scanning
- Maximum scan size: 215.9 x 1828.8 mm
- Optical scanning resolution: 600 x 600 DPI
- Enhanced scan resolution: 1200 x 1200 DPI
- Colour scanning: Yes
- Duplex scanning: Yes
- Input colour depth: 48 bit
- Output colour depth: 24 bit
- ADF scan speed (b/w, A4): 15 ppm
- ADF scan speed (colour, A4): 15 ppm
- Duplex ADF scan speed (colour, A4): 30 ipm
- Black/white scanning colour modes: Grayscale, Monochrome
Design
- Scanner type: Sheet-fed scanner
- Product colour: Black, White
- Built-in display: No
Performance
- Scan to: E-mail, File, Image, Memory card, OCR
- Scan drivers: ICA, SANE, TWAIN, WIA
- Scanning noise level: 53 dB
- Sound pressure level (max): 42 dB
- Internal memory: 512 MB
- Compatible memory cards: MicroSD (TransFlash)
Input capacity
- Standard input capacity: 1 sheets
Paper handling
- Scanning media types supported: Business Card, Plain paper, Plastic Card
- Maximum ISO A-series paper size: A4
- Card thickness (max): 1.24 mm
- Maximum scan width: 21.6 cm
- Maximum scan length: 182.9 cm
Ports & interfaces
- USB port: Yes
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- USB connector type: Micro-USB B
- Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN
Network
- Wi-Fi: Yes
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Security algorithms: 64-bit WEP, 128-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
- Wi-Fi Direct: Yes
- Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responde
Power
- Power supply type: USB
- Power consumption (typical): 3.6 W
- Power consumption (standby): 2.2 W
- Power consumption (off): 0.11 W
Weight & dimensions
- Width: 162 mm
- Depth: 76 mm
- Height: 377 mm
- Weight: 590 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 377 mm
- Package depth: 162 mm
- Package height: 76 mm
- Package weight: 1.23 kg
Packaging content
- Warranty card: Yes
- Cables included: Micro-USB
- Quick start guide: Yes
System requirements
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 5 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Other features
- Spare part retention: 5 year(s)
Technical details
- Pallet type: 800 x 1200 mm
Logistics data
- Products per pallet: 216 pc(s)
- Country of origin: China
- Master (outer) cases per pallet: 72 pc(s)
- Layers per pallet: 8 pc(s)
- Pallet gross weight: 274.3 kg
- Pallet gross height: 15.9 cm
- Master (outer) cases per pallet layer: 9 pc(s)
- Harmonized System (HS) code: 84716070
