Description

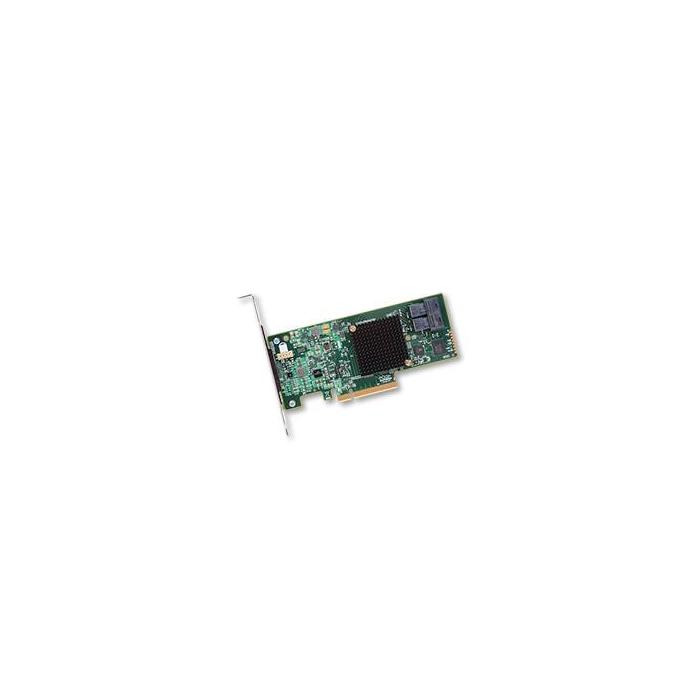

The Broadcom SAS 9300-8i adapter card offers a SAS and SATA output interface with two Mini SAS HD SFF8643 connectors, designed for internal integration in systems requiring storage management. Its PCIe host interface, along with the integrated LSI SAS3008 processor, enables a maximum transfer rate of 12 Gbit/s, suitable for server environments or workstations. This model, in green and grey, supports Windows and Linux operating systems, and holds EMC and RoHS certifications, in addition to a mean time between failures of 2,800,000 hours. It operates within a temperature range of 0 to 55 °C and with a relative humidity of 5 to 90%, measuring 152.4 mm in depth by 66 mm in width.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: SAS, SATA
- Connector(s): 2 x Mini SAS HD SFF8643
Design
- Internal: Yes
- Product colour: Green, Grey
- Mean time between failures (MTBF): 2800000 h
- Certification: EMC: Class B-US (CFR 47, P15B); ICES-00; V-3/02.04; EN55022/EN55024; AS/NZS 3548; N-B 2-0001-404; EN60950; WEEE
Features
- Built-in processor: Yes
- Processor model: LSI SAS3008
- Data transfer rate (max): 12 Gbit/s
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -45 - 105 °C
- Operating relative humidity (H-H): 5 - 90%
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 66 mm
- Depth: 152.4 mm
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Interface: 8 x SAS & SATA Internal
- Voltage: 3.3, 12 V
