Description
BIOSTAR Z590 VALKYRIE motherboard in micro ATX form factor with LGA 1200 socket for tenth and eleventh generation Intel Core processors, supporting dual-channel DDR4-SDRAM memory of up to 64 GB across its two DIMM slots. This model provides support for HDD and SSD drives through M.2 and SATA III interfaces, with RAID 0, 1, 5 and 10 options to make storage more flexible. It includes a front panel audio header and an 8-pin EPS power connector, plus DirectX 12 and HDCP compatibility to ensure graphics performance. Mount your Intel Celeron, Pentium, or Core i3, i5, i7 and i9 components on this board from the VALKYRIE series.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1200 (Socket H5)
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3200, 3600, 3733, 3800, 3866, 4000 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- HDCP: Yes
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1

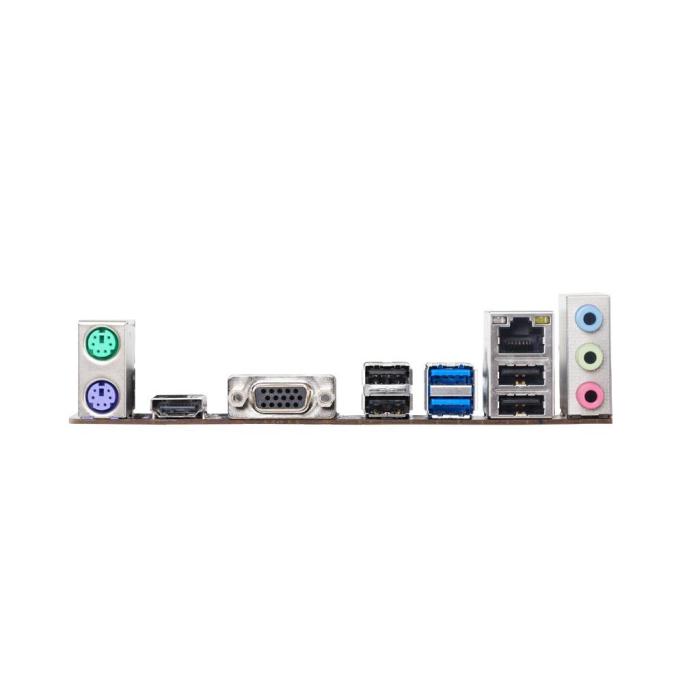

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 1.4
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- LAN controller: Intel® I219-V
- Wi-Fi: No
Features
- Motherboard chipset: Intel Z590
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI
- Clear CMOS jumper: Yes
Weight & dimensions
- Width: 185 mm
- Depth: 226 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
- Bundled software: BullGuard
