Description

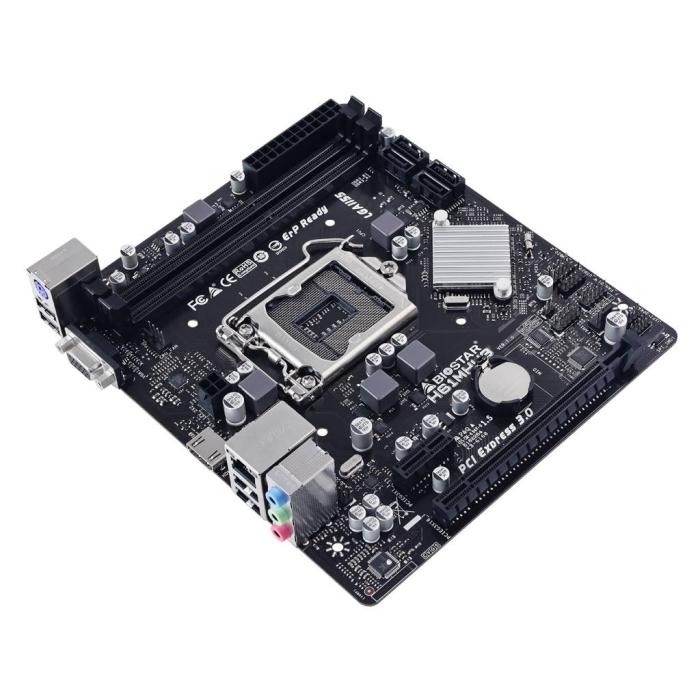

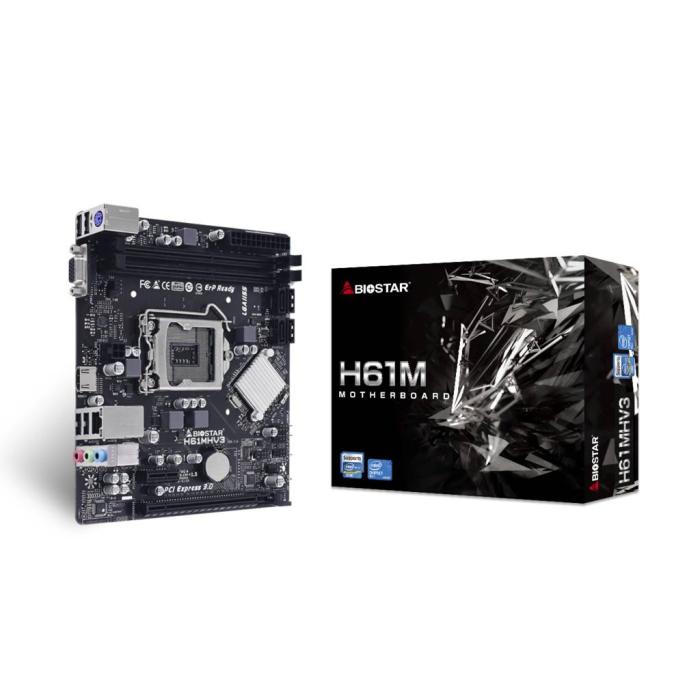

Biostar H61MHV3 motherboard in micro ATX format with LGA 1155 socket, designed for mounting compatible generations of Intel® Core™ i3, i5 or i7 processors, as well as Pentium® and Celeron®. It features two DIMM slots supporting up to 16 GB of dual-channel DDR3 memory at speeds of 1066, 1333 or 1600 MHz. It includes four SATA II connectors for storage drives, two internal USB 2.0 ports, and two chassis fan headers, along with the front panel audio connector, sufficient for a basic and stable setup.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1155 (Socket H2)
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
- Supported processor sockets: LGA 1155 (Socket H2)
Memory
- Supported memory types: DDR3-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 1066, 1333, 1600 MHz
- Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 512MB
Storage controllers
- Supported storage drive interfaces: SATA II
- Number of storage drives supported: 4
Internal I/O
- USB 2.0 connectors: 2
- Number of SATA II connectors: 4
- Audio connector: Yes
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
Rear panel I/O ports
- USB 2.0 ports quantity: 4
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- Headphone outputs: 3
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet, 100 Gigabit Ethernet
- LAN controller: Realtek RTL8111H
Features
- Motherboard chipset: Intel® H61
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Expansion slots
- PCI Express x1 (Gen 2.x) slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express slots version: 2.0, 3.0
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 170 mm
- Height: 191 mm
Packaging content
- Cables included: SATA
- User guide: Yes
- Drivers included: Yes
