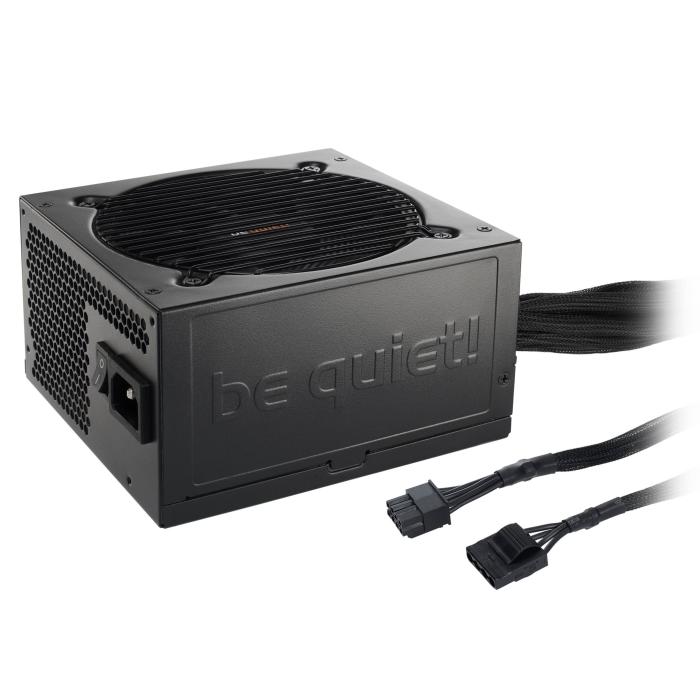

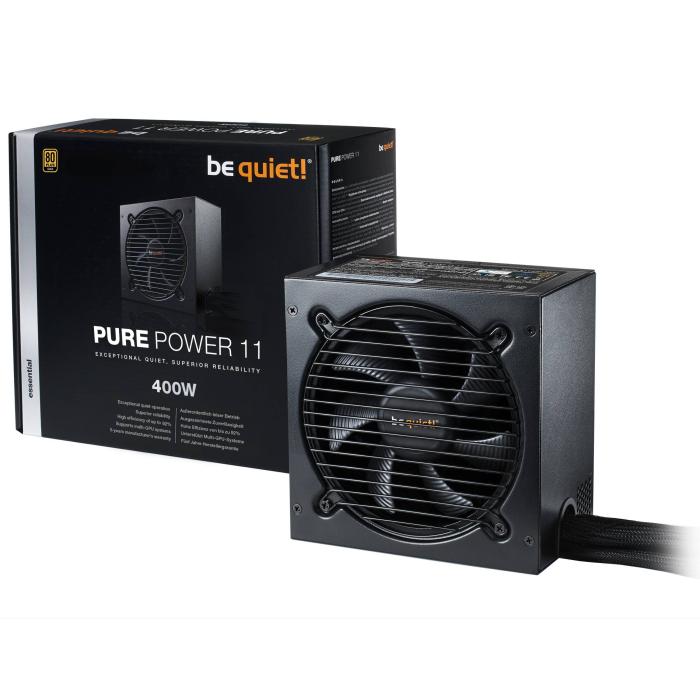

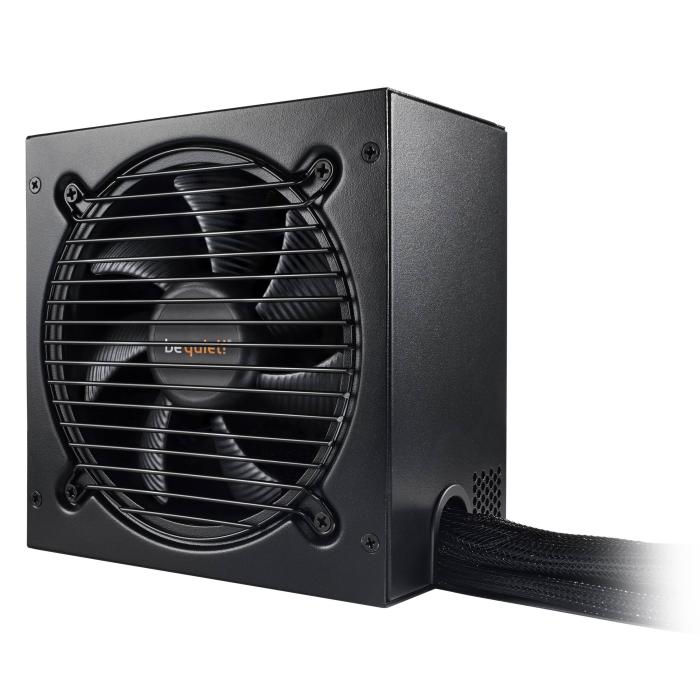

be quiet! Pure Power 11 400W power supply unit ATX Black

Not avaliable

More info

Brand: BE QUIET!
SKU: 81221 PRC: 235672 EAN: 4260052186336 PN: BN292

Description

400 W, ATX 2.4, 1x ATX 20+4-pin, 5x SATA, 2x PATA, FDD, 2x PCI-E 6+2-pin, 1x P4+4, 120mm fan, 14.9dB max.

Specifications

Power

  • Total power: 400 W
  • Peak power: 450 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 6 A
  • Power factor: 0.99
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 120 W
  • Combined power (+12V): 384 W
  • Combined power (+5V): 120 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5Vsb): 15 W
  • Max output current (+3.3V): 24 A
  • Max output current (+12V1): 24 A
  • Max output current (+12V2): 20 A
  • Max output current (+5V): 15 A
  • Max output current (-12V): 0.3 A
  • Max output current (+5Vsb): 3 A
  • Hold time: 29 ms
  • Efficiency: 92%
  • Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Cooling

  • Fan diameter: 12 cm
  • Number of fans: 1 fan(s)

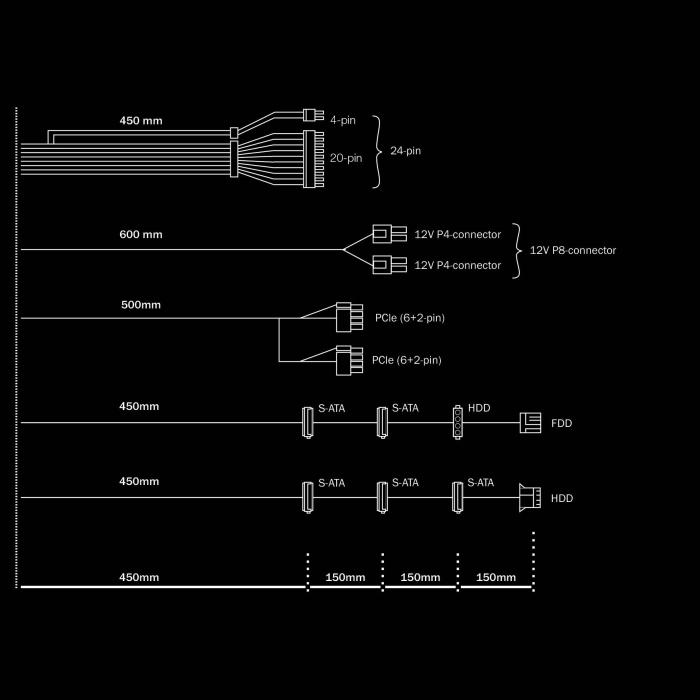

Ports & interfaces

  • Motherboard power connector: 20+4 pin ATX
  • Motherboard power cable length: 45 cm
  • Number of SATA power connectors: 5
  • Number of PATA power connectors: 2
  • SATA power cable length: 450,600,750 mm
  • PCI Express power connectors (6+2 pin): 2
  • PCI Express power cable length: 50 cm
  • CPU power connector (4+4 pin): Yes
  • CPU power cable length: 6 cm
  • Floppy disk drive connector: Yes

Performance

  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.4
  • Noise level (silent mode, <30%): 10.5 dB
  • Noise level (quiet mode, 50%): 11.4 dB
  • Noise level (full-load mode, 100%): 14.9 dB
  • Bearing technology: Rifle

Design

  • Product colour: Black

Weight & dimensions

  • Width: 150 mm
  • Depth: 150 mm
  • Height: 86 mm
  • Weight: 1.93 kg

Certificates

  • 80 PLUS certification: 80 PLUS Gold
  • Energy Star certified: Yes
  • RoHS compliance: Yes
  • Safety: CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC
  • Certification: ErP, WEEE

Packaging data

  • Package width: 210 mm
  • Package depth: 240 mm
  • Package height: 96 mm
  • Package weight: 2.22 kg
  • Package type: Box

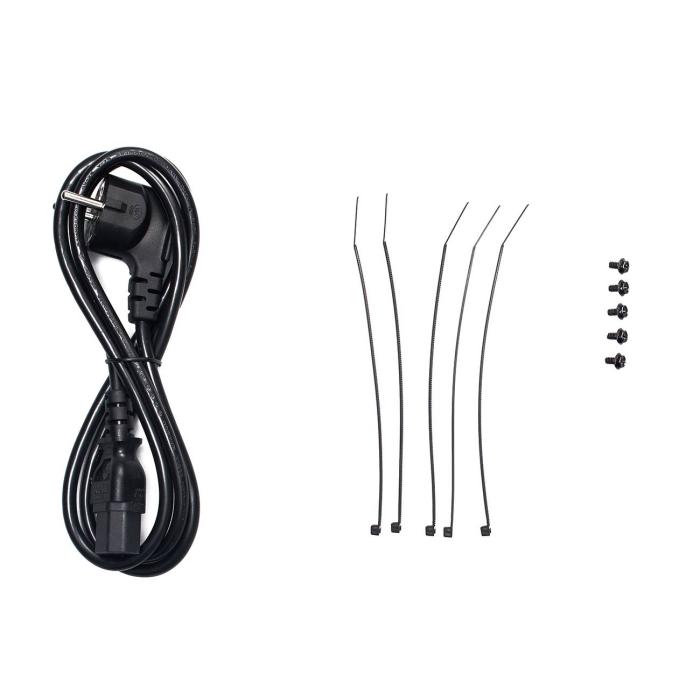

Packaging content

  • Cable ties included: Yes
  • Screws included: Yes
  • Manual: Yes

Logistics data

  • Master carton width: 32.6 cm
  • Master carton length: 51.4 cm
  • Master carton height: 24.1 cm
  • Master carton weight: 14.5 kg
  • Quantity per master carton: 6 pc(s)
