Description

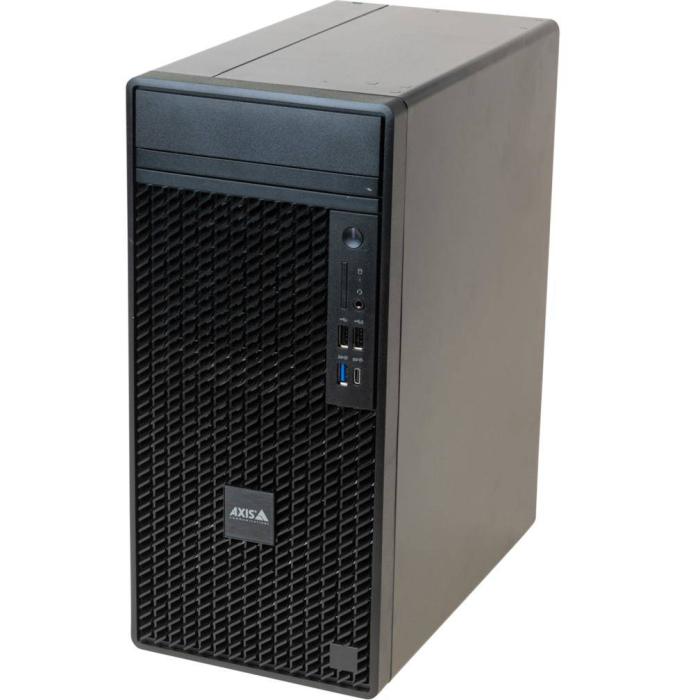

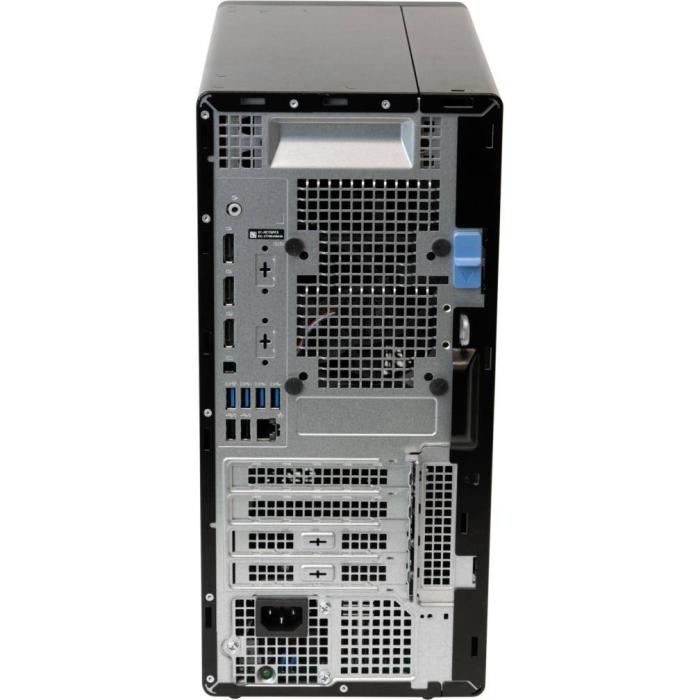

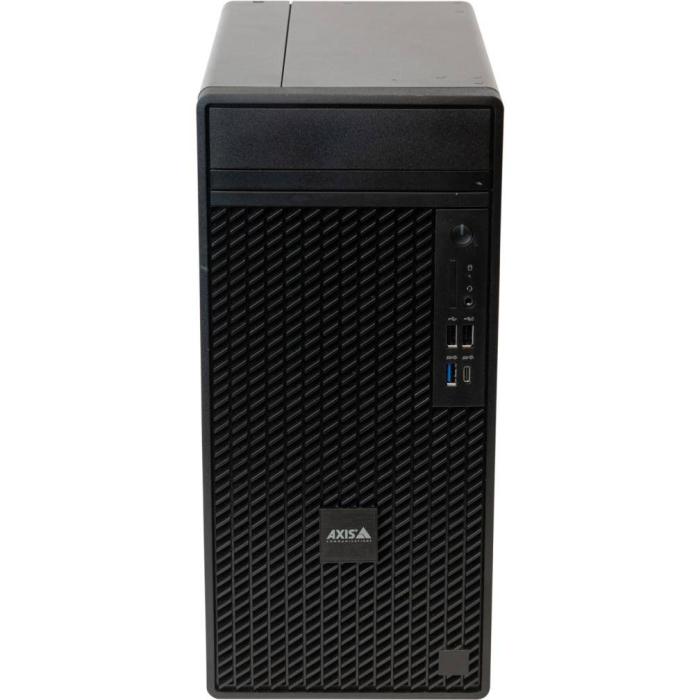

Axis 02694-002 network surveillance server in tower form factor, equipped with an Intel processor, 16 GB of internal memory and an 8 TB SATA HDD in 3.5" format, plus a 256 GB SSD. This system includes RAID 0 and 1 support with compatibility for up to two hard drives, although it does not feature hot-swap bays. It offers connectivity via one RJ-45 Ethernet port, five USB 3.2 Gen 1 ports, four USB 2.0 ports and audio input/output, all managed under Windows 10 IoT Enterprise. Designed to manage recordings and data from IP cameras, it integrates the necessary storage for professional video surveillance environments.
Specifications
Processor
- Processor manufacturer: Intel
Memory
- Internal memory: 16 GB
Storage
- Number of HDDs supported: 2
- HDD size: 3.5"
- HDD interface: SATA
- Hot-swap drive bays: No
- Total storage capacity: 8 TB
- HDD capacity: 8 TB
- SSD capacity: 256 GB
- Number of HDDs installed: 1
- Number of SSDs installed: 1
- RAID support: Yes
- RAID levels: 0, 1
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
- Audio in/out: Yes
Features
- Operating system installed: Windows 10 IoT Enterprise
Design
- Chassis type: Tower
- LED indicators: Yes
- On/off switch: Yes
Power
- Power supply: 500 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
Weight & dimensions
- Width: 169 mm
- Depth: 301 mm
- Height: 367 mm
- Weight: 6.6 kg
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 20 - 80%
Packaging content
- Cables included: AC
