Description

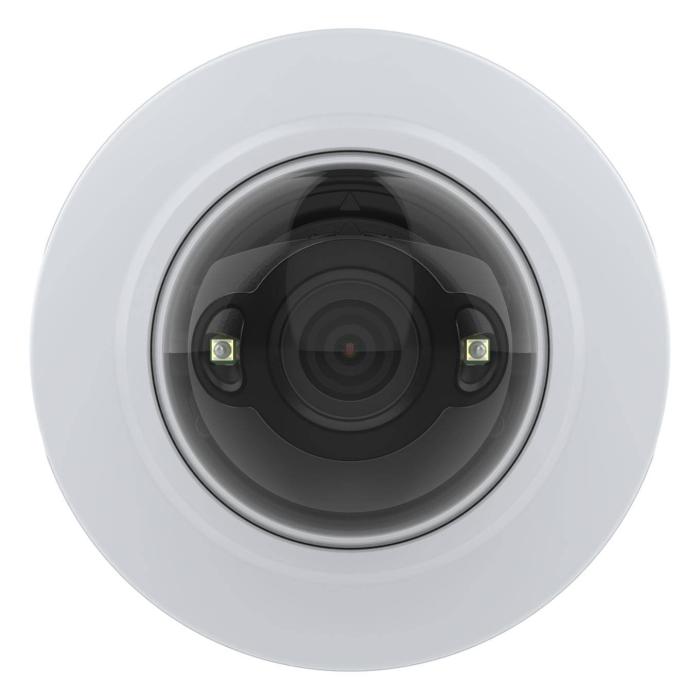

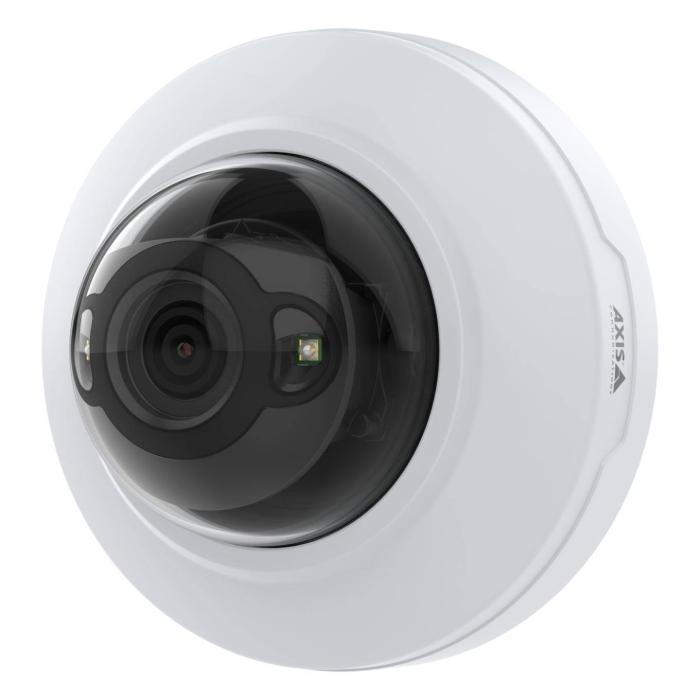

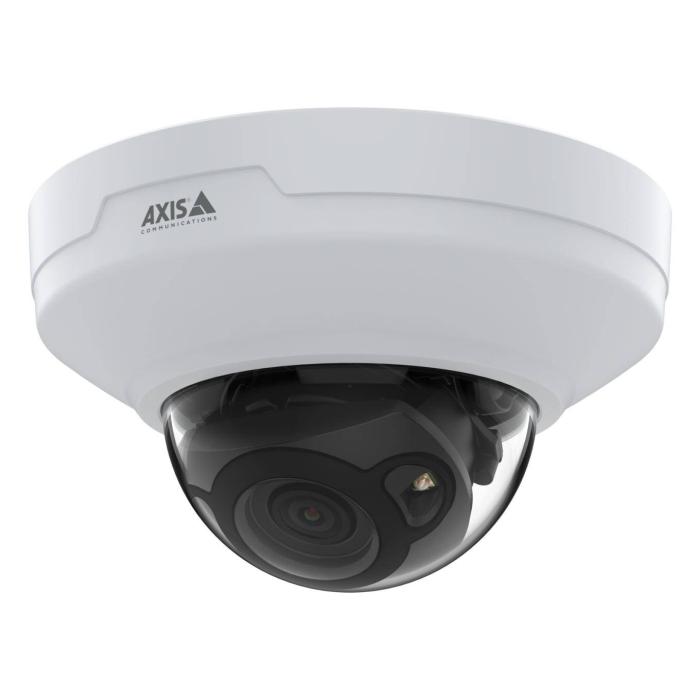

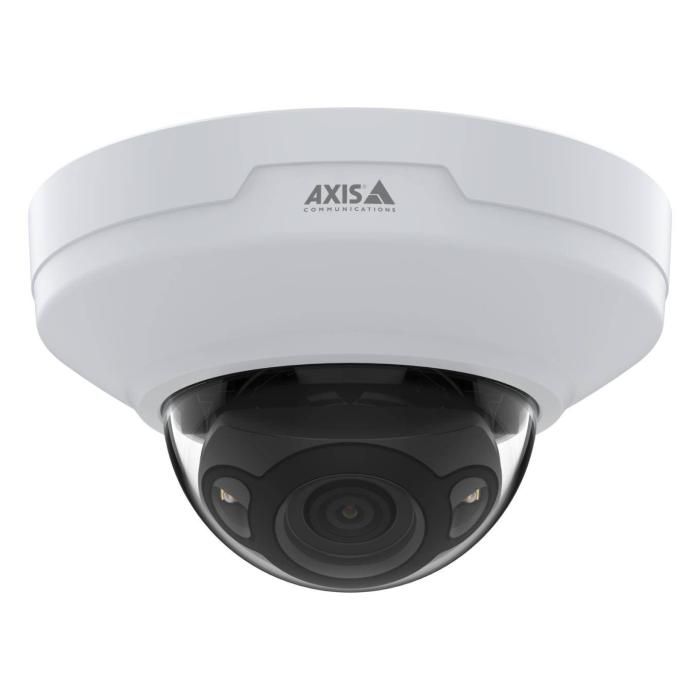

The white Axis 02677-001 surveillance camera, in its cushion-shaped form factor, mounts on the ceiling or wall to provide indoor IP surveillance with a resolution of 1920 x 1080 pixels. It incorporates an infrared cut-off filter and day/night mode to adapt to varying light conditions, as well as wide dynamic range (WDR) to enhance visibility in scenes with pronounced contrasts. Its digital PTZ control allows a pan range of -180 to 180 degrees and a tilt angle of -40 to 65 degrees, manageable from the interface that supports 19 languages.
Specifications
Performance
- PTZ control: Yes
- PTZ modes: Digital PTZ
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Built-in processor: Yes
- Number of languages: 19
- Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Rus
- Certification: CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Aluminium, Polycarbonate (PC)
- International Protection (IP) code: IP42
- IK code: IK08
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.14 lx
- Angle of rotation: 105°
- Lens viewing angle, horizontal: 93 - 47°
- Lens viewing angle, vertical: 50 - 26°
- Tilt angle range: -40 - 65°
- Pan range: -180 - 180°
- Camera shutter speed: 1/25000 - 1/5 s
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Maximum aperture number: 2.6
- Minimum aperture number: 1.7
Night vision
- Night vision: No
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video compression formats: H.264, H.265, M-JPEG
- Video recording: Yes
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Privacy masking: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 512 MB
- Internal memory: 1024 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Mirror: Yes
- Pixel counter: Yes
- Digest authentication: Yes
- Network access storage (NAS): Yes
Power
- Power source type: PoE
- Power consumption (max): 9.5 W
- Power consumption (Power over Ethernet (PoE)): 4.8 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -30 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Height: 71 mm
- Diameter: 12 cm
- Weight: 366 g
Packaging content
- Number of cameras: 1
- Manual: Yes
- Packaging content: Owner authentication key, virtual client license for H.264/H.265
