Description

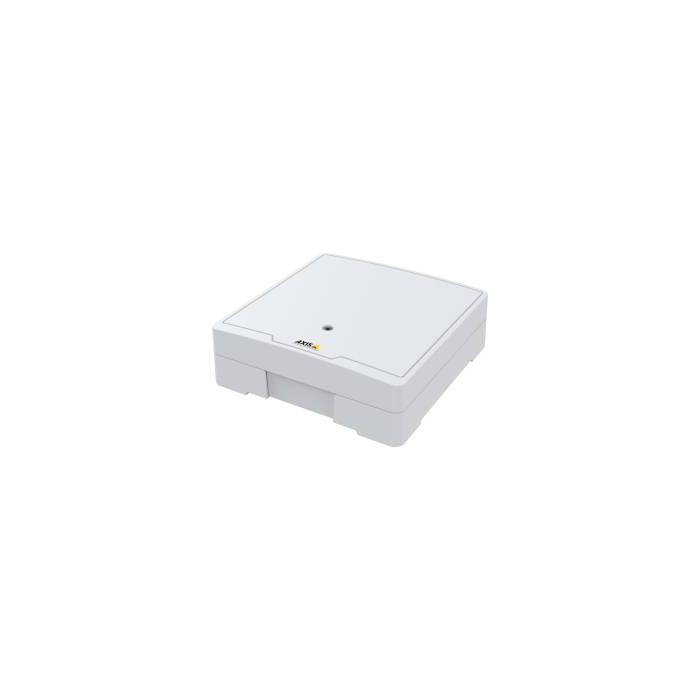

The Axis 02653-001 controller manages up to two doors in residential environments, with an RJ-45 and RS-485 interface for integration into 10 or 100 Mbit/s Ethernet networks. It includes two relay inputs and two supported Wiegand readers, with 2 GB of internal flash storage for configurations and logs. It operates with a DC voltage range of 10.5 to 28 V and tolerates temperatures between -40 and 55 °C, as well as relative humidity from 20 to 85%. Its compact design, 60 mm in height, facilitates installation in cabinets or surface-mounted boxes.
Specifications
Technical details
- Case design: Housing
- Maximum number of doors: 2 door(s)
- Built-in UPS: No
- Interface: RJ-45 / RS-485
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSd, HTTP/2, TLSd, QoS Layer 3 DiffServ, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, S
- Relay inputs: 2
Performance
- Internal storage capacity: 2 GB
- Storage media: Flash
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100 Mbit/s
- Wiegand interface: Yes
- Number of Wiegand readers supported: 2
- Certification: EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, I
Power
- DC voltage range: 10.5 - 28 V
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- RS-485 ports: 1
Operational conditions
- Operating temperature (T-T): -40 - 55 °C
- Storage temperature (T-T): -40 - 55 °C
- Operating relative humidity (H-H): 20 - 85%
Weight & dimensions
- Width: 175 mm
- Depth: 175 mm
- Height: 60 mm
- Weight: 1.2 kg
