Description

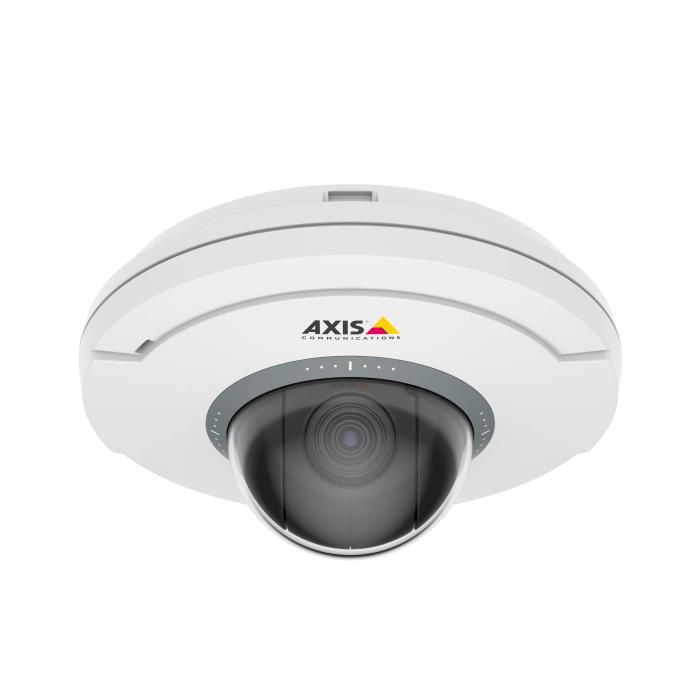

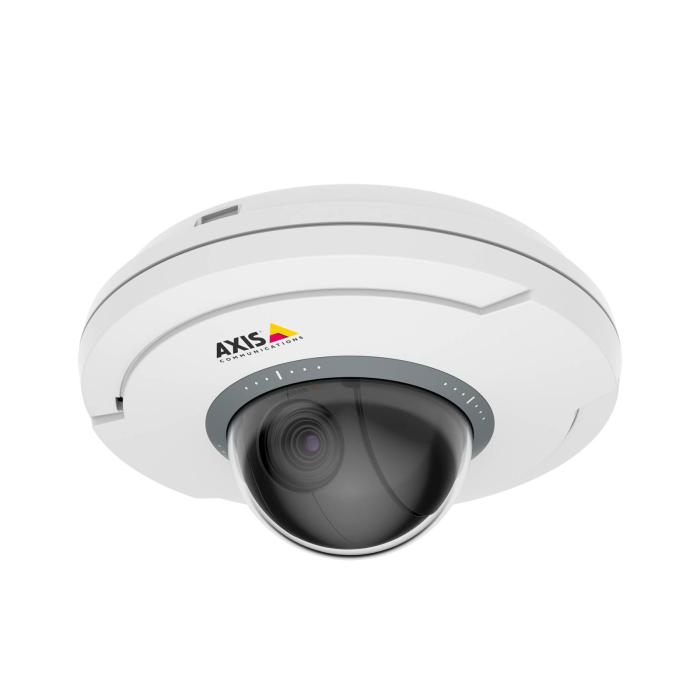

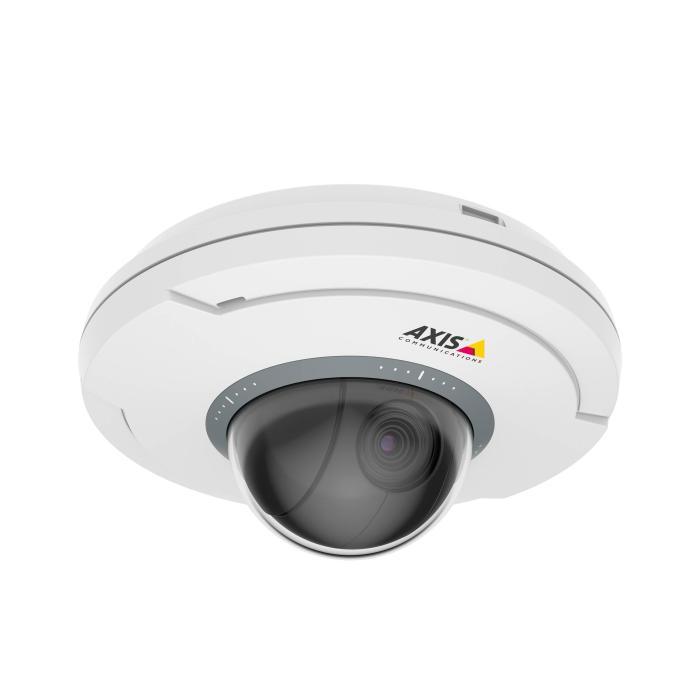

Axis 02345-001 security camera, in a compact format, offers indoor IP video surveillance with native resolution of 1280 x 720 pixels and mounts on both ceiling and wall. Its ARTPEC-7 processor manages day/night mode and digital PTZ control, allowing lens pan and tilt via the tray at a speed of 100°/s. The housing, made of white PVC, has IP51 protection against dust and light moisture, and connectivity is wired, with a minimum illumination of 0.1 lx for recording in low-light conditions. This model includes PTZ control and tilt adjustment from 0 to 90 degrees, with support for 12 languages in its interface.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
- PTZ control: Yes
- PTZ modes: Digital PTZ
- Day/night mode: Yes
- Processor model: ARTPEC-7
- Number of languages: 12
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russia
- Certification: EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Polyvinyl chloride (PVC)
- International Protection (IP) code: IP51
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.1 lx
- Tilt angle range: 0 - 90°
- Tilt speed: 100 °/sec
- Pan range: -179 - 179°
- Pan speed: 100 °/sec
- Camera shutter speed: 1/17000 - 2 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 5x
- Digital zoom: 12x
- Number of lenses: 1
- Focal length range: 2.2 - 11.0 mm
- Auto focus: Yes
Video
- Maximum resolution: 1280 x 720 pixels
- Total megapixels: 1 MP
- Video formats supported: M-JPEG
- Video compression formats: H.264, H.265
- Supported video modes: 720p
- Video recording: Yes
- Frame rate: 60 fps
- Video streaming: Yes
- Privacy masking: Yes
- Bit rate: Configurable bit rate
- Digital Wide Dynamic Range (DWDR): Yes
Audio
- Audio system: 1-way
- Audio formats supported: AAC-LC, ADPCM, LPCM, OPUS, PCM
- Built-in microphone: Yes
- Audio detection: Yes
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3af
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Flash memory: 512 MB
- Internal memory: 1024 MB
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Security algorithms: EAP-TLS, HTTPS, SNMP
- HTTPS encryption: Yes
- Alert notification type: E-mail
Power
- Power source type: PoE
- Power consumption (typical): 4.2 W
- Power consumption (max): 9.3 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Diameter: 13 cm
- Length: 63 mm
- Weight: 380 g
Packaging content
- Number of cameras: 1
- Mounting kit: Yes
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85258900
