Description

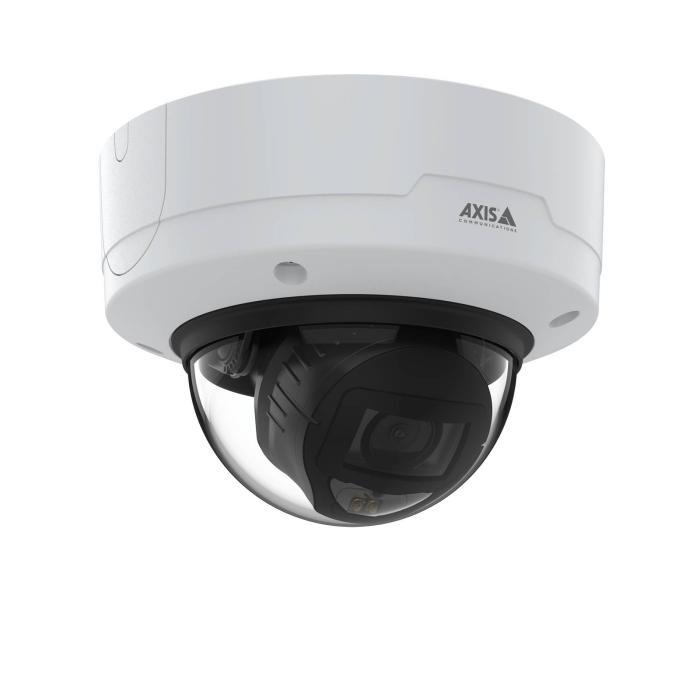

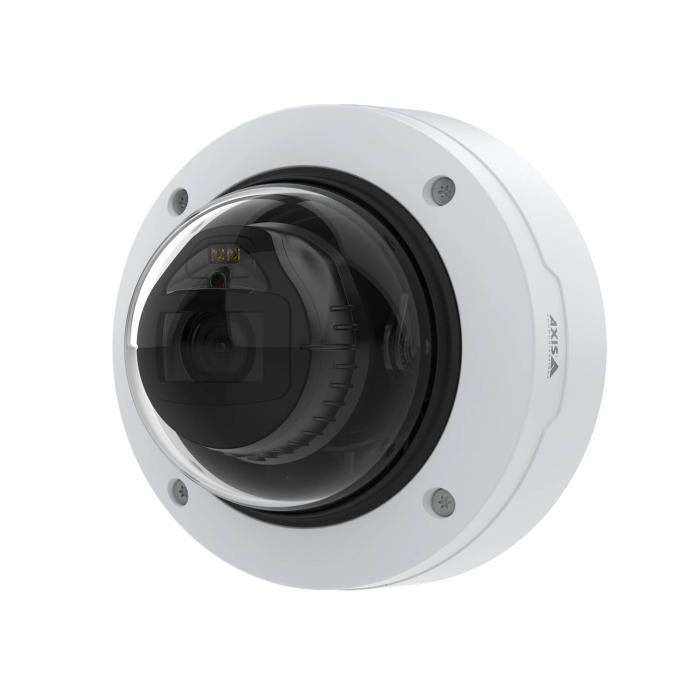

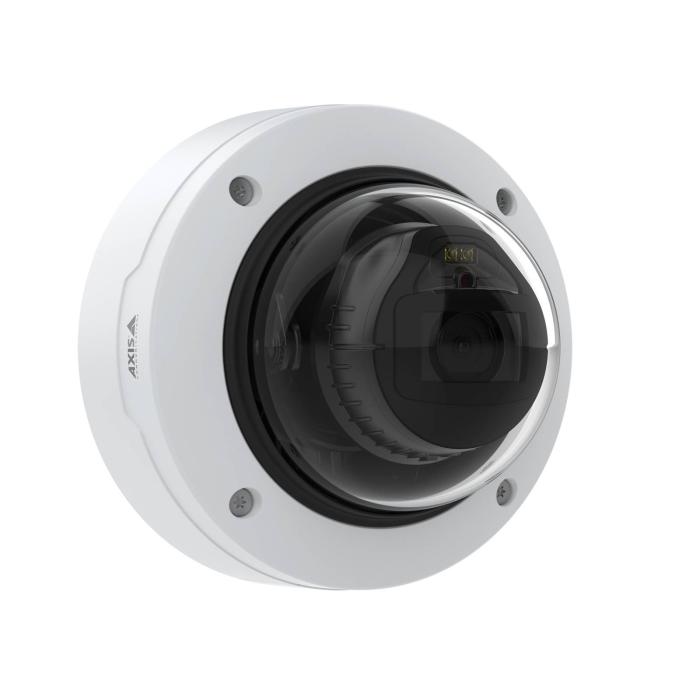

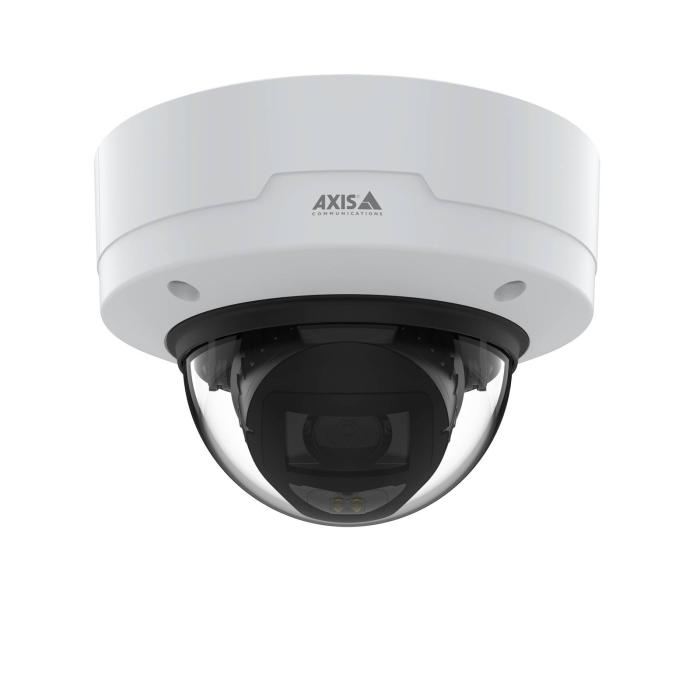

The Axis 02331-001 security camera, in a dome format with a white finish, is designed for ceiling or wall installation with adjustable orientation via its tilt angle of -10 to 80° and 190° rotation. With 3840 x 2160 pixel resolution, it offers wide dynamic range (WDR) and day/night mode with an infrared cut-off filter to adapt to different lighting conditions. Its PTZ control is digital, allowing remote pan and tilt of the camera, and its polycarbonate housing has IK10 and IP52 protection against impacts and dust. Connection is wired, and its operation is managed in 12 languages to facilitate setup in indoor environments.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
- PTZ modes: Digital PTZ
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Number of languages: 12
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russia
- Certification: EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, I
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- Housing material: Polycarbonate (PC)
- International Protection (IP) code: IP52
- IK code: IK10
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.14 lx
- Angle of rotation: 190°
- Tilt angle range: -10 - 80°
- Pan range: -190 - 190°
- Camera shutter speed: 1/8500 - 1/5 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Focal length range: 4.3–8.6
Night vision
- Night vision: Yes
- Night vision distance: 40 m
- LED type: IR
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 3840 x 2160 pixels
- Total megapixels: 8 MP
- Video compression formats: H.264, H.265
- Video recording: Yes
- Frame rate: 30 fps
- Video streaming: Yes
- Gain control type: Auto
- Flip & mirror: Yes
- Privacy masking: Yes
- Text caption overlay: Yes
- Bit rate control: Variable Bit Rate (VBR)
Audio
- Audio formats supported: AAC-LC, ADPCM, G.711, G.726, OPUS, PCM
- Audio detection: Yes
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD
- Flash memory: 8192 MB
- Internal memory: 2048 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Terminal block port: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Security algorithms: 256-bit AES-XTS, EAP-TLS
- HTTPS encryption: Yes
- Alert notification type: E-mail
- Pixel counter: Yes
- Digest authentication: Yes
Power
- Power source type: PoE
- Power consumption (typical): 5.5 W
- Power consumption (max): 10 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Height: 107 mm
- Diameter: 14.9 cm
- Weight: 800 g
Packaging content
- Number of cameras: 1
Other features
- Doesn't contain: BFR, PVC
