Description

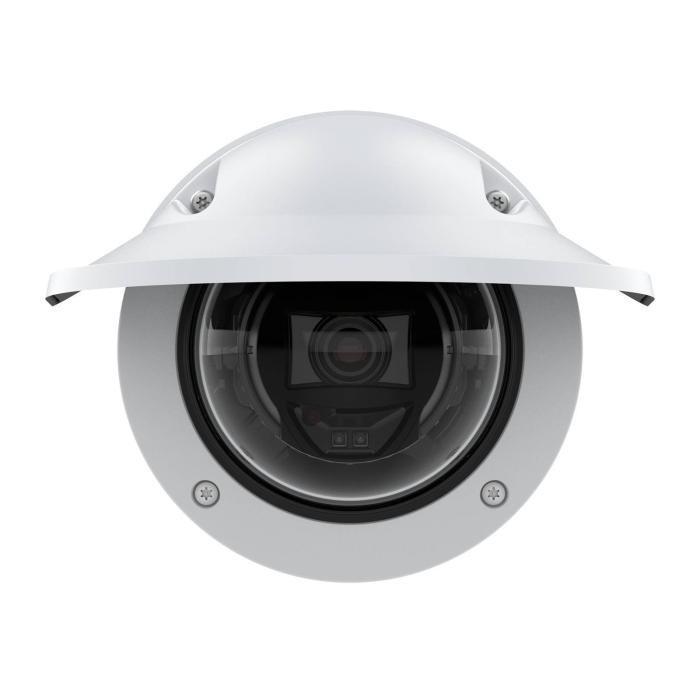

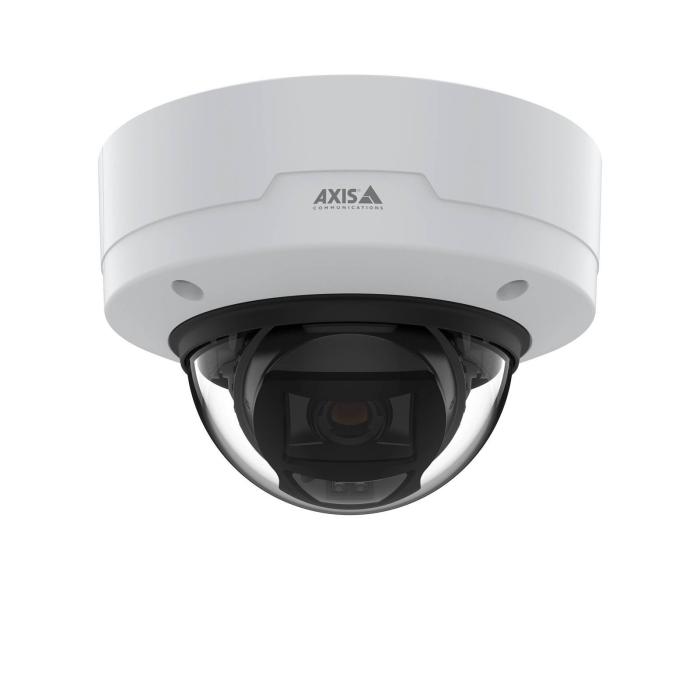

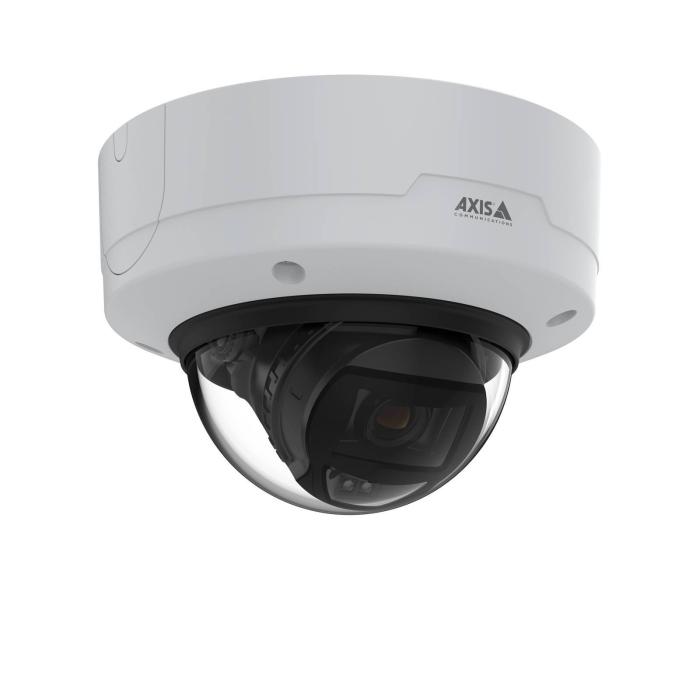

The Axis 02328-001 is an outdoor IP security camera with a cushion-style form factor, designed for ceiling or wall mounting, and finished in white. It offers a resolution of 1920 x 1080 pixels, features day/night mode with infrared cut filter and wide dynamic range (WDR) to adapt to varying light conditions. Its connectivity is wired, with pan-tilt control and digital PTZ modes, featuring a tilt angle from -75 to 75 degrees. The polycarbonate housing is durable, with IP66 certification and IK10 rating, and includes LED indicators and support for 12 languages.
Specifications
Performance
- Type: IP security camera
- Placement supported: Outdoor
- Connectivity technology: Wired
- PTZ modes: Digital PTZ
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Number of languages: 12
- Languages support: Simplified Chinese, Traditional Chinese, German, English, French, Italian, Korean, Portuguese, Russian
- Certification: EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, I
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- LED indicators: Yes
- Housing material: Polycarbonate (PC)
- International Protection (IP) code: IP66
- IK code: IK10
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0 lx
- Angle of rotation: 175°
- Tilt angle range: -75 - 75°
- Pan range: -180 - 180°
- Camera shutter speed: 1/66500 - 2 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Number of lenses: 1
- Focal length range: 3.4 – 8.9
- Normal focusing range: 0.5 m
Night vision
- Night vision: Yes
- Night vision distance: 40 m
- LED type: IR
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 1920 x 1080 pixels
- Total megapixels: 2 MP
- Video compression formats: H.264
- Video recording: Yes
- Frame rate: 30 fps
- Video streaming: Yes
- Gain control type: Auto
- Flip & mirror: Yes
- Privacy masking: Yes
- Text caption overlay: Yes
- Bit rate: Configurable bit rate
- Smart IR: Yes
Audio
- Audio system full duplex: Yes
- Audio detection: Yes
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UP
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Flash memory: 8192 MB
- Internal memory: 1024 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Terminal block port: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
- Alert notification type: E-mail, Text alert message
Power
- Power source type: PoE
- Power consumption (typical): 4.8 W
- Power consumption (max): 10.7 W
Operational conditions
- Operating temperature (T-T): -40 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 100%
- Storage relative humidity (H-H): 5 - 95%
System requirements
- Windows operating systems supported: Yes
Weight & dimensions
- Height: 104 mm
- Diameter: 14.9 cm
- Weight: 800 g
Packaging content
- Number of cameras: 1
Logistics data
- Harmonized System (HS) code: 85258900
