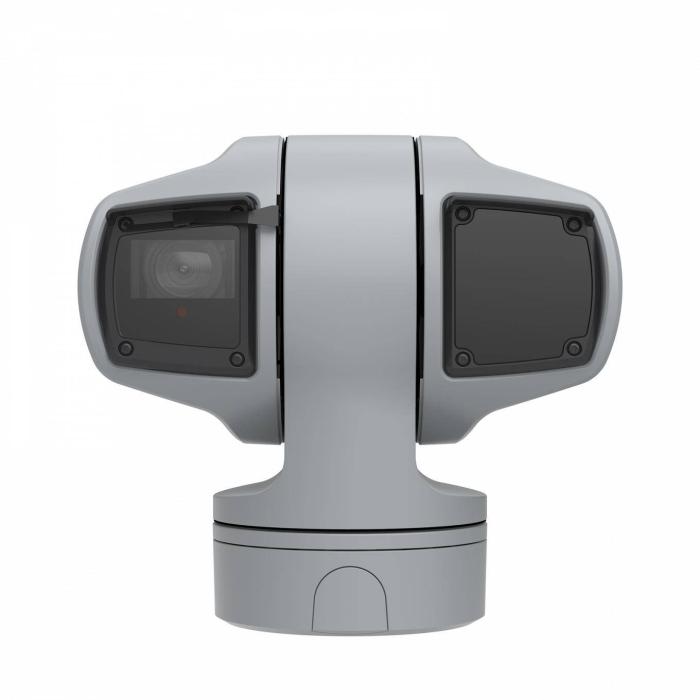

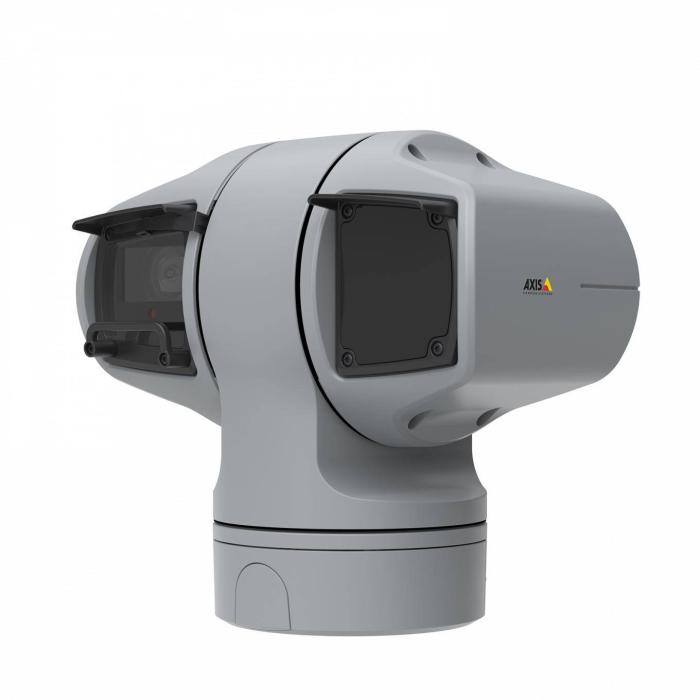

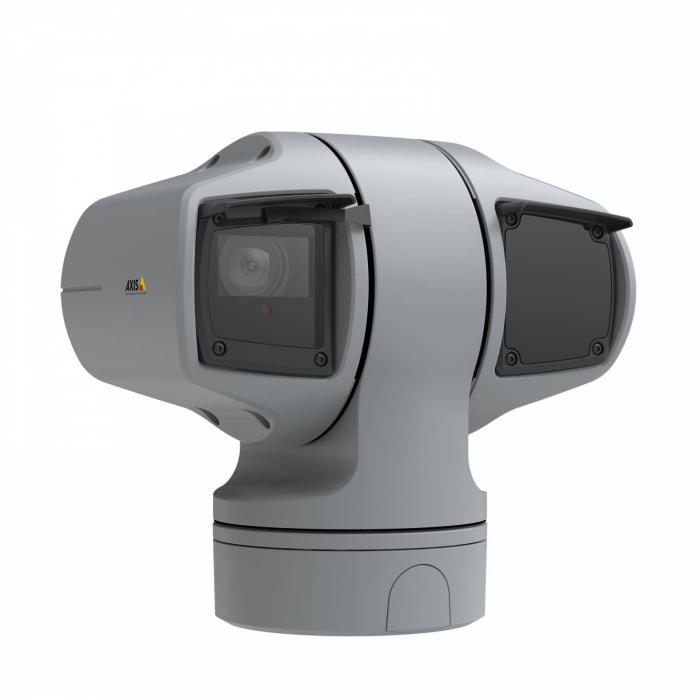

Axis 02316-002 security camera Box IP security camera Outdoor 1920 x 1080 pixels Wall

Not avaliable

More info

Brand: AXIS
SKU: 116363 PRC: 449418 EAN: 7331021075856 PN: 02316-002

Description

Specifications

Performance

  • Type: IP security camera
  • Placement supported: Outdoor
  • Connectivity technology: Wired
  • PTZ control: Yes
  • Auto-tracking: Yes
  • Tour recording: Yes
  • Wide Dynamic Range (WDR): Yes
  • Day/night mode: Yes
  • Infrared (IR) cut-off filter: Yes
  • Processor model: ARTPEC-7
  • Built-in processor: Yes
  • Number of languages: 18
  • Languages support: Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Por
  • Certification: EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, I

Design

  • Form factor: Box
  • Mounting type: Wall
  • Product colour: Grey
  • Housing material: Aluminium
  • International Protection (IP) code: IP66, IP68
  • IK code: IK10

Camera

  • Camera pan control: Yes
  • Camera tilt control: Yes
  • Minimum illumination: 0.05 lx
  • Lens viewing angle, horizontal: 63.8°
  • Lens viewing angle, vertical: 37°
  • Tilt angle range: -90 - 90°
  • Tilt speed: 150 °/sec
  • Pan speed: 150 °/sec
  • Camera shutter speed: 1/111000 - 1/2 s

Image sensor

  • Optical sensor size: 25.4 / 2 mm (1 / 2")
  • Progressive scan: Yes
  • Sensor type: CMOS

Lens system

  • Zoom capability: Yes
  • Optical zoom: 31x
  • Digital zoom: 12x
  • Focal length range: 6.91 - 214.64 mm
  • Auto focus: Yes
  • Maximum aperture number: 4.6
  • Minimum aperture number: 1.36

Night vision

  • Night vision: Yes
  • Night vision distance: 400 m
  • LED type: IR
  • Infra-red wavelength: 850 nm

Video

  • Maximum resolution: 1920 x 1080 pixels
  • Video compression formats: H.264, H.265, M-JPEG
  • Video recording: Yes
  • Frame rate: 50 fps
  • Video streaming: Yes
  • Privacy masking: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Networking standards: IEEE 802.1x, IEEE 802.3bt
  • Supported network protocols: IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP
  • Wi-Fi: No
  • Bluetooth: No
  • Quality of Service (QoS) support: Yes

Storage

  • Built-in HDD: No
  • Card reader integrated: Yes
  • Compatible memory cards: SD, SDHC, SDXC
  • Flash memory: 512 MB
  • Internal memory: 1024 MB

Ports & interfaces

  • Ethernet LAN (RJ-45) ports: 1

Security

  • Password protection: Yes
  • Video motion detection: Yes
  • IP address filtering: Yes
  • HTTPS encryption: Yes
  • Pixel counter: Yes
  • Digest authentication: Yes
  • Network access storage (NAS): Yes

Power

  • Power source type: PoE
  • AC input voltage: 100 - 240 V
  • Power consumption (typical): 25 W
  • Power consumption (max): 71 W

Operational conditions

  • Operating temperature (T-T): -50 - 55 °C
  • Storage temperature (T-T): -40 - 65 °C
  • Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

  • Width: 313 mm
  • Depth: 210 mm
  • Height: 330 mm
  • Weight: 8.7 kg

Packaging content

  • Number of cameras: 1
  • Cables included: LAN (RJ-45)
  • Manual: Yes
  • Packaging content: Windows decoder 1-user license, IK10 bumper, High PoE Midspan 1-port
