Description

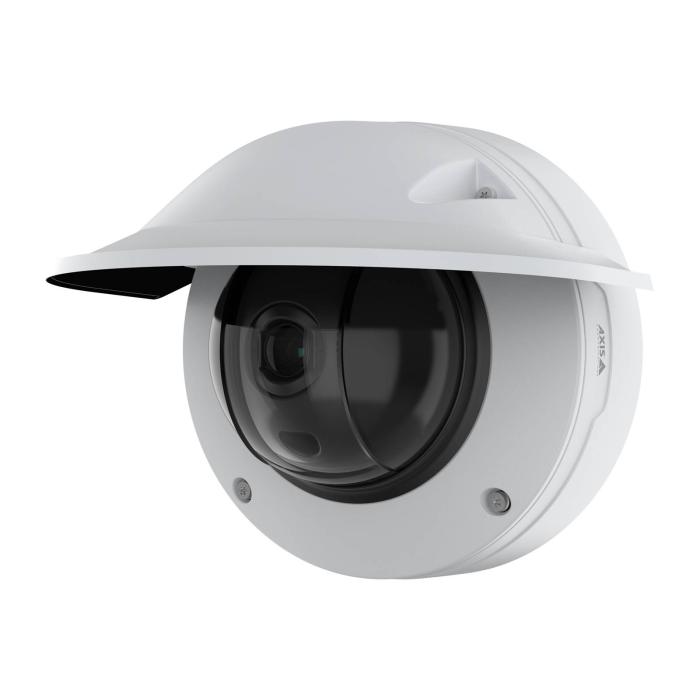

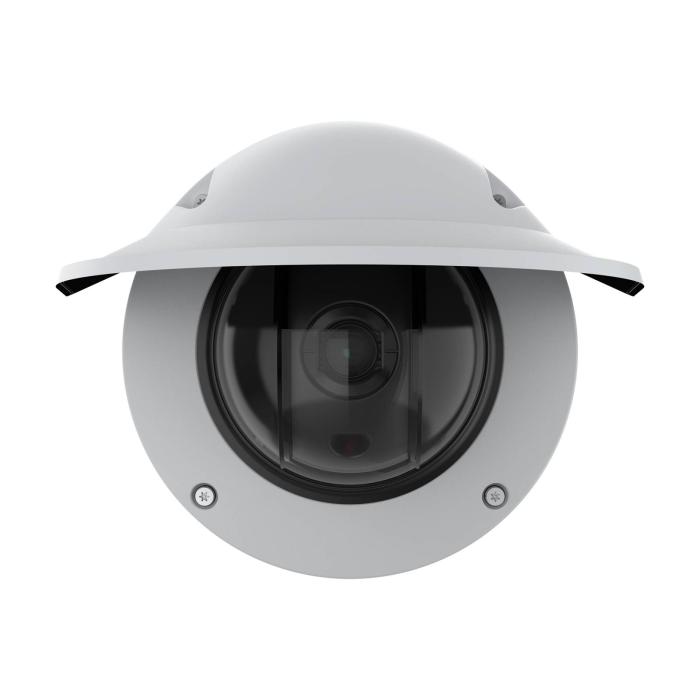

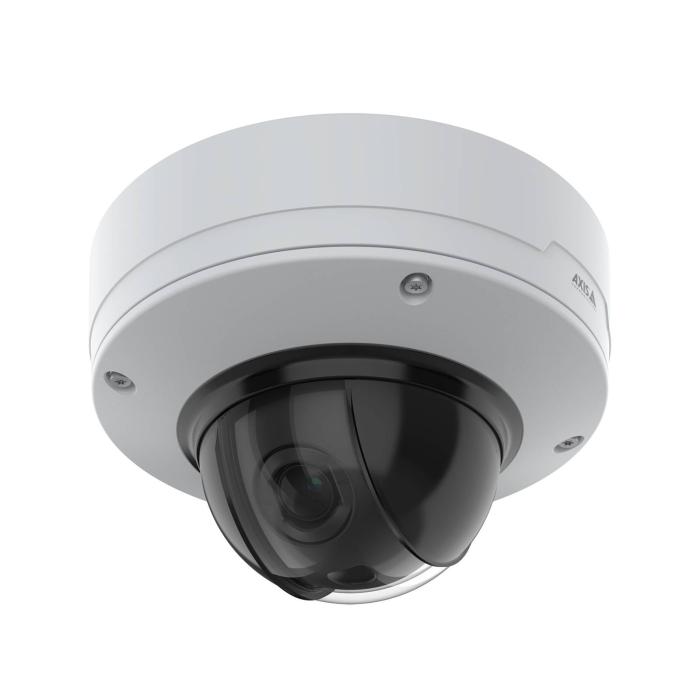

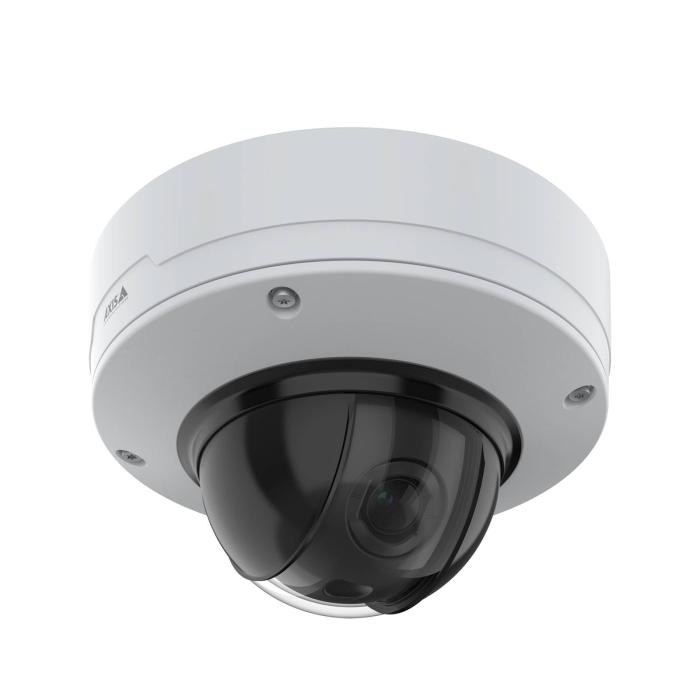

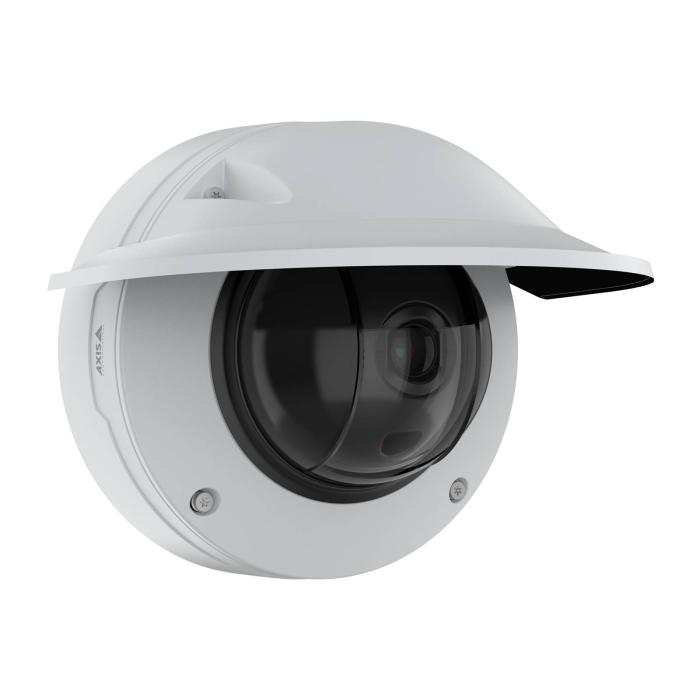

The Axis 02224-001 security camera, a white pad form factor model, offers a resolution of 2688 x 1512 pixels and is designed for ceiling or wall mounting, both indoors and outdoors. It features day/night mode, an infrared cut-off filter, wide dynamic range (WDR), and digital PTZ control with a rotation angle of 175° and a tilt range of -43 to 80°. Connectivity is via cable, and its robust housing complies with IK10+ and IP66 codes, protecting against impacts and adverse weather conditions. A minimum illumination of 0.08 lx allows image capture in low-light environments, while its interface supports 12 languages for accessible configuration.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- PTZ modes: Digital PTZ
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Number of languages: 12
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russia
- Certification: CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: White
- International Protection (IP) code: IP66
- IK code: IK10+
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.08 lx
- Angle of rotation: 175°
- Tilt angle range: -43 - 80°
- Camera shutter speed: 1/91000 - 1 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 2.6x
- Number of lenses: 1
Night vision
- Night vision: Yes
- LED type: IR
Video
- Maximum resolution: 2688 x 1512 pixels
- Total megapixels: 4 MP
- Video compression formats: H.264, H.265
- Video recording: Yes
- Frame rate: 60 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Privacy masking: Yes
- Bit rate control: Variable Bit Rate (VBR)
Audio
- Audio formats supported: AAC-LC, ADPCM, G.711, G.726, OPUS, PCM
- Built-in microphone: Yes
- Audio detection: Yes
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3at
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 8194 MB
- Internal memory: 2048 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Security algorithms: 802.1x RADIUS
- HTTPS encryption: Yes
- Alert notification type: E-mail
- Pixel counter: Yes
- Digest authentication: Yes
Power
- Power source type: PoE
- Power consumption (typical): 9 W
- Power consumption (max): 23 W
Operational conditions
- Operating temperature (T-T): -50 - 60 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 100%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Diameter: 18.4 cm
- Weight: 2.1 kg
Packaging content
- Number of cameras: 1
- Mounting kit: Yes
- Mounting brackets included: Yes
- Drilling template included: Yes
- Manual: Yes
