Description

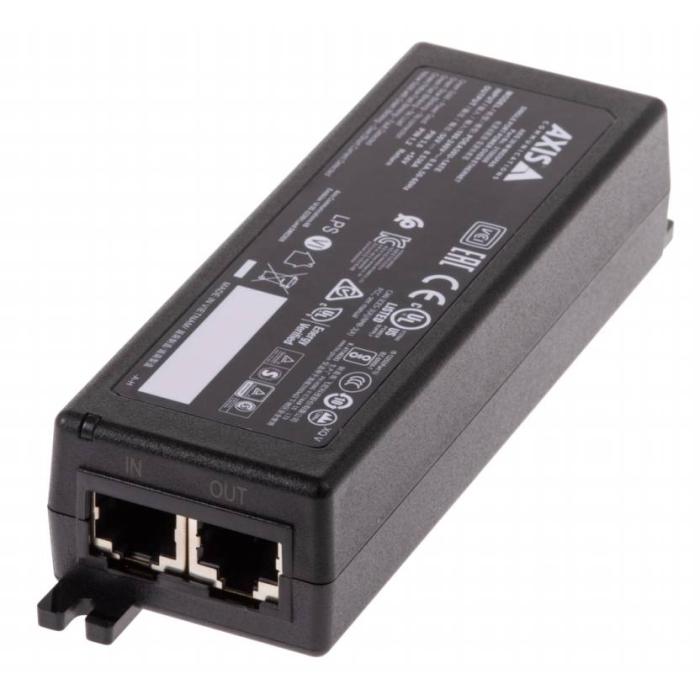

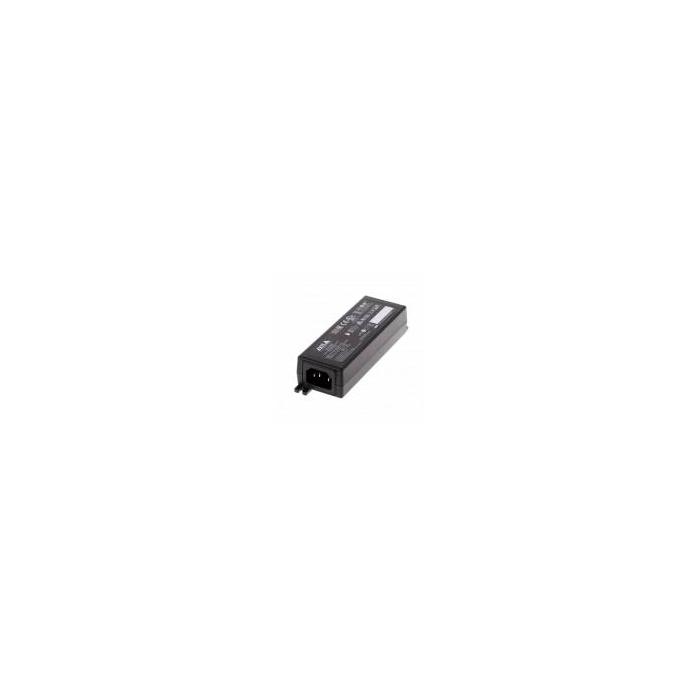

Axis 02172-002 black midspan is designed to supply power and Ethernet connection to Axis-compatible security cameras, with a nominal power of 30 W and output voltage of 56 V. Its halogen-free, PVC-free plastic housing includes LED indicators and supports an operating temperature range of -20 to 40 °C, with relative humidity from -40 to 75%. Measuring 46 mm in width, 30 mm in height and 140.1 mm in depth, and weighing 145 g, it mounts easily in homes. The product is powered with an input of 100-240 V and frequency of 47-63 Hz, and includes a quick installation guide in the packaging.
Specifications
Features
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
- Certification: IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
- Type: Midspan
- Brand compatibility: Axis
- Compatibility: M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M10
Ports & interfaces
- Ethernet LAN: Yes
Power
- Rated power: 30 W
- Input voltage: 100-240 V
- Input frequency: 47-63 Hz
- Output voltage: 56 V
Weight & dimensions
- Width: 46 mm
- Depth: 140.1 mm
- Height: 30 mm
- Weight: 145 g
Packaging content
- Quick installation guide: Yes
Operational conditions
- Operating temperature (T-T): -20 - 40 °C
- Operating relative humidity (H-H): -40 - 75%
Technical details
- Doesn't contain: Halogen, PVC
Logistics data
- Harmonized System (HS) code: 85299020
