Description

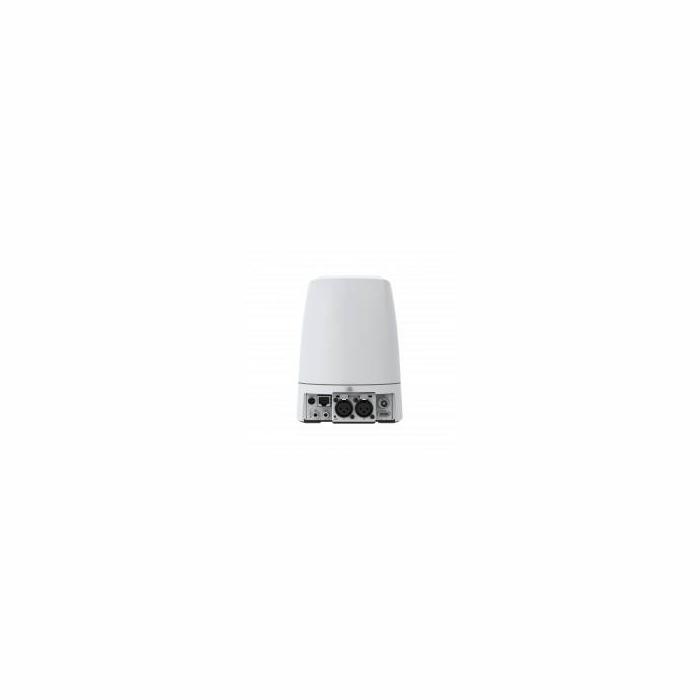

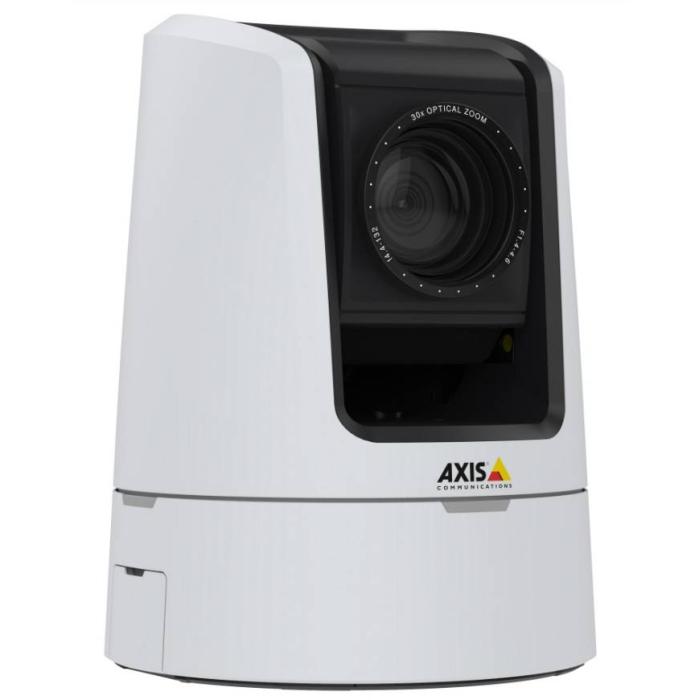

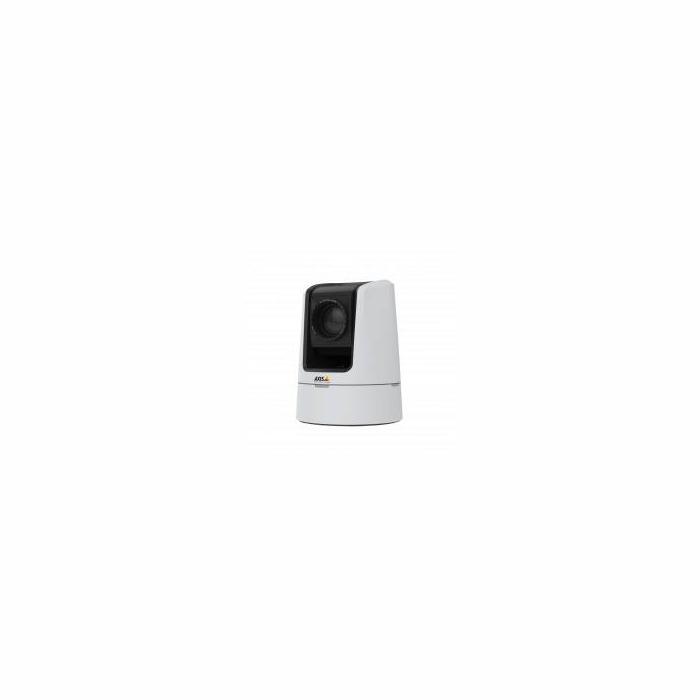

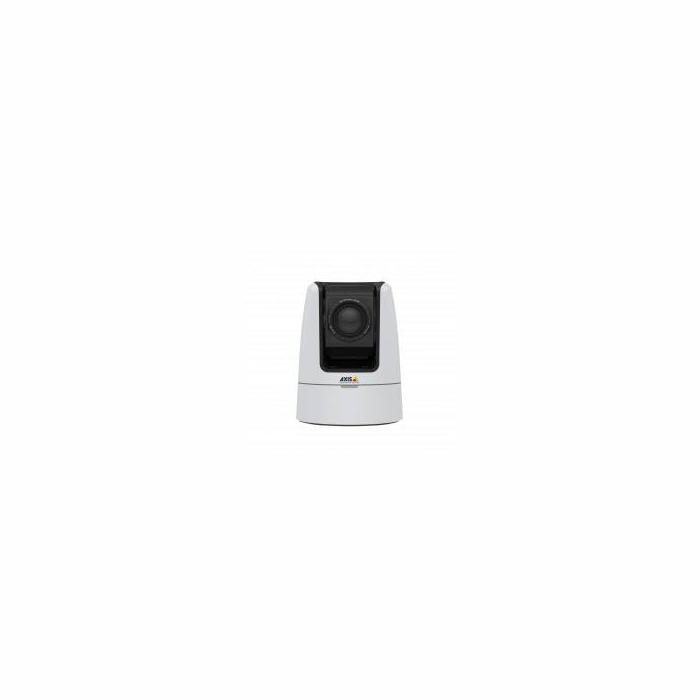

The Axis 01965-002 IP security camera with a cushion form factor offers Full HD resolution of 1920 x 1080 pixels for indoor surveillance, designed for ceiling or wall mounting with a plastic housing in a black and white finish. It features PTZ control with a pan range of -170 to 170 degrees and a tilt angle of -20 to 90 degrees, plus auto-tracking to keep moving objects within the 62-degree horizontal field of view. Day/night mode with an infrared cut-off filter ensures sharp capture in low-light conditions, while the defog function protects the lens from condensation.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
- PTZ control: Yes
- Auto-tracking: Yes
- Preset points: Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Alarm input/output: Yes
- Certification: 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(
Design
- Form factor: Dome
- Mounting type: Ceiling/wall
- Product colour: Black, White
- Housing material: Plastic
- Fog proof: Yes
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.03 lx
- Lens viewing angle, horizontal: 62°
- Lens viewing angle, vertical: 37°
- Tilt angle range: -20 - 90°
- Tilt speed: 90 °/sec
- Pan range: -170 - 170°
- Pan speed: 100 °/sec
- Camera shutter speed: 1/10000 - 1 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 30x
- Digital zoom: 12x
- Number of lenses: 1
- Focal length range: 4.4 - 132 mm
- Auto focus: Yes
- Maximum aperture number: 4.6
- Minimum aperture number: 1.4
Video
- Maximum resolution: 1920 x 1080 pixels
- Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
- Supported graphics resolutions: 160 x 90, 1920 x 1080 (HD 1080)
- Supported video modes: 1080p
- Frame rate: 60 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Saturation, Sharpness
- Text caption overlay: Yes
- Bit rate control: Variable Bit Rate (VBR)
Audio
- Audio formats supported: AAC-LC, ADPCM, LPCM
- Sample rate: 48 kHz
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Supported network protocols: IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS,
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast
Storage
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 512 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- RS-232 ports: 1
- Microphone in: Yes
- Terminal block port: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- IP address filtering: Yes
- Security algorithms: 802.1x RADIUS
- HTTPS encryption: Yes
Power
- Power source type: DC
- Power consumption (typical): 14 W
- Power consumption (max): 25 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 10 - 85%
Weight & dimensions
- Width: 136 mm
- Depth: 136 mm
- Height: 180 mm
- Weight: 1.5 kg
Packaging content
- Number of cameras: 1
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85258900
