Description

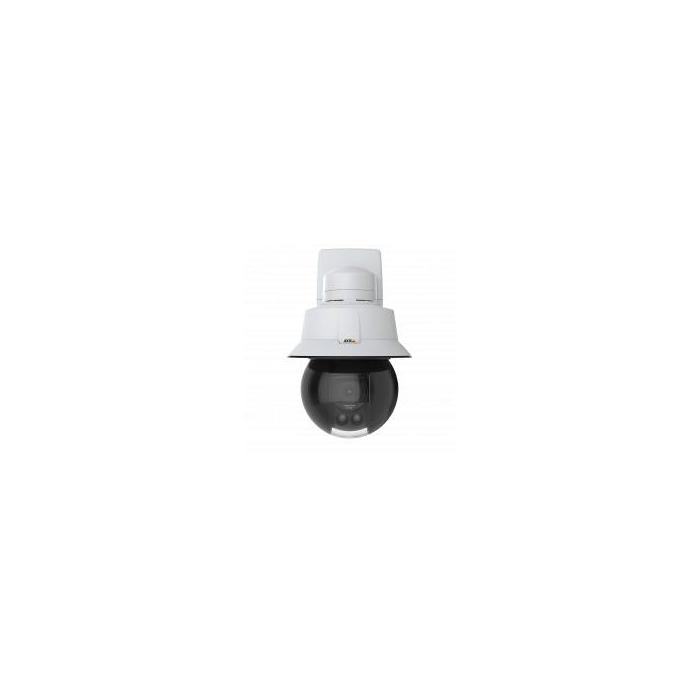

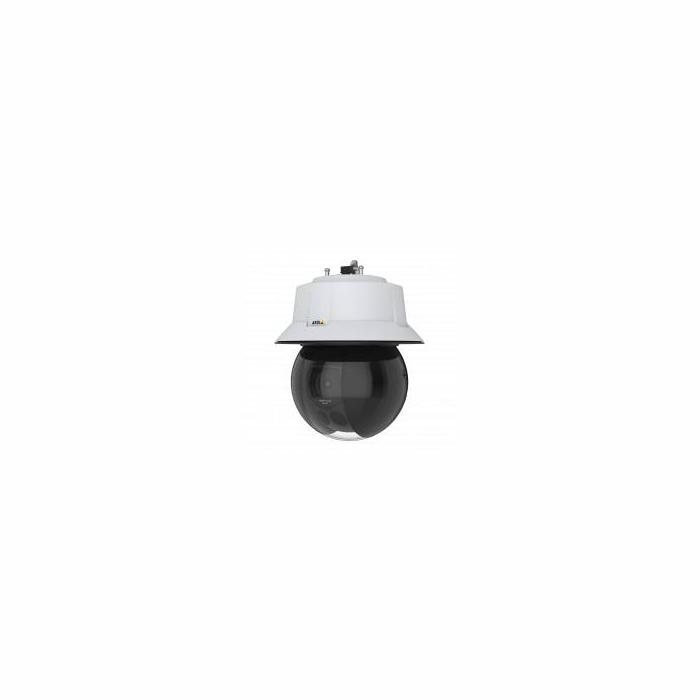

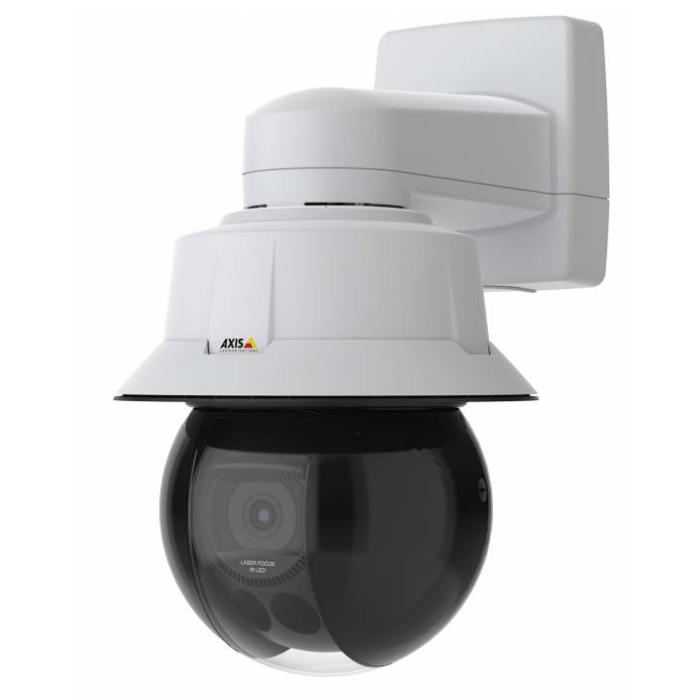

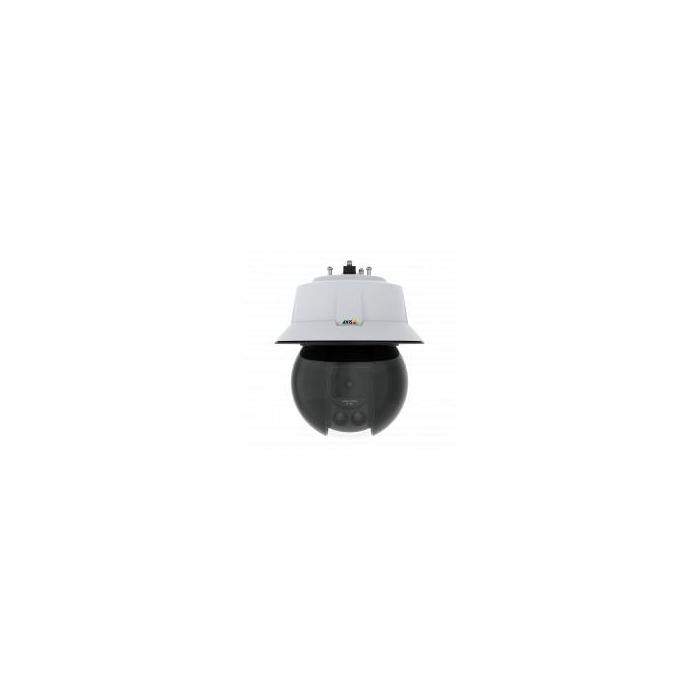

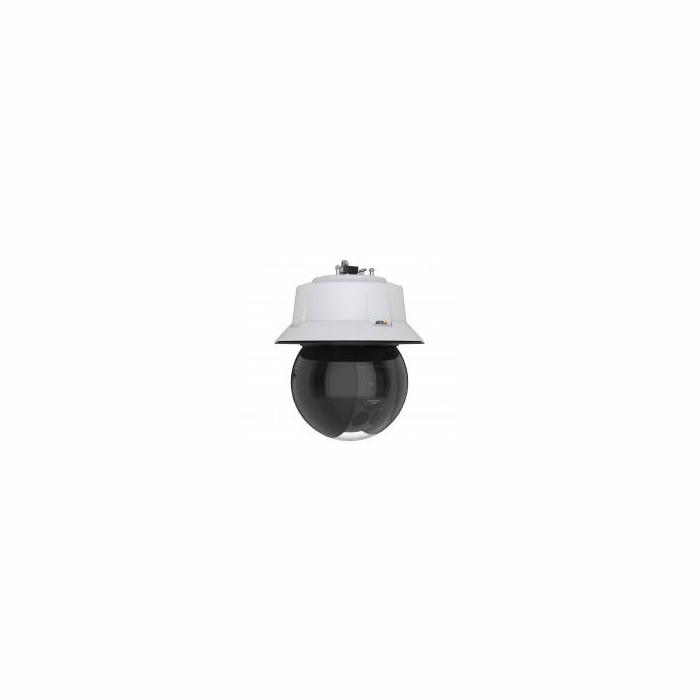

The Axis 01924-002 security camera adopts a pad form factor and mounts on the wall, available in black and white for both indoor and outdoor use. This model offers 1920 x 1080 pixel resolution with PTZ control, preset positions and recording tour for effective tracking. It incorporates infrared cut filter, day/night mode and wide dynamic range (WDR), along with fog protection and aluminium and polycarbonate housings with IP66/IP67 and IK10 certifications. Connectivity is wired, and its tilt speed reaches 550°/s with a vertical field of view of 36.5°, designed for reliable surveillance.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- Tour recording: Yes
- Preset points: Yes
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Certification: 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICE
Design
- Form factor: Dome
- Mounting type: Wall
- Product colour: Black, White
- Housing material: Aluminium, Polycarbonate (PC)
- International Protection (IP) code: IP66, IP67
- IK code: IK10
- Fog proof: Yes
Camera
- Minimum illumination: 0.001 lx
- Lens viewing angle, horizontal: 60.6°
- Lens viewing angle, vertical: 36.5°
- Tilt angle range: -90 - 20°
- Tilt speed: 550 °/sec
- Pan range: 0 - 360°
- Pan speed: 550 °/sec
- Camera shutter speed: 111000 - 1/2 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2 mm (1 / 2")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 31x
- Digital zoom: 12x
- Number of lenses: 1
- Focal length range: 6.91 - 214.64 mm
- Auto focus: Yes
- Maximum aperture number: 4.6
- Minimum aperture number: 1.36
Night vision
- Night vision: Yes
- Night vision distance: 300 m
- LED type: IR
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 1920 x 1080 pixels
- Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
- Supported graphics resolutions: 320 x 180, 1920 x 1080 (HD 1080)
- Frame rate: 60 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Colour depth, Sharpness
- Privacy masking: Yes
- Text caption overlay: Yes
- Image stabilizer: Yes
- Bit rate control: Variable Bit Rate (VBR)
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3bt
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS,
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast
Storage
- Card reader integrated: Yes
- Compatible memory cards: SD, SDHC, SDXC
- Flash memory: 512 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- IP address filtering: Yes
- Security algorithms: EAP-TLS
- HTTPS encryption: Yes
- Digest authentication: Yes
Management features
- Behavior analysis: Line crossing detection
Power
- Power source type: AC
- AC input voltage: 100-240 V
- Power consumption (typical): 17 W
- Power consumption (max): 51 W
Operational conditions
- Operating temperature (T-T): -50 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 100%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Height: 261 mm
- Diameter: 23.9 cm
- Weight: 4.8 kg
Other features
- Doesn't contain: PVC
Logistics data
- Harmonized System (HS) code: 85258900
