Description

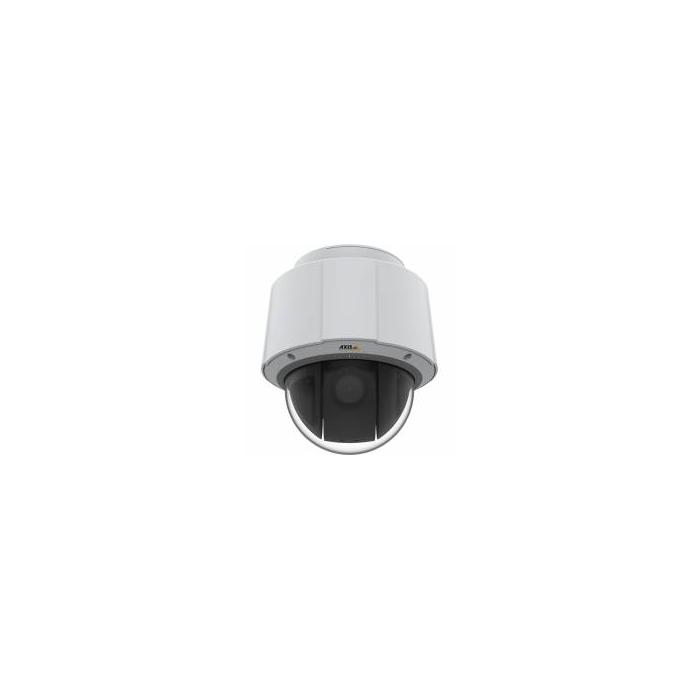

The Axis 01749-002 surveillance camera, in its dome format and white finish, is designed for ceiling installation to protect indoor spaces. This IP security model offers Full HD resolution of 1920 x 1080 pixels and features PTZ control, allowing the lens to be panned and tilted to adjust the framing. Its wired operation ensures stable signal transmission, while the day/night mode and infrared cut filter guarantee effective surveillance even in low light, with a minimum illumination of 0.03 lux. The aluminium housing and IP52 rating make it resistant to dust and splashes, and its horizontal viewing angle of 65.1° and vertical angle of 39.1° cover a specific area of the room.
Specifications
Performance
- Certification: 55032 A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
- PTZ control: Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Number of languages: 11
- Languages support: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: White
- Housing material: Aluminium
- International Protection (IP) code: IP52
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Minimum illumination: 0.03 lx
- Lens viewing angle, horizontal: 65.1°
- Lens viewing angle, vertical: 39.1°
- Tilt angle range: 0 - 180°
- Tilt speed: 450 °/sec
- Pan range: 0 - 360°
- Pan speed: 450 °/sec
- Camera shutter speed: 1/11000 - 1/3 s
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 40x
- Digital zoom: 12x
- Number of lenses: 1
- Focal length range: 4.25 - 170 mm
- Auto focus: Yes
- Maximum aperture number: 4.95
- Minimum aperture number: 1.6
Video
- Maximum resolution: 1920 x 1080 pixels
- Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
- Bit rate control: Variable Bit Rate (VBR)
Audio
- Audio formats supported: AAC
- Voice codecs: G.711, G.726, PCM
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (M
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: SD, SDHC, SDXC
- Flash memory: 512 MB
- Internal memory: 1024 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- Video motion detection: Yes
- IP address filtering: Yes
- Security algorithms: EAP-TLS
- HTTPS encryption: Yes
Power
- Power source type: AC, PoE
- AC input voltage: 100 - 240 V
- Power consumption (max): 22.4 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
Weight & dimensions
- Height: 240 mm
- Diameter: 19.8 cm
- Weight: 2.85 kg
Packaging content
- Number of cameras: 1
Logistics data
- Harmonized System (HS) code: 85258900
