Description

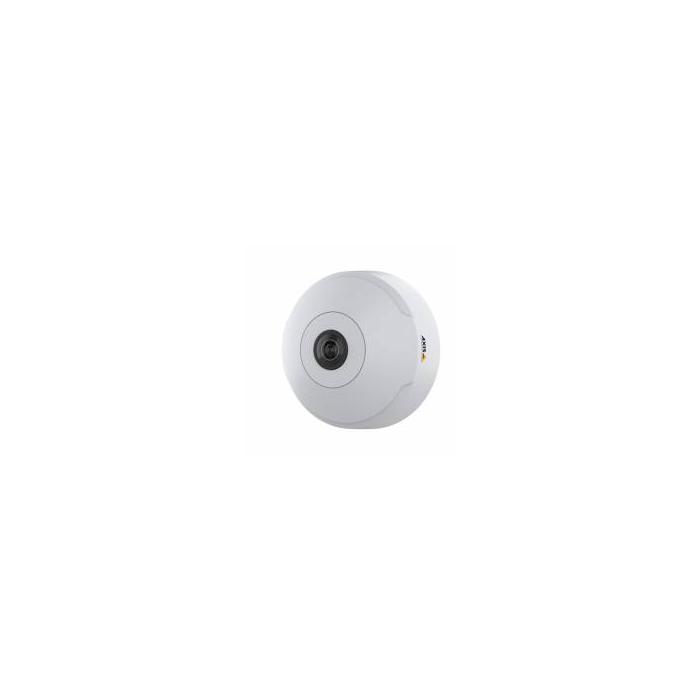

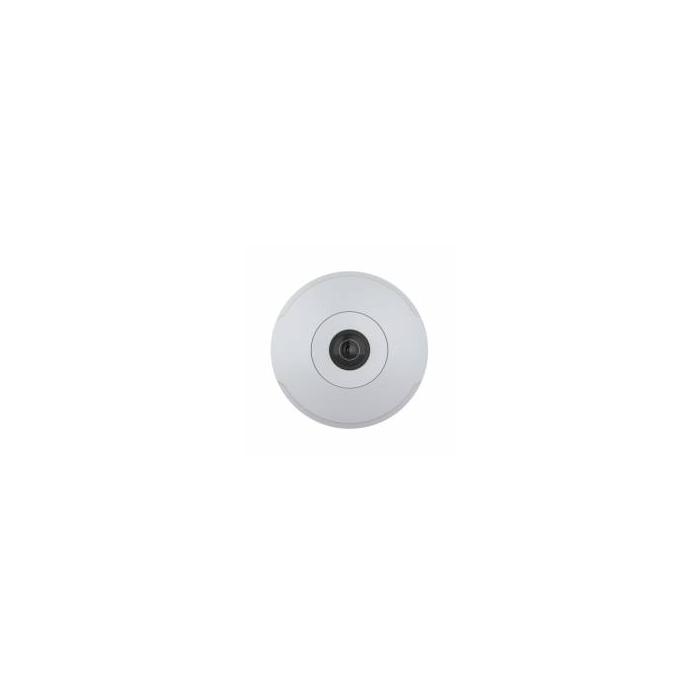

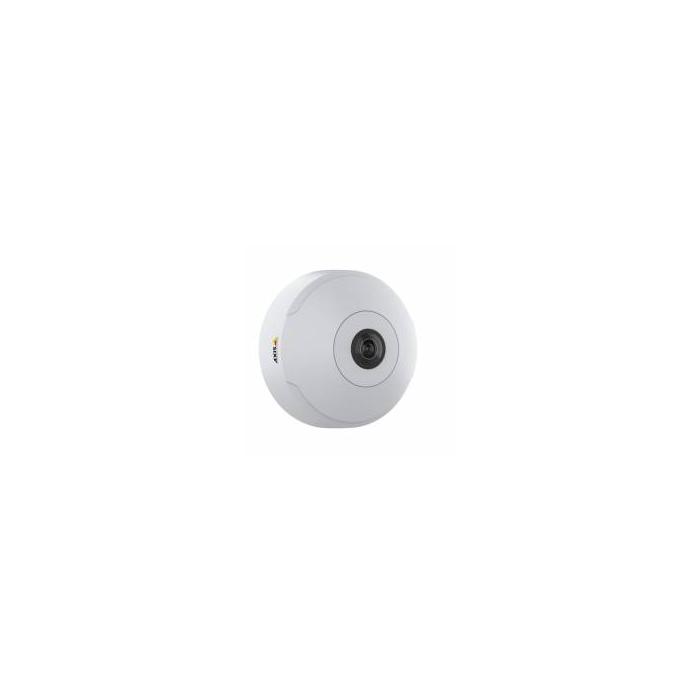

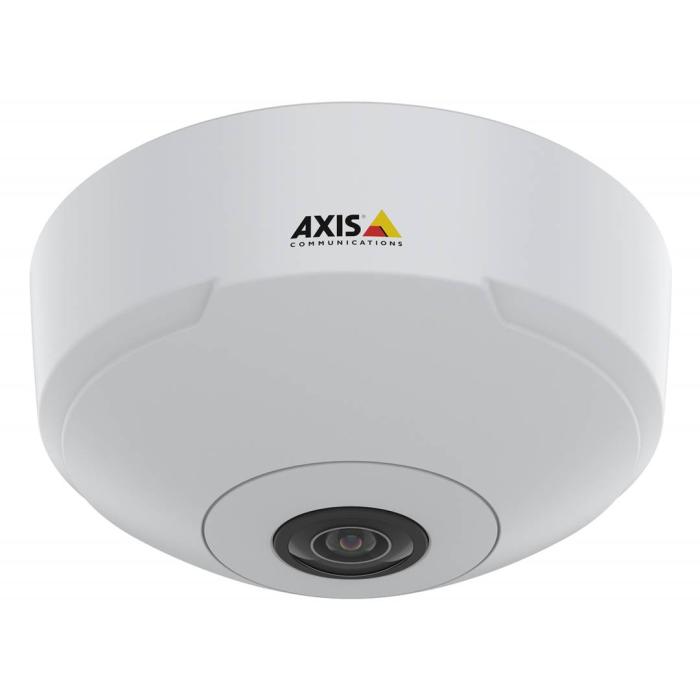

The AXIS 01732-001 security camera, with a cushion form factor and ceiling mount, offers 3840 x 2160 pixel resolution in an indoor-ready design with a black and white aluminium housing. It incorporates wide dynamic range (WDR), day/night mode with infrared cut filter and digital PTZ control, plus preset positions and recording tour for flexible tracking. Its 360° field of view with a 185° horizontal and vertical lens covers the entire room with a minimum illumination of 0.06 lx, and the connection is wired. This IP security camera from the AXIS brand is designed for complete surveillance with no blind spots in enclosed spaces.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor
- Connectivity technology: Wired
- PTZ control: Yes
- PTZ modes: Digital PTZ
- Tour recording: Yes
- Preset points: Yes
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Infrared (IR) cut-off filter: Yes
- Certification: IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: Black, White
- Housing material: Aluminium
Camera
- Minimum illumination: 0.06 lx
- Field of view (FOV) angle: 360°
- Lens viewing angle, horizontal: 185°
- Lens viewing angle, vertical: 185°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 1.7 mm (1 / 1.7")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Maximum aperture number: 2.8
- Fixed focal length: 1.65 mm
Video
- Bit rate control: Variable Bit Rate (VBR)
- Maximum resolution: 3840 x 2160 pixels
- Total megapixels: 12 MP
- Video formats supported: AVC, H.264, H.265, HEVC, MPEG4
- Supported graphics resolutions: 2048 x 1536 (QXGA), 2560 x 1920, 2880 x 2880
- Frame rate: 30 fps
- Video streaming: Yes
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Privacy masking: Yes
- Text caption overlay: Yes
Audio
- Audio system: 2-way
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPS , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/
- Quality of Service (QoS) support: Yes
- Streaming method: Multicast
Storage
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Flash memory: 512 MB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- HTTPS encryption: Yes
- Alert notification type: E-mail
Power
- Power source type: PoE
- Power consumption (typical): 3.7 W
- Power consumption (max): 6.49 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 101 mm
- Depth: 101 mm
- Height: 49 mm
- Weight: 300 g
Packaging content
- Number of cameras: 1
- Manual: Yes
Logistics data
- Harmonized System (HS) code: 85258900
