Description

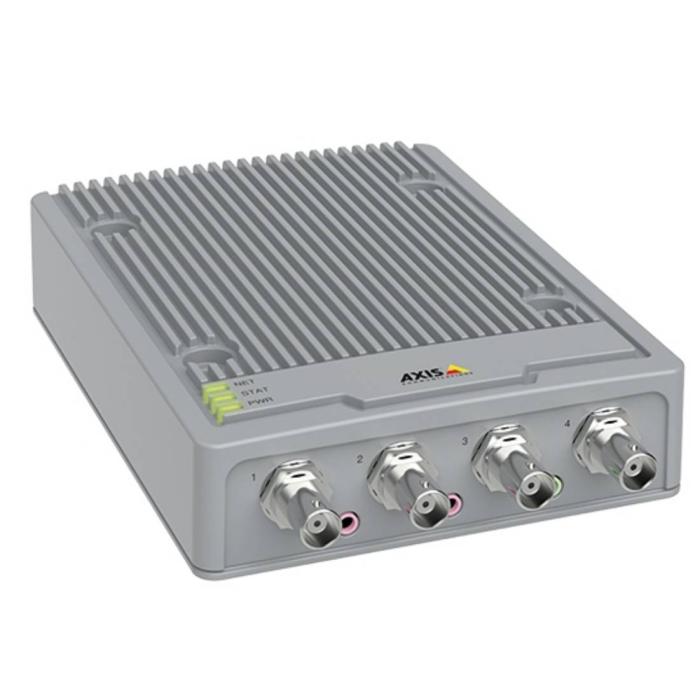

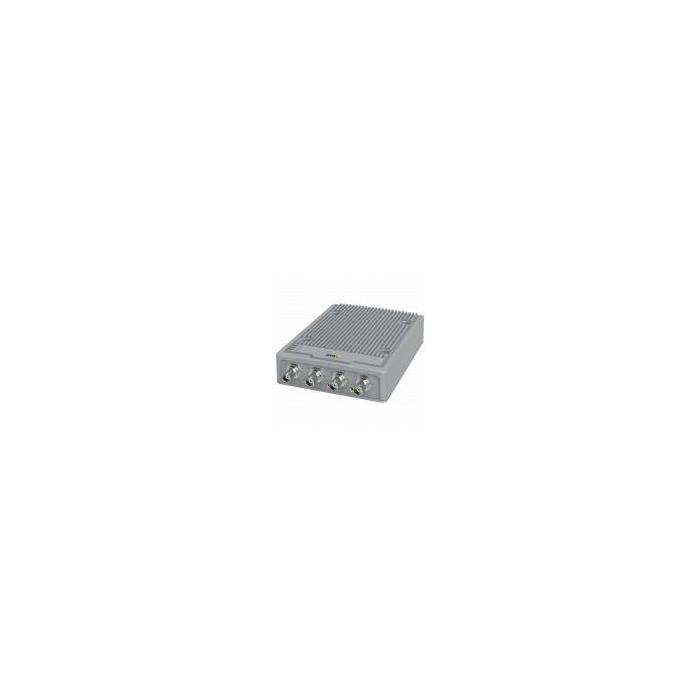

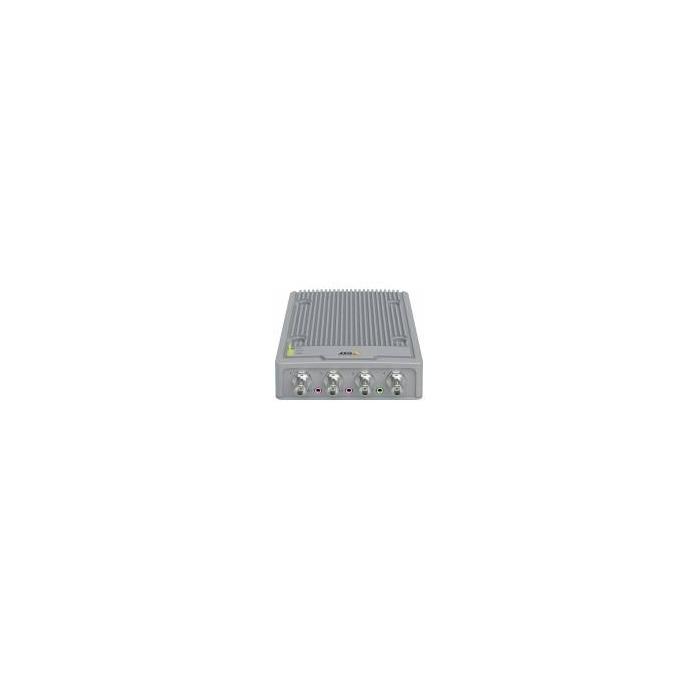

The Axis 01680-001 is a video server and encoder for surveillance installations with a maximum resolution of 1920 x 1080 pixels and 30 fps. This unit manages up to 4 channels and is compatible with AVC, H.264, H.265, HEVC and MPEG4 formats for efficient compression. It integrates image adjustment functions such as brightness, contrast, sharpness and privacy mask, and allows PTZ control. It includes a MicroSD, MicroSDHC and MicroSDXC card reader for local storage, as well as PoE connectivity with QoS support. Its grey design includes wall mounting and an LED status indicator for practical installation.
Specifications
Video
- Maximum video resolution: 1920 x 1080 pixels
- Maximum frame rate: 30 fps
- Video compression formats: AVC, H.264, H.265, HEVC, MPEG4
- NTSC resolutions: 720x480 pixels
- PAL resolutions: 720x576 pixels
- Channels quantity: 4 channels
Performance
- Internal memory: 1024 MB
- Flash memory: 512 MB
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- PTZ control: Yes
- Image settings: Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness
Design
- Product colour: Grey
- LED indicators: Status
- Wall mountable: Yes
- Certification: EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003
Network
- Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II)
- Quality of Service (QoS) support: Yes
- Power over Ethernet (PoE): Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Networking standards: IEEE 802.3af, IEEE 802.3at
Security
- Security algorithms: HTTPS
- Video motion detection: Yes
- IP address filtering: Yes
- Audio detection: Yes
- Active tampering alarm: Yes
Ports & interfaces
- Line-in: Yes
- Line-out: Yes
- BNC input ports: 4
- Ethernet LAN (RJ-45) ports: 1
- RS-485 ports: 2
- I/O terminal ports: 1
- Microphone in: Yes
Power
- Power consumption (typical): 8.2 W
Weight & dimensions
- Width: 187 mm
- Height: 37 mm
- Weight: 650 g
Packaging content
- Manual: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 65 °C
- Operating relative humidity (H-H): 10 - 85%
