Description

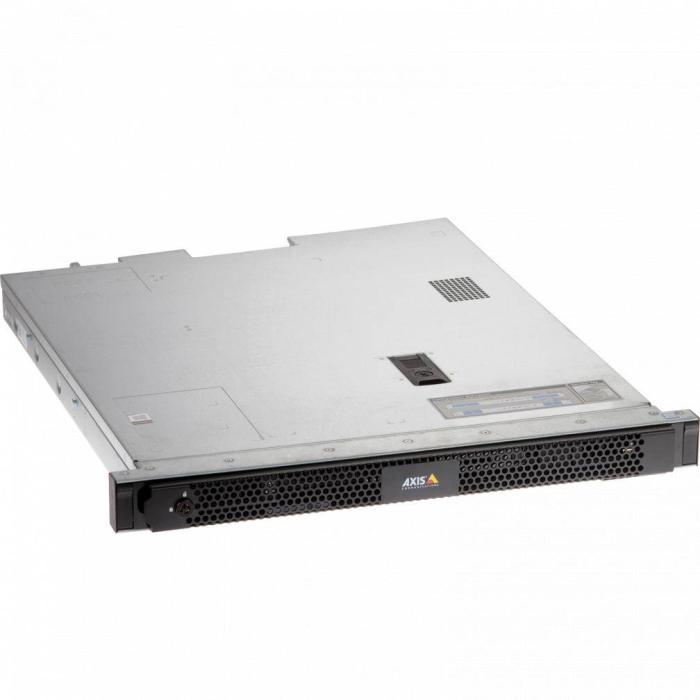

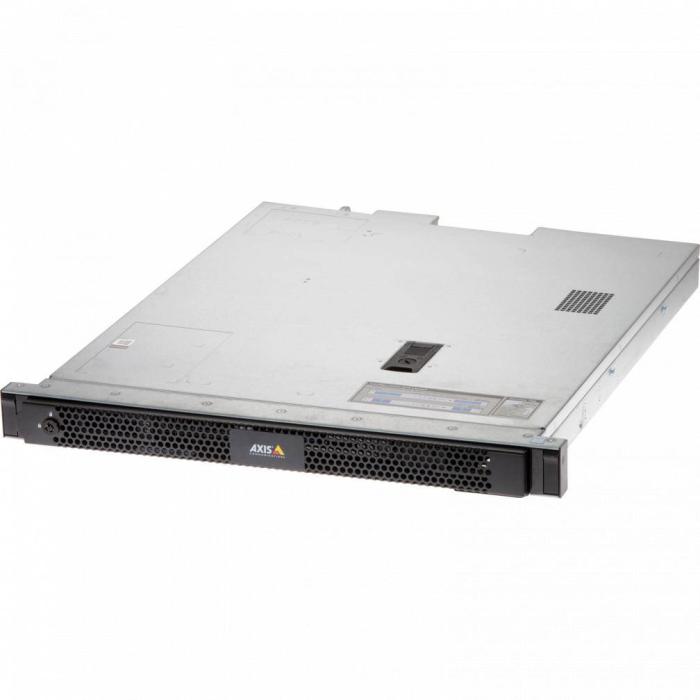

Network video recorder (NVR) from Axis's 01618-001 series, offered in a 1U rack-mount format, designed for integration into professional video surveillance environments. This model includes 8 GB of internal memory and an 8 TB hard drive pre-installed, with capacity to expand up to three drives and support for RAID levels 0 and 1, facilitating storage management according to your needs. It features one Ethernet LAN port compatible with speeds of 1000 and 10000 Mbit/s, two USB Type-A ports and three Type-C ports, plus an integrated SD card reader for transfer or backup options.
Specifications
Performance
- Internal memory: 8000 MB
- Operating system installed: Windows 10 IoT Enterprise
Hard drive
- Number of HDDs installed: 1
- HDD capacity: 8 TB
- Number of HDDs supported: 3
- RAID support: Yes
- RAID levels: 0, 1
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 1000, 10000 Mbit/s
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
- Card reader integrated: Yes
- Compatible memory cards: SD
Features
- Rack mounting: Yes
- Rack capacity: 1U
- Certification: EMC EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR
Power
- Power consumption (max): 500 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Output current: 3.7 A
Operational conditions
- Operating temperature (T-T): 10 - 35 °C
- Operating relative humidity (H-H): 10 - 85%
- Storage temperature (T-T): -40 - 65 °C
Weight & dimensions
- Width: 589 mm
- Depth: 482 mm
- Height: 43 mm
- Weight: 9.6 kg
