Description

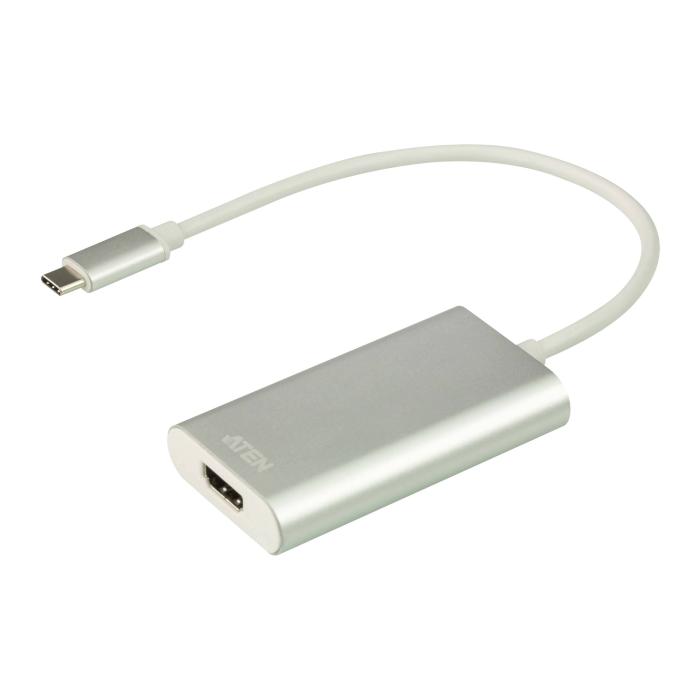

Connect an HDMI source to your equipment and capture video with the ATEN CAMLIVE capture device, which converts the HDMI 1.4b input signal into data ready for your computer. It connects via a USB 3.1 Gen1 Type-C port that also powers the device, so it works with the USB type of power source. It supports 480p, 720p and 1080p video modes with a maximum frame rate of 60 fps, and captures audio in PCM format. The casing is aluminium and the unit has a silver and white colour, with dimensions of 73 x 14 x 42 mm and a weight of 50 g, making it a compact device to take with you. As it is Plug and Play compatible, you just need to connect it to start using it without complex configurations. It works on Windows 7, Windows 8 and Windows 10, and is also compatible with Mac via Mac OS X 10.13 High Sierra and Mac OS X 10.14 Mojave.
Specifications
Performance
- Product colour: Silver, White
- Internal: No
- Host interface: HDMI
- Interface: USB 3.1 Gen1 Type-C
- Plug and Play: Yes
- Housing material: Aluminium
Video
- Maximum frame rate: 60 fps
- Supported video modes: 480p, 720p, 1080p
File formats
- Audio formats supported: PCM
Ports & interfaces
- HDMI ports quantity: 1
- HDMI in: 1
- HDMI version: 1.4b
Power
- Power supply type: USB
Software
- Windows operating systems supported: Windows 10, Windows 7, Windows 8
- Mac compatibility: Yes
- Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
System requirements
- Minimum processor: Intel i3 Dual Core 2.8Ghz
- Minimum RAM: 4000 MB
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 73 mm
- Depth: 42 mm
- Height: 14 mm
- Weight: 50 g
Other features
- Master (outer) case width: 326 mm
- Master (outer) case height: 162 mm
Packaging data
- Package weight: 150 g
- Package height: 193 mm
- Package width: 62 mm
- Package depth: 140 mm
Packaging content
- User guide: Yes
Logistics data
- Products per master (outer) case: 10 pc(s)
- Master (outer) case gross weight: 2.07 kg
- Master (outer) case length: 345 mm
- Master (outer) case net weight: 500 g
- Harmonized System (HS) code: 85176990
