Description

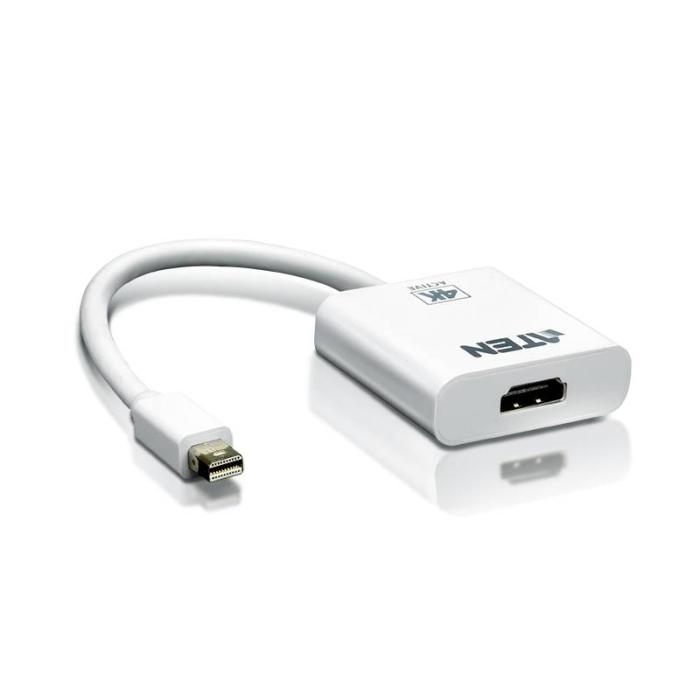

ATEN's active Mini DisplayPort to HDMI adapter connects a device with Mini DisplayPort output to a display or projector with HDMI input. Its Mini DisplayPort male connector and HDMI female connector, both straight type, allow conversion without the need for additional cables. It supports a maximum resolution of 3840 x 2160 pixels, making it suitable for 4K content, and also supports graphics resolutions of 1920 x 1200 (WUXGA) and 3840 x 2160. It is compatible with DisplayPort 1.2a and offers a bandwidth of 297 MHz. It features HDCP 1.3 protection, so you can play protected content without issues. The cable jacket is plastic and the unit weighs 75 g, with dimensions of 45 x 15 x 175 mm (width x height x depth). It comes in white and operates within an operating temperature range of 0 to 50 °C.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector 1: Mini DisplayPort
- Connector 2: HDMI
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDCP: Yes
- HDCP version: 1.3
- DisplayPort version: 1.2a
- Maximum resolution: 3840 x 2160 pixels
- Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160
- Bandwidth: 297 MHz
- Product colour: White
- Jacket material: Plastic
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Weight: 75 g
- Width: 45 mm
- Depth: 175 mm
- Height: 15 mm
Packaging data
- Package width: 19 mm
- Package depth: 120 mm
- Package height: 212 mm
- Package weight: 96 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case net weight: 3 kg
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 270 mm
- Master (outer) case length: 335 mm
- Master (outer) case height: 230 mm
- Master (outer) case gross weight: 4.35 kg
- Products per master (outer) case: 40 pc(s)
