Description

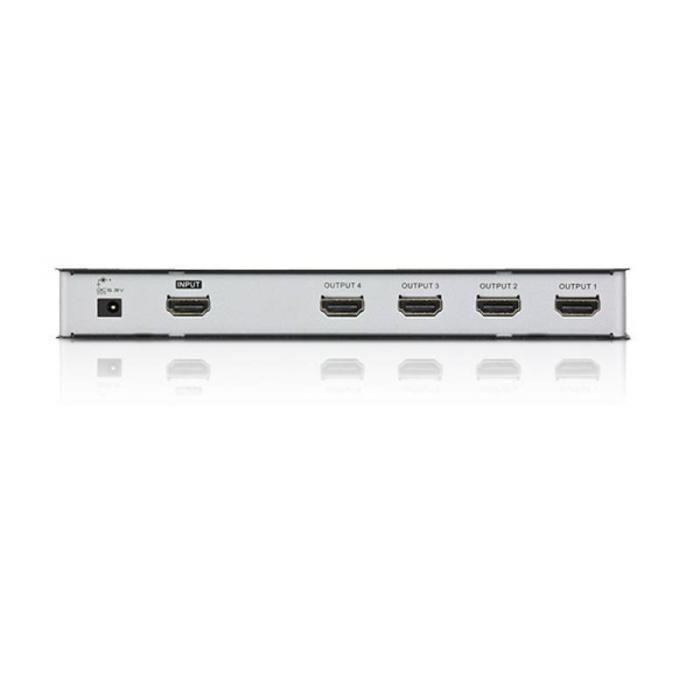

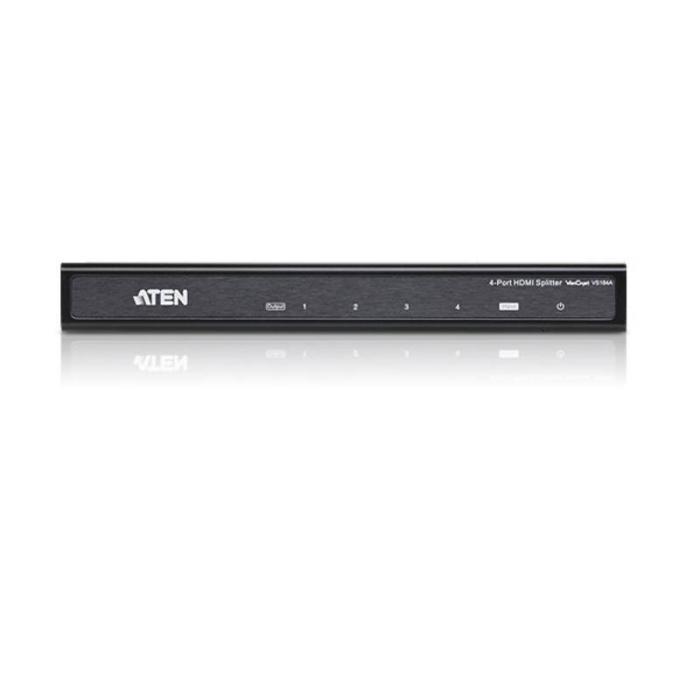

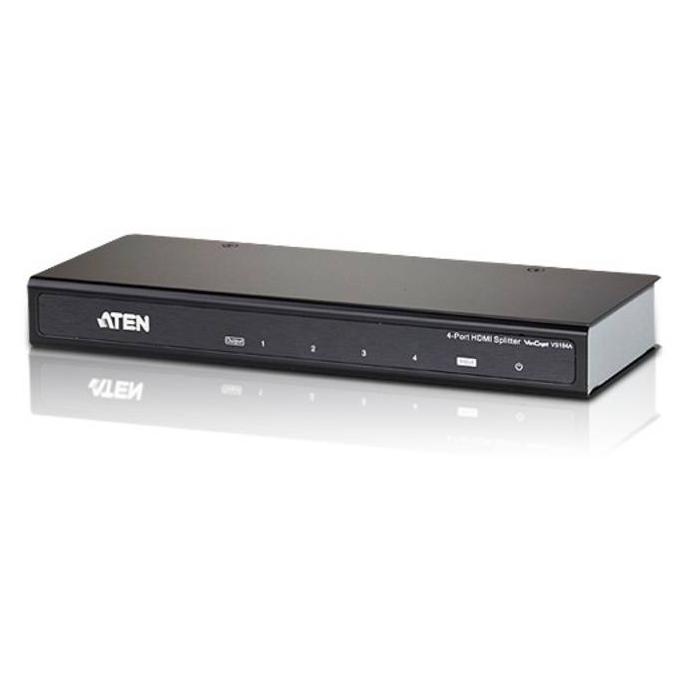

The ATEN 4-port HDMI splitter distributes a single video signal to four simultaneous screens. It has one input and four HDMI outputs, with a maximum resolution of 4096 x 2160 pixels and a refresh rate of 60 Hz, resulting in 4K Ultra HD. Its 340 MHz bandwidth and HDCP 1.4 compatibility allow protected content to be played back without issues. The Plug and Play function streamlines setup, while LED indicators show the status of each connection. It supports 3D content and DTS-HD Master Audio and Dolby TrueHD audio tracks, with a maximum operating distance of 15 m between devices. All of this in a black chassis weighing 703 g and measuring 80 x 25 x 200 mm, powered at 5 V with a consumption of 6.02 W.
Specifications
Ports & interfaces
- Video port type: HDMI
- Video out: 4x HDMI
- Video ports quantity: 5
- DC-in jack: Yes
Features
- Product colour: Black
- Maximum resolution: 4096 x 2160 pixels
- HD type: 4K Ultra HD
- 3D: Yes
- Maximum operating distance: 15 m
- Maximum refresh rate: 60 Hz
- Bandwidth: 340 MHz
- HDCP version: 1.4
- HDCP: Yes
- Plug and Play: Yes
- LED indicators: Yes
- Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
Power
- AC input voltage: 5 V
- Power consumption (typical): 6.02 W
Weight & dimensions
- Width: 80 mm
- Depth: 200 mm
- Height: 25 mm
- Weight: 703 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 59 mm
- Package depth: 239 mm
- Package height: 160 mm
- Package weight: 825 g
Packaging content
- Manual: Yes
- Cables included: HDMI
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Logistics data
- Master (outer) case net weight: 14.1 kg
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 315 mm
- Master (outer) case length: 490 mm
- Master (outer) case height: 338 mm
- Master (outer) case gross weight: 17.3 kg
- Products per master (outer) case: 20 pc(s)
