Description

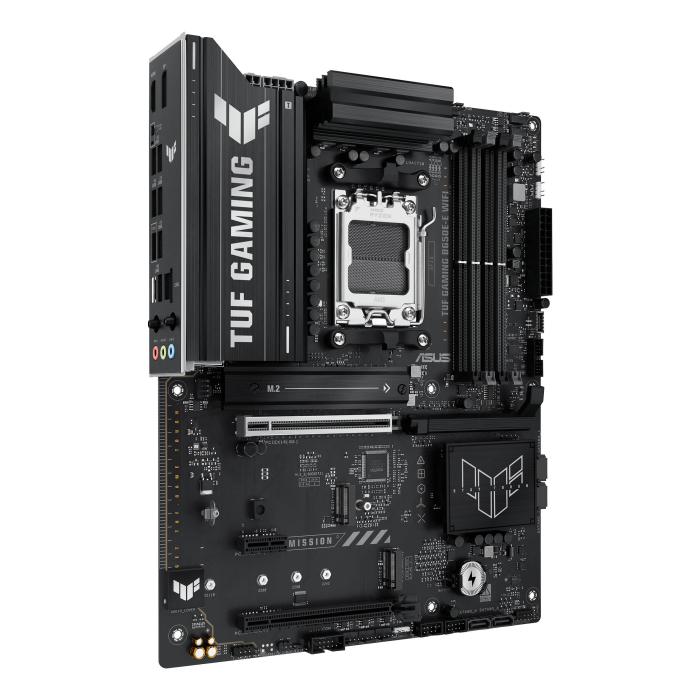

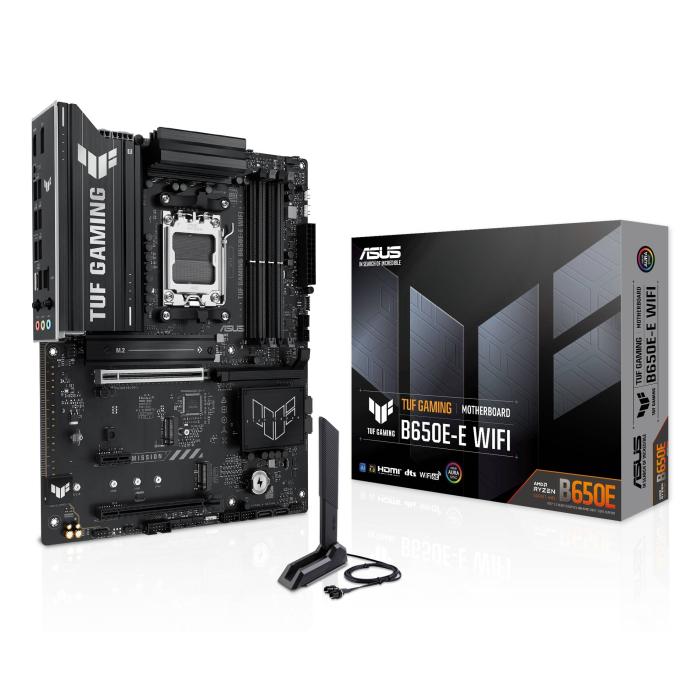

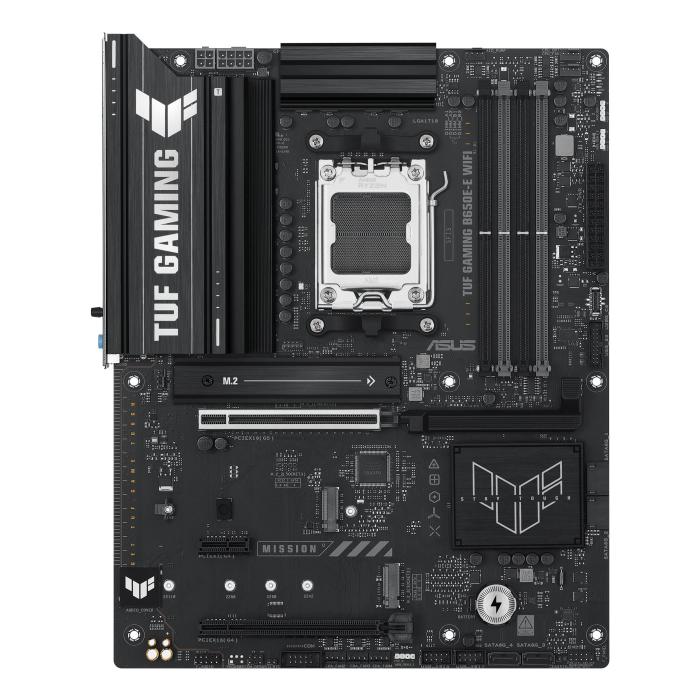

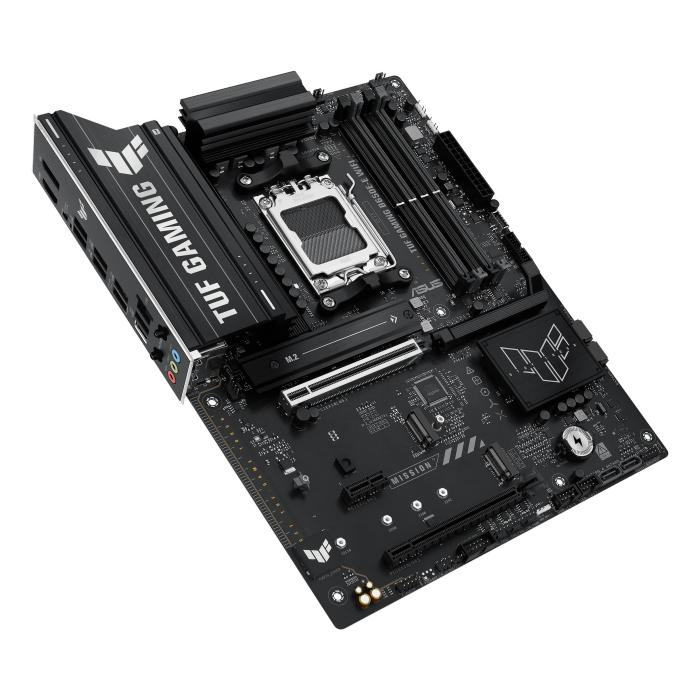

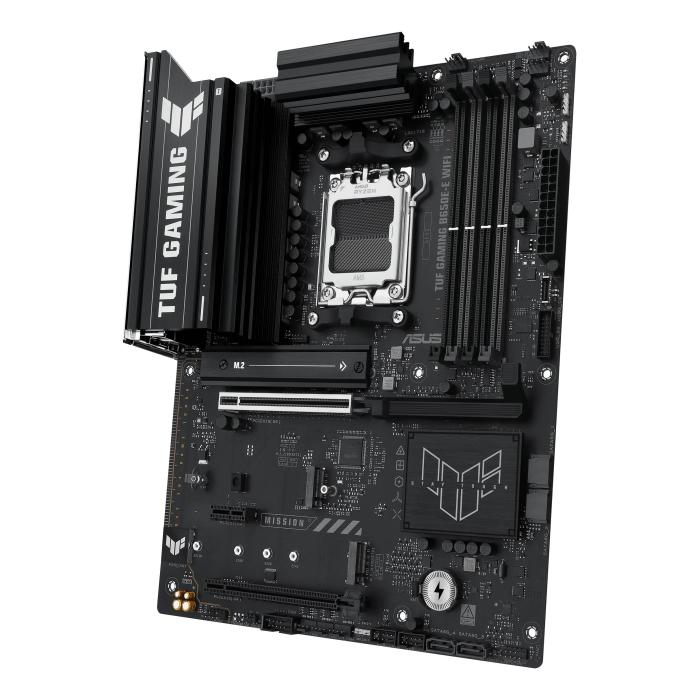

The ASUS TUF GAMING B650E-E WIFI motherboard, in black, is designed for builds with AMD processors on the AM5 socket. It is compatible with the AMD Ryzen 7000, 8000 and 9000 series, so you can make the jump to the latest platforms without changing the motherboard. It has four DIMM slots for DDR5-SDRAM memory, with dual channel support and a maximum capacity of 256 GB, as well as compatibility with ECC and non-ECC modules, and unbuffered memory. As for storage, it supports up to seven drives between HDDs and SSDs thanks to the M.2 and SATA III interfaces, with support for four HDDs and RAID configurations at levels 0, 1, 5 and 10. With all this, this ASUS motherboard lets you build a balanced system for both work and gaming, taking advantage of the connectivity and performance of the AM5 platform.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
- Supported storage drive types: HDD & SSD
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- Chassis intrusion connector: Yes
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

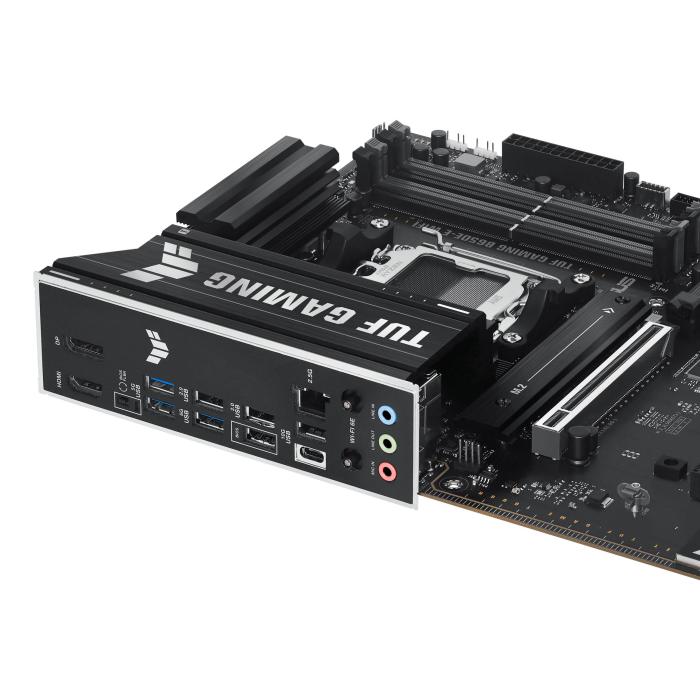

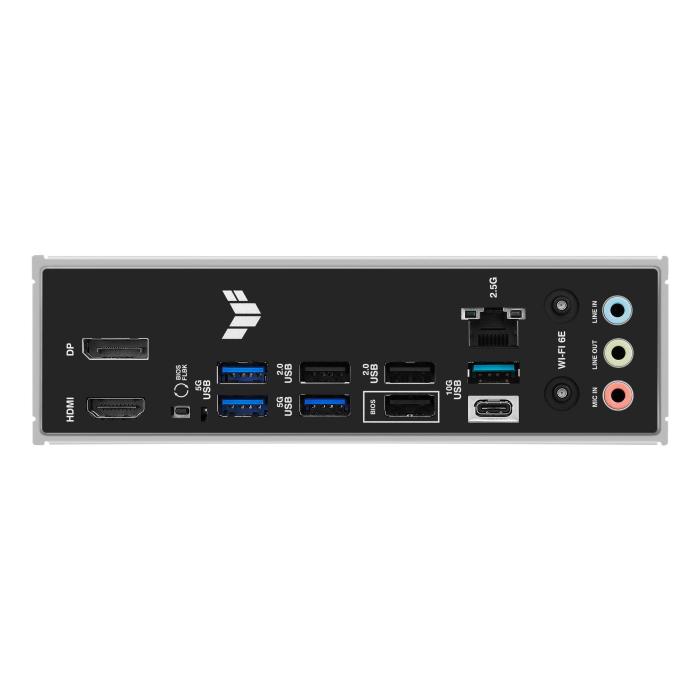

Rear panel I/O ports
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Line-in: Yes
- Microphone in: Yes

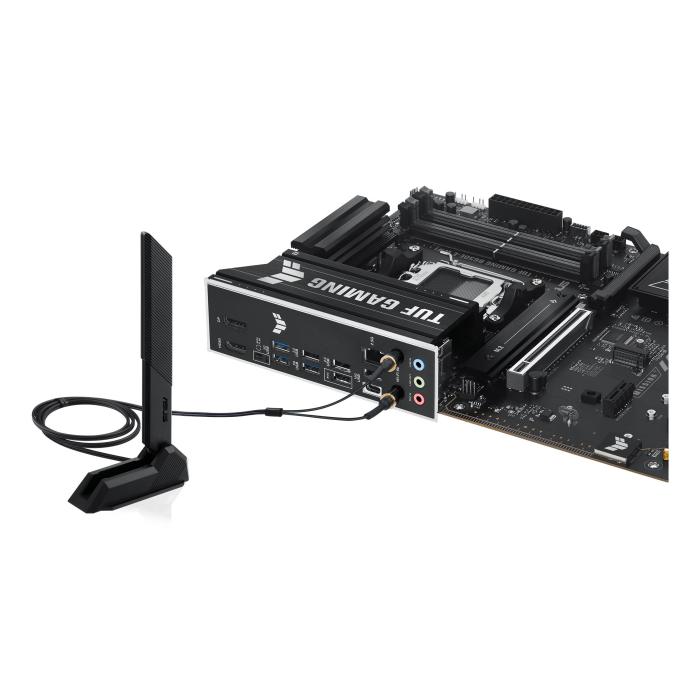

- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 353 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 1.78 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm

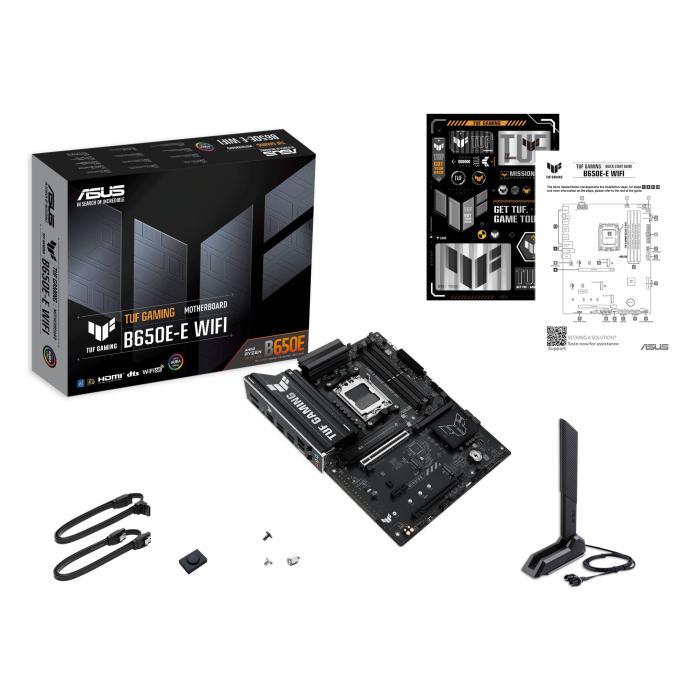

Packaging content
- Cables included: SATA
- Antenna included: Yes
- Screws included: Yes
