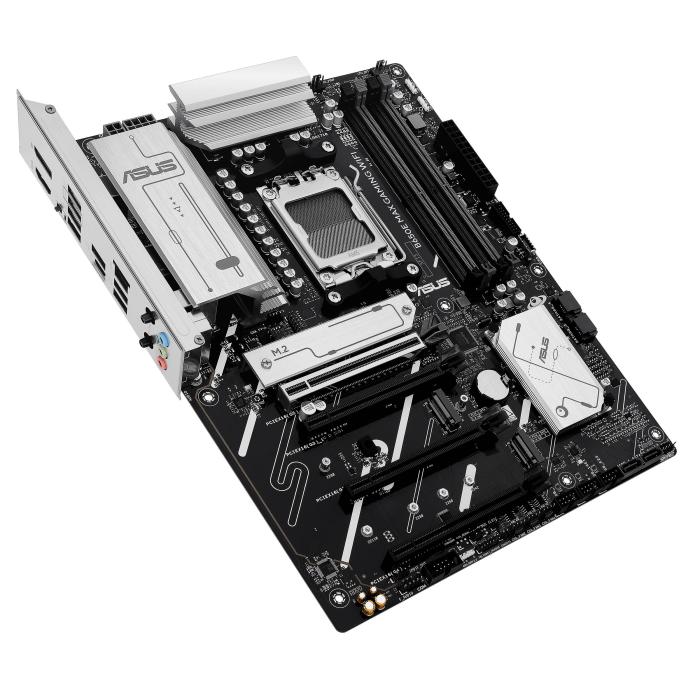

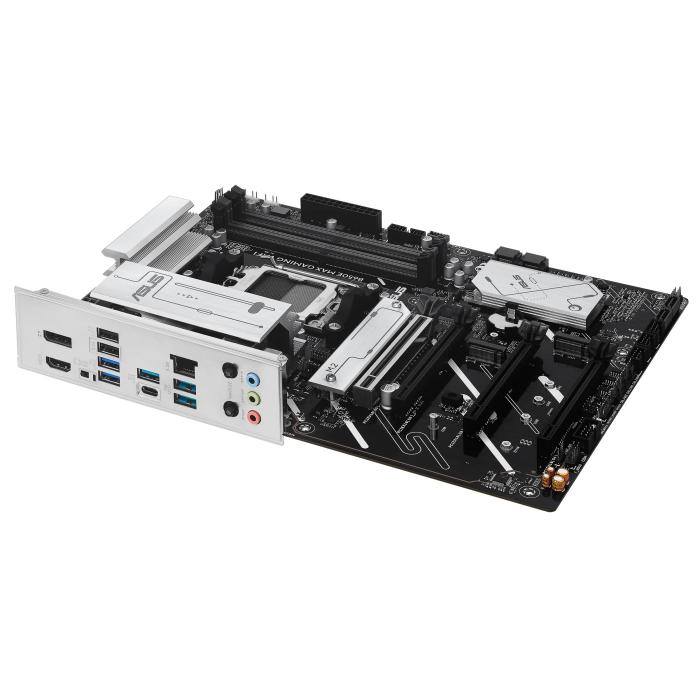

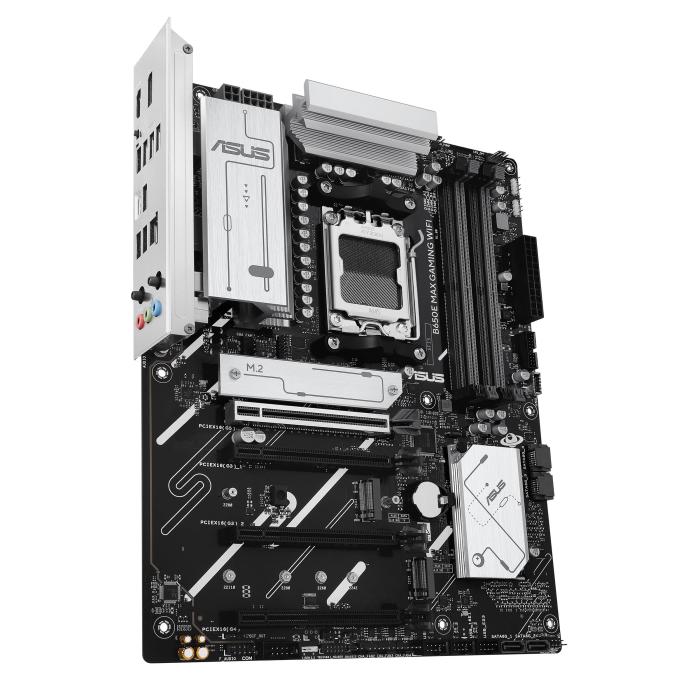

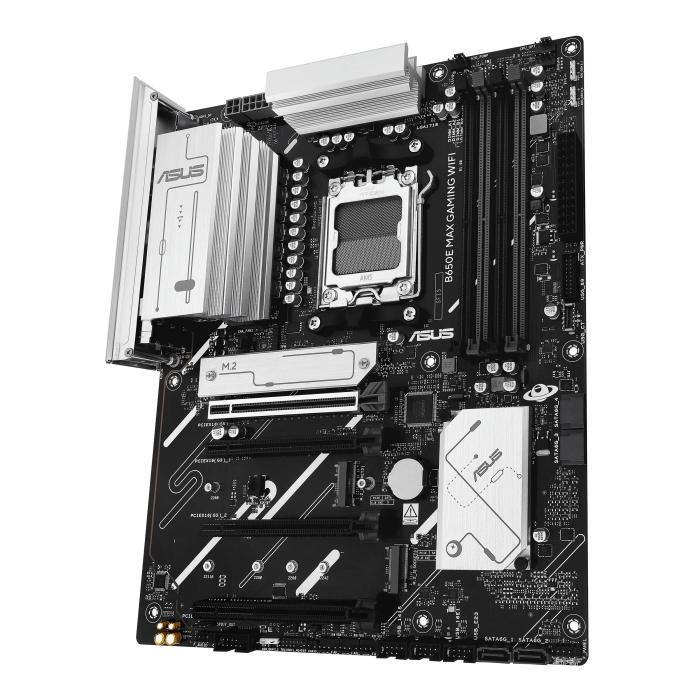

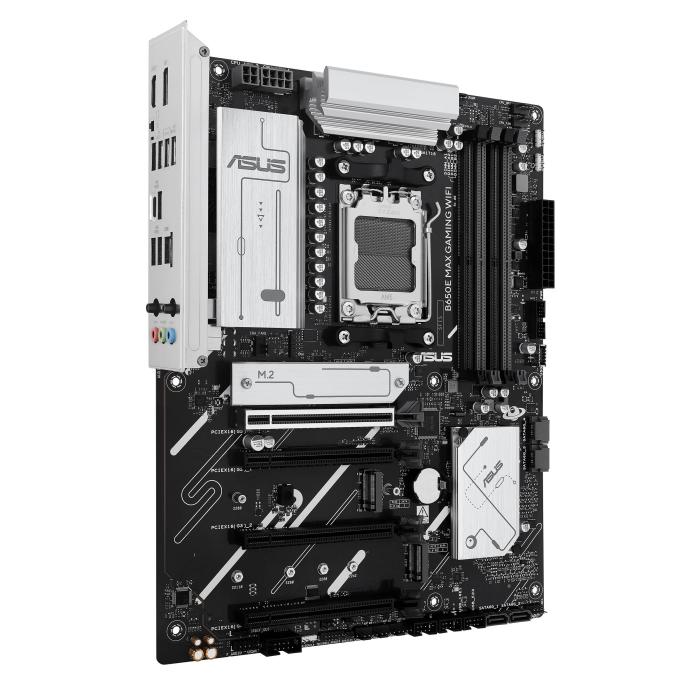

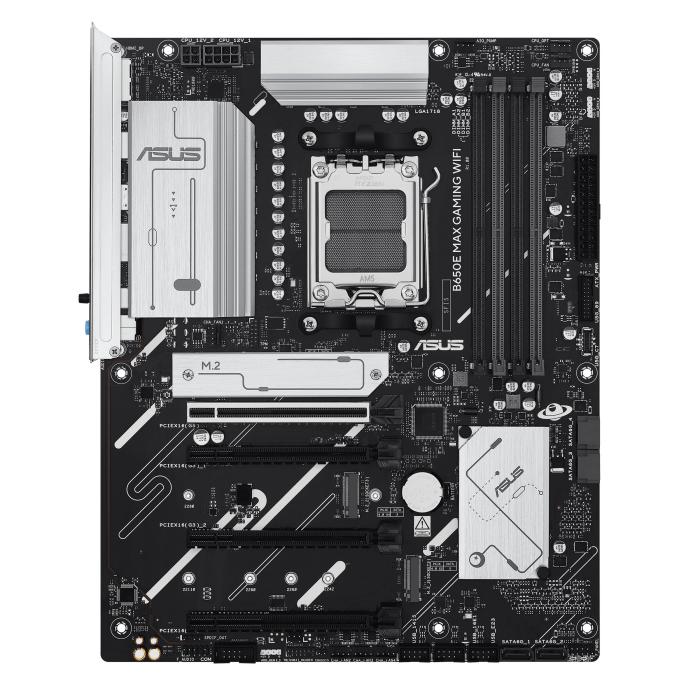

Name: ASUS B650E MAX GAMING WIFI AMD B650 Socket AM5 ATX
Brand: ASUS
Price: 190.44 USD
Availability: InStock

ASUS B650E MAX GAMING WIFI AMD B650 Socket AM5 ATX

$190.44

$190.44 without VAT

Amount

Brand: ASUS

SKU: 109652 PRC: 588261 EAN: 4711387932445 PN: 90MB1LD0-M0EAY0

Description

ASUS B650E MAX GAMING WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8000 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

On-board graphics card: No
Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
Chassis intrusion connector: Yes
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
Number of water pump connectors: 1
RGB LED pin header: Yes
Number of RGB LED pin headers: 3

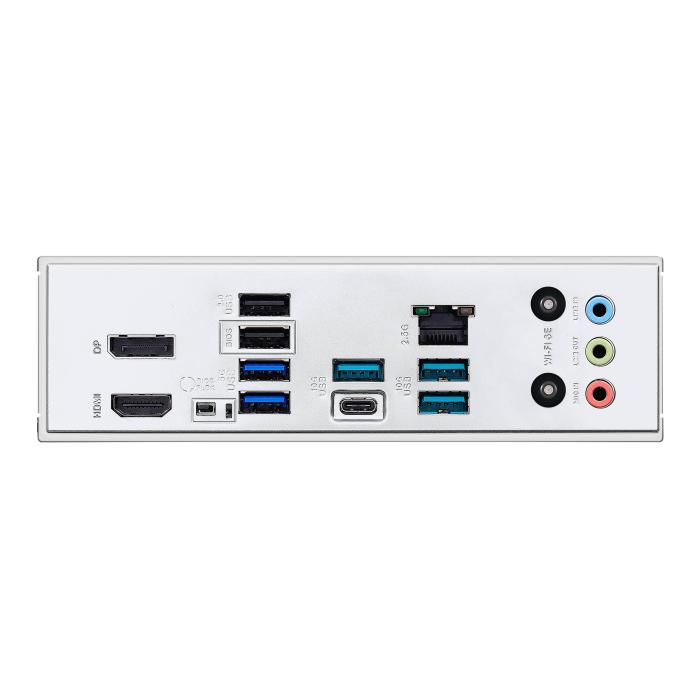

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

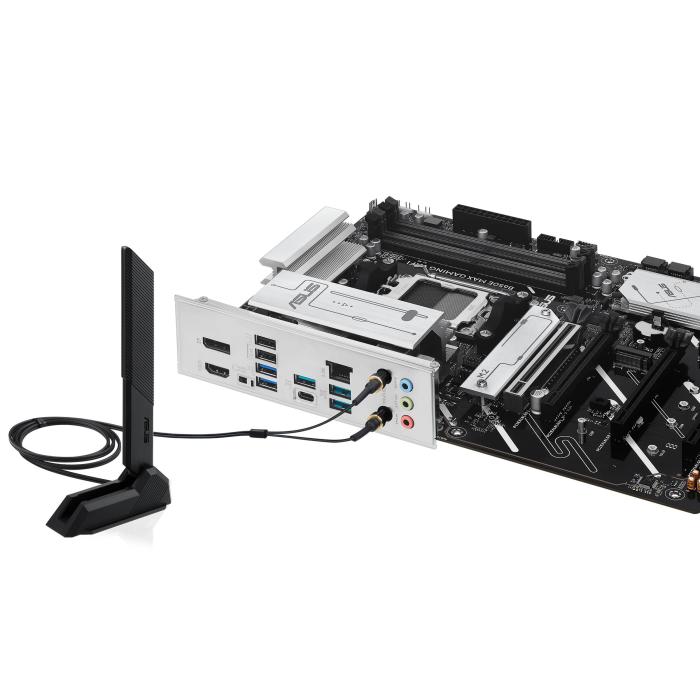

WiFi-AP antenna jack: 2

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3

Features

Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 353 mm
Package depth: 273 mm
Package height: 68 mm
Package weight: 1.26 kg

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 48 mm

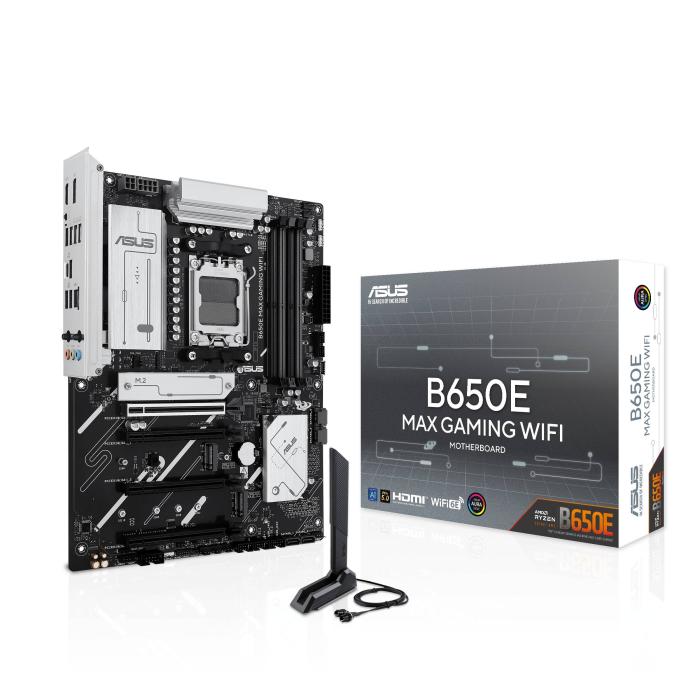

Packaging content

Cables included: SATA
Antenna included: Yes
Screws included: Yes

Other features

Weight: 1.05 kg
