Name: ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX
Brand: ASUS
Price: 141.88 USD
Availability: InStock

ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX

$141.88

$141.88 without VAT

ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX. More info

Amount

Brand: ASUS

SKU: 84885 PRC: 290881 EAN: 4718017749435 PN: 90MB14G0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz
Maximum internal memory: 128 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: 2-Way CrossFireX

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
Number of SATA connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
TPM connector: Yes

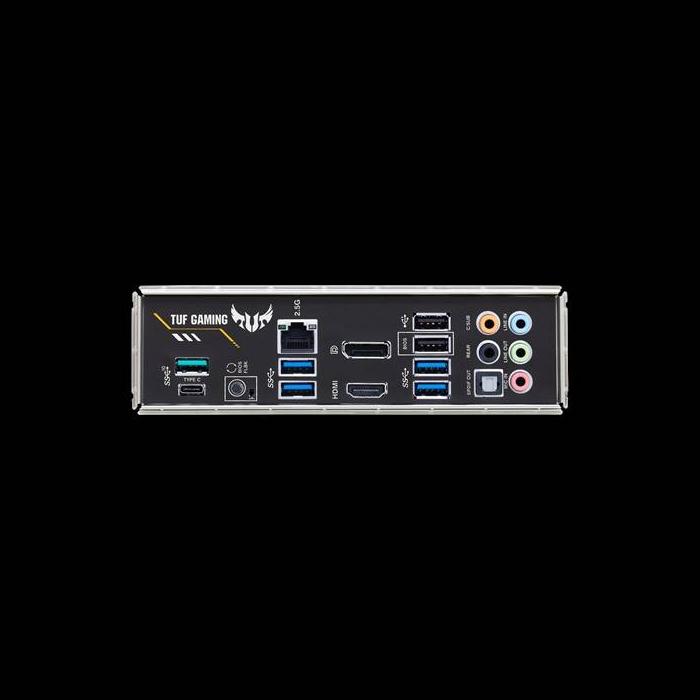

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1
S/PDIF out port: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125B
Wi-Fi: No

Features

Motherboard chipset: AMD B550
Audio chip: Realtek ALC S1200A
Audio output channels: 7.1 channels
Component for: Nettop
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 68 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 945 g

ASUS TUF Gaming B550-PLUS AMD B550 Socket AM4 ATX

Description

Specifications

Processor

Memory

Storage controllers

Graphics

Internal I/O

Rear panel I/O ports

Network

Features

Expansion slots

BIOS

Logistics data

Weight & dimensions

Packaging content

Other features
