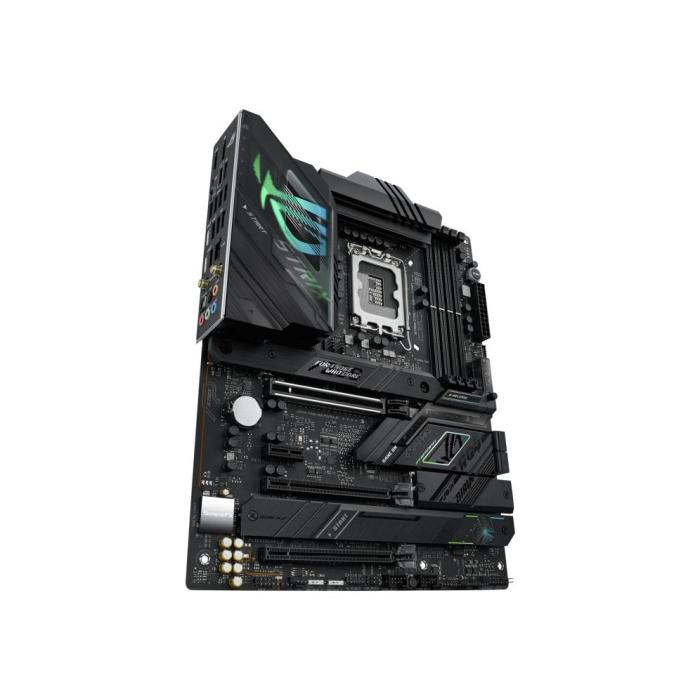

Product 1 image
Product 2 image
Product 3 image
Product 4 image
Product 5 image
Product 6 image
Product 7 image
Product 8 image
Product 9 image
Product 10 image
Product 11 image
Product 12 image

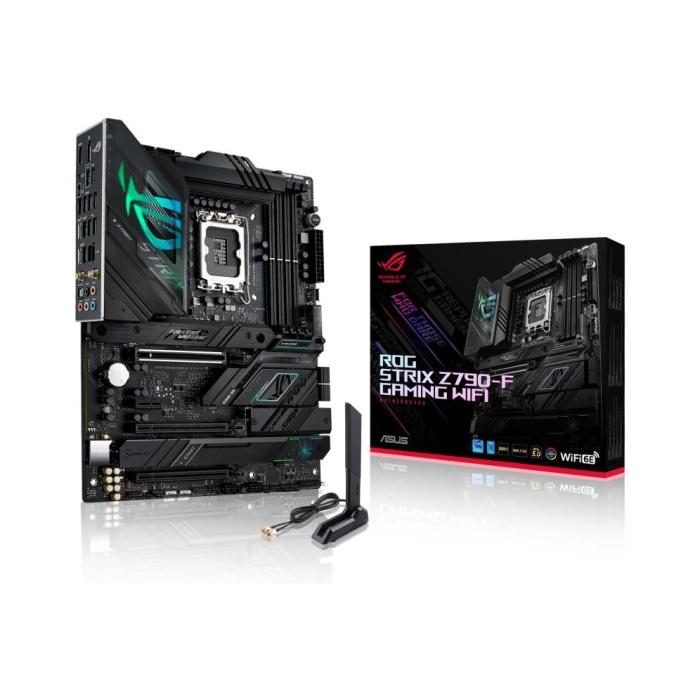

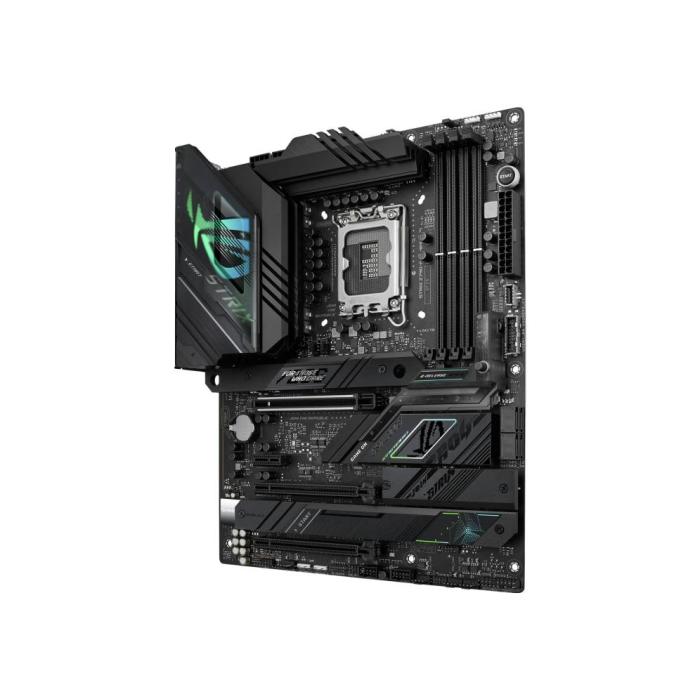

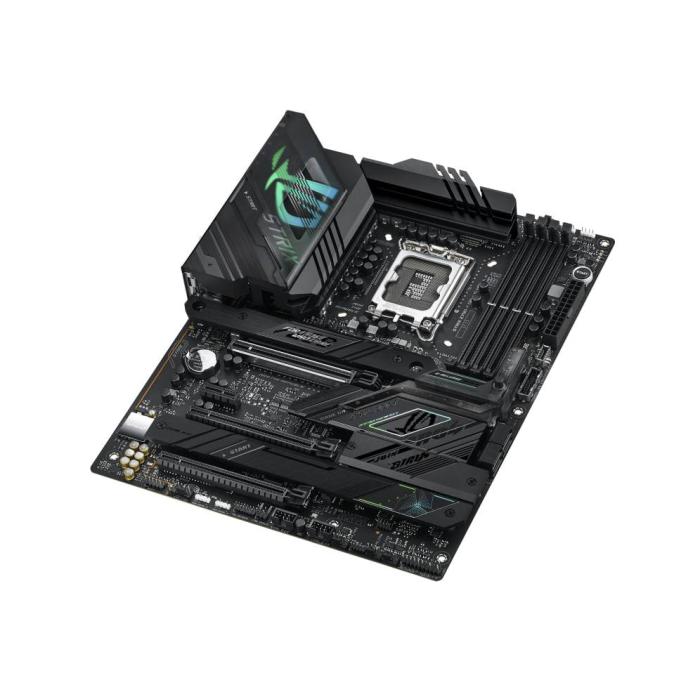

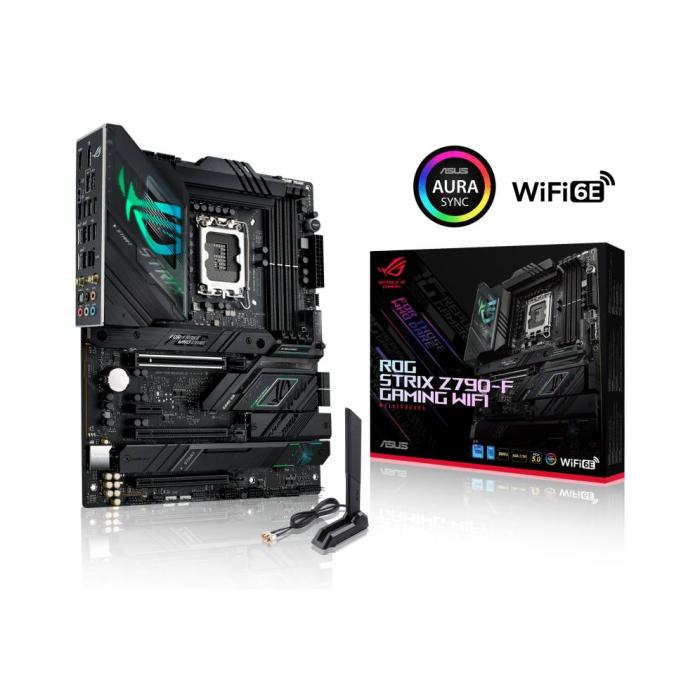

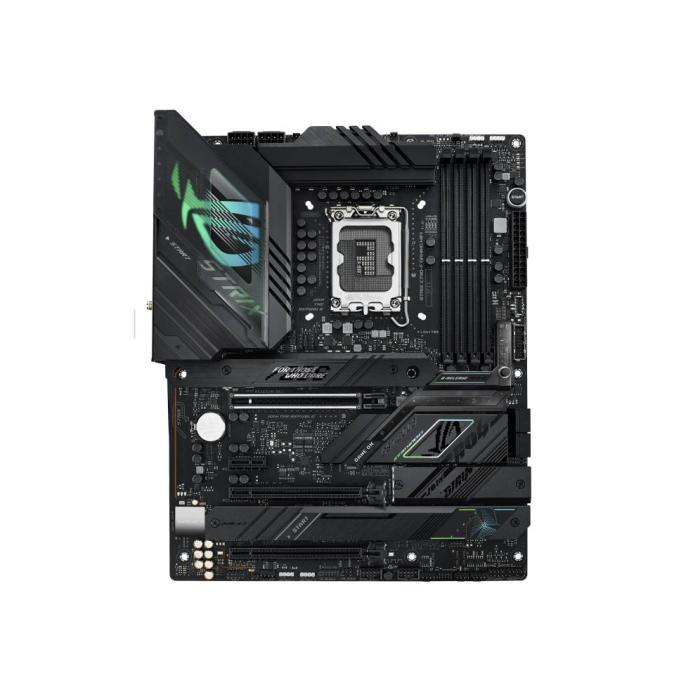

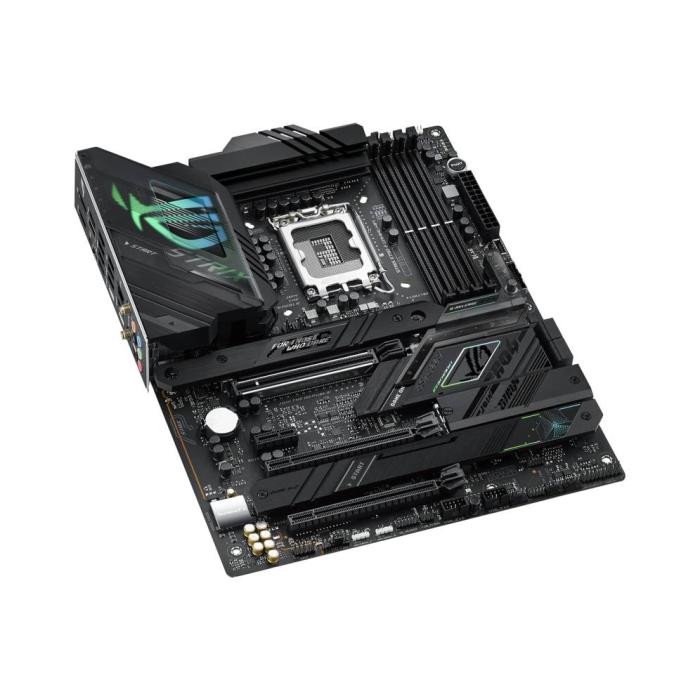

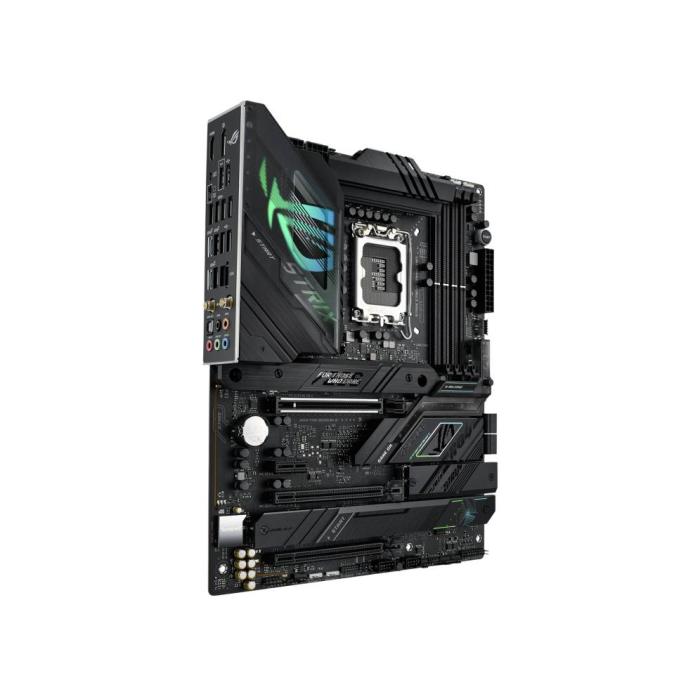

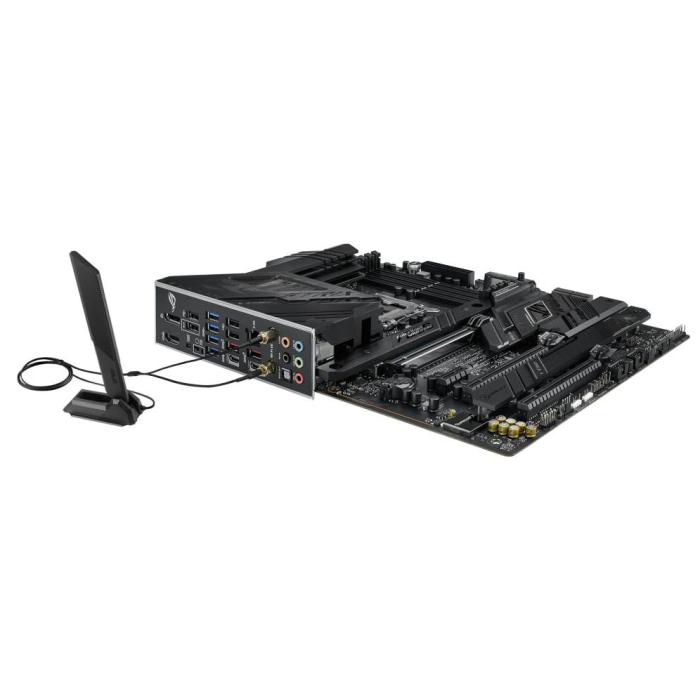

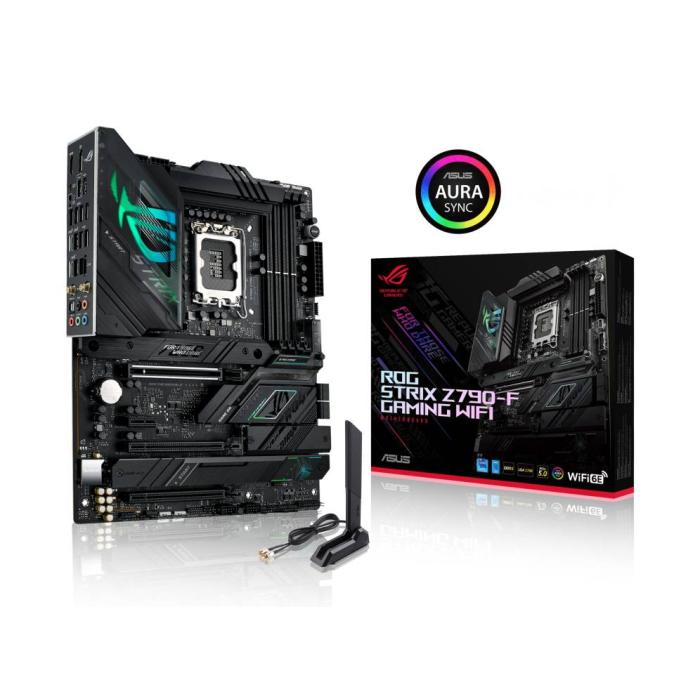

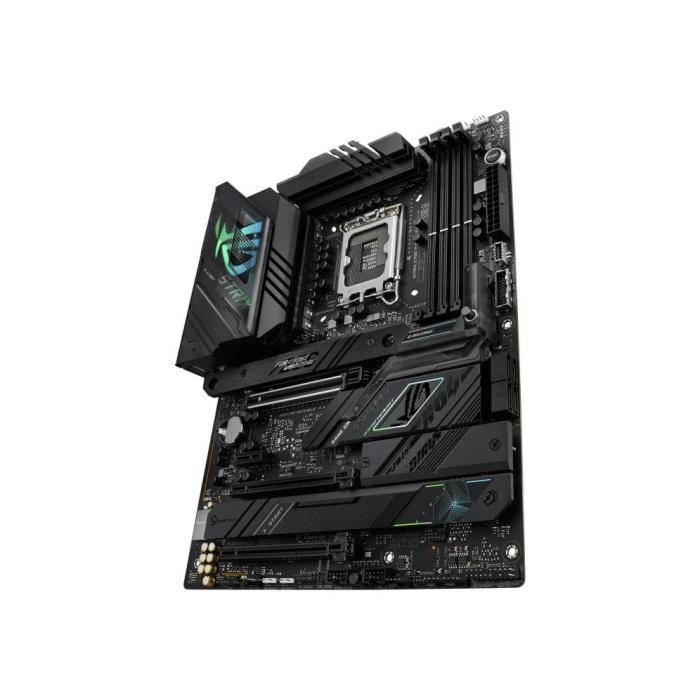

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 LGA 1700 ATX

Not avaliable

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 LGA 1700 ATX.   More info

Brand: ASUS
SKU: 96749 PRC: 397788 EAN: 4711081938590 PN: 90MB1CP0-M0EAY0

Description

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
  • Supported processor sockets: LGA 1700

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
  • Supported memory clock speed (max): 7800 MHz
  • Maximum internal memory: 192 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • RAID support: Yes
  • RAID levels: 0, 1, 5, 10

Graphics

  • On-board graphics card: No
  • Parallel processing technology support: Not supported

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 5
  • EPS power connector (8-pin): Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

Rear panel I/O ports

  • USB 2.0 ports quantity: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes
  • S/PDIF out port: Yes
  • WiFi-AP antenna jack: 2

Network

  • Bluetooth: Yes
  • Bluetooth version: 5.3
  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Features

  • Motherboard chipset: Intel Z790
  • Audio chip: Realtek ALC4080
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11
  • Product colour: Black

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 2
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Clear CMOS button: Yes

Packaging data

  • Package width: 368 mm
  • Package depth: 293 mm
  • Package height: 290 mm
  • Package weight: 2.25 kg

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm

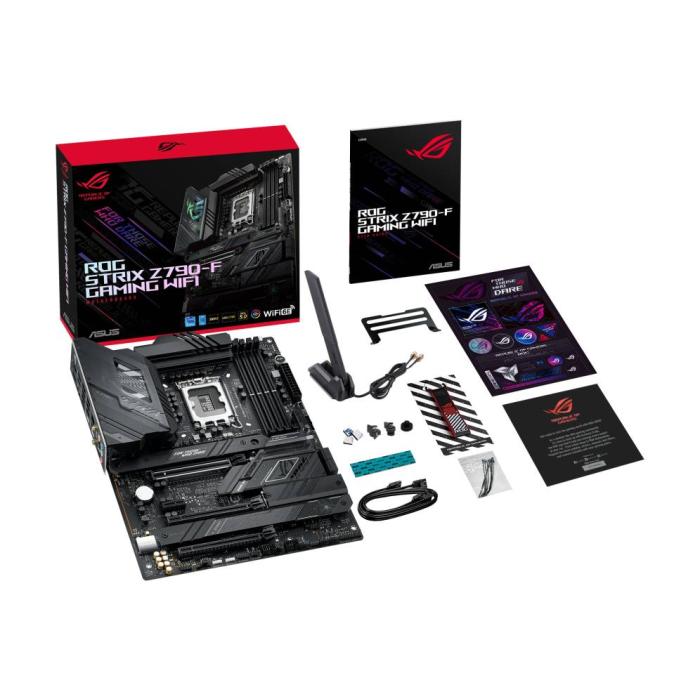

Packaging content

  • Cables included: SATA
  • User guide: Yes
  • Drivers included: Yes

Other features

  • Back-to-BIOS button: Yes
