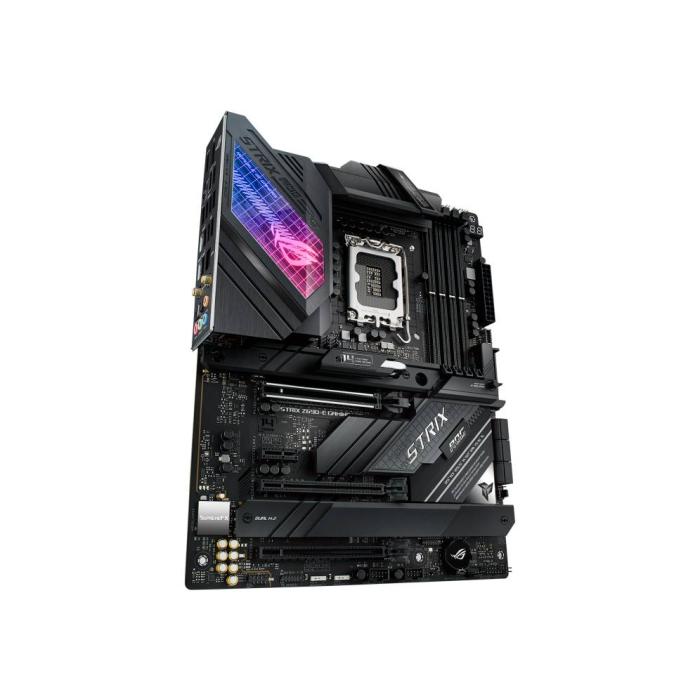

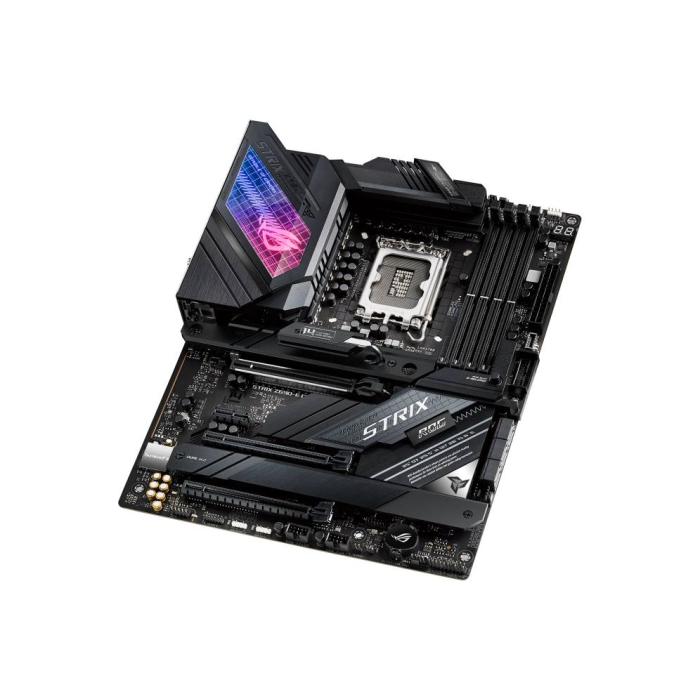

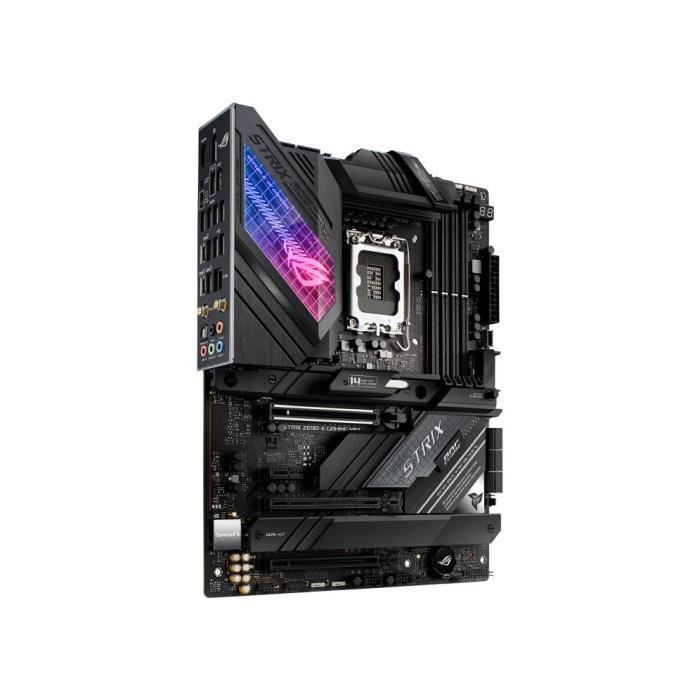

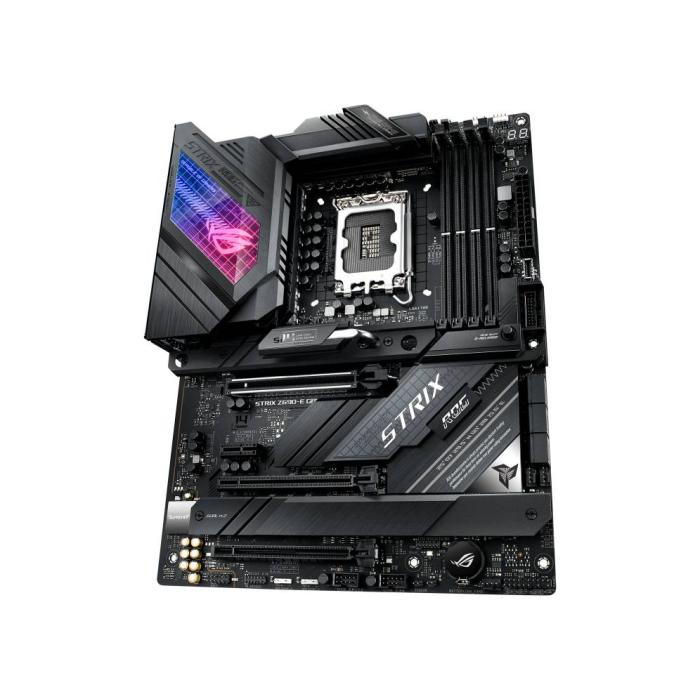

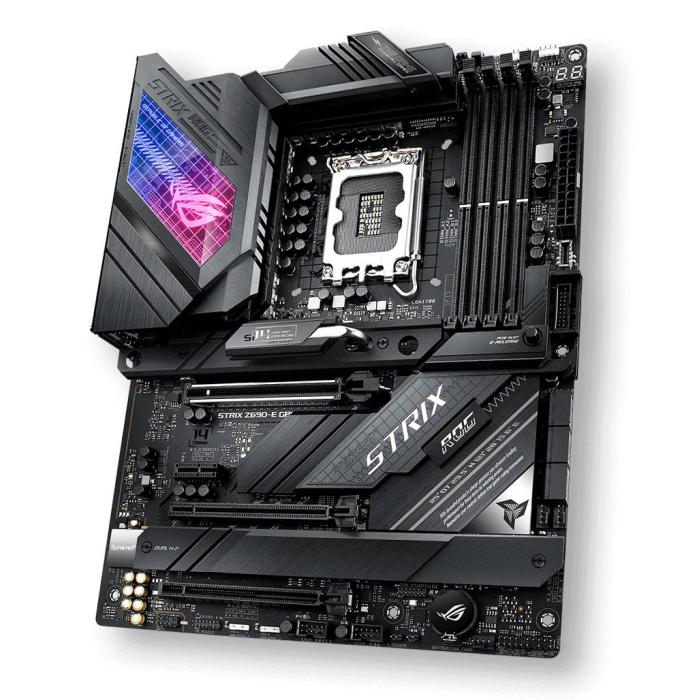

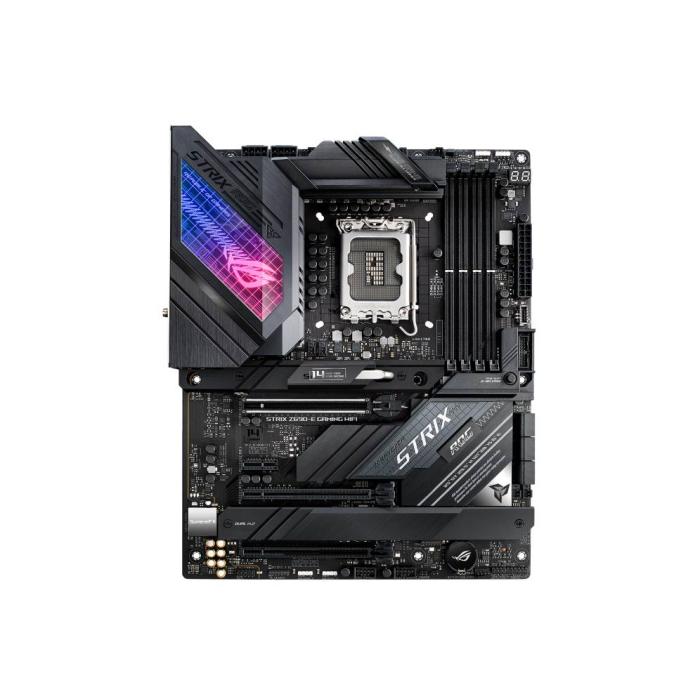

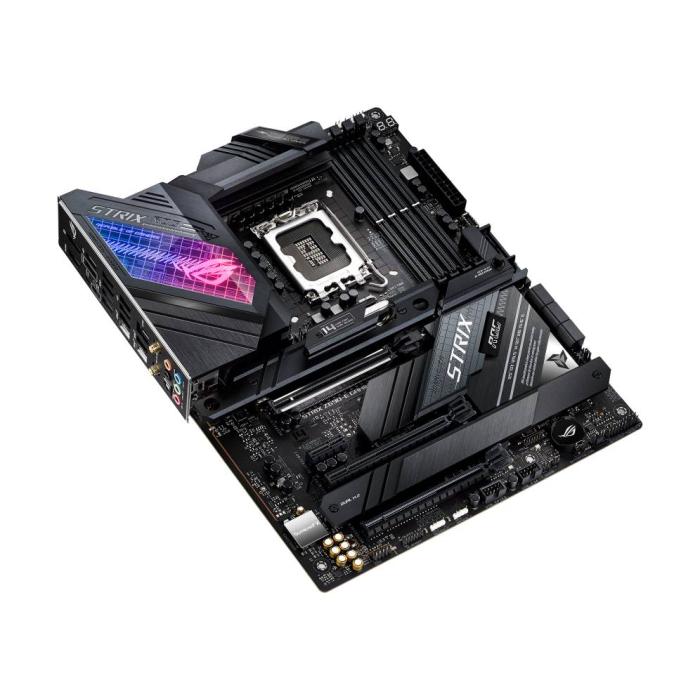

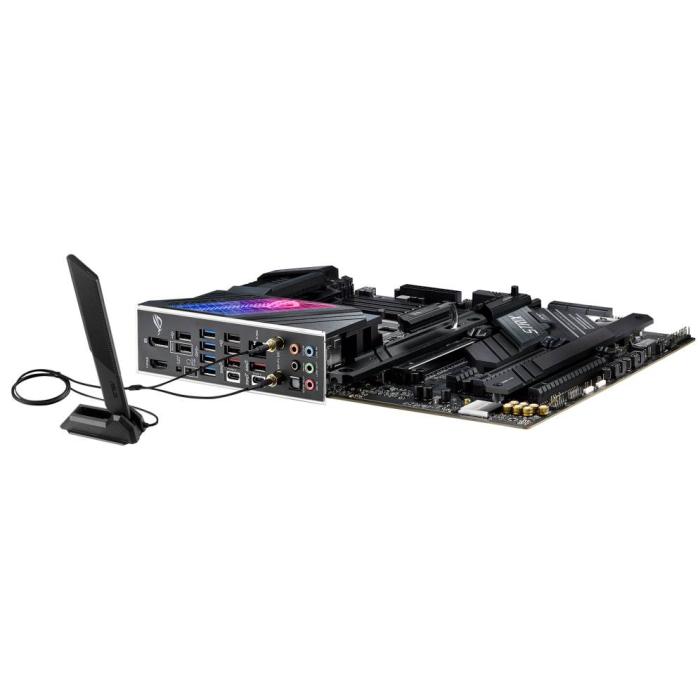

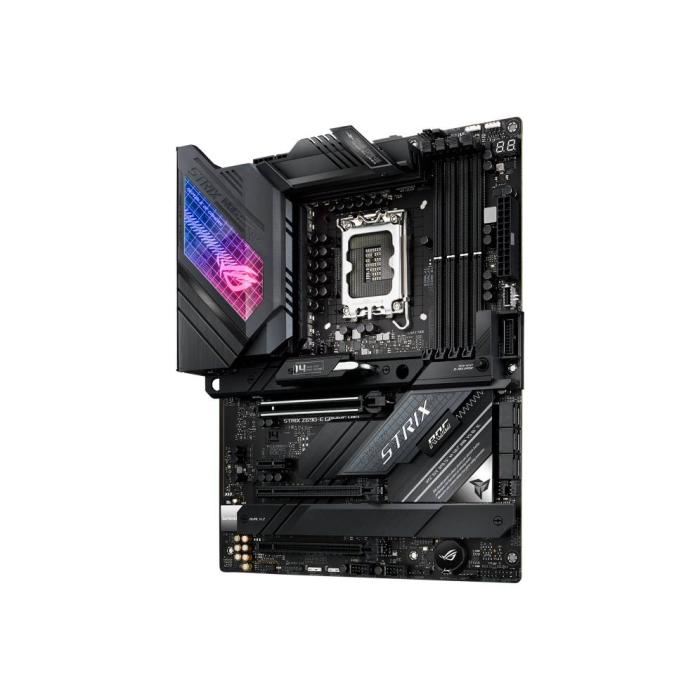

ASUS ROG STRIX Z690-E GAMING WIFI Intel Z690 LGA 1700 ATX

Not avaliable

ASUS ROG STRIX Z690-E GAMING WIFI Intel Z690 LGA 1700 ATX. More info

Amount

Brand: ASUS

SKU: 89743 PRC: 340604 EAN: 4711081494638 PN: 90MB18J0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 6200, 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

ATX Power connector (24-pin): Yes
Power fan connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 6
Front panel audio connector: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
S/PDIF out port: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.2

Features

Motherboard chipset: Intel Z690
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 110 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 1.54 kg
