Description

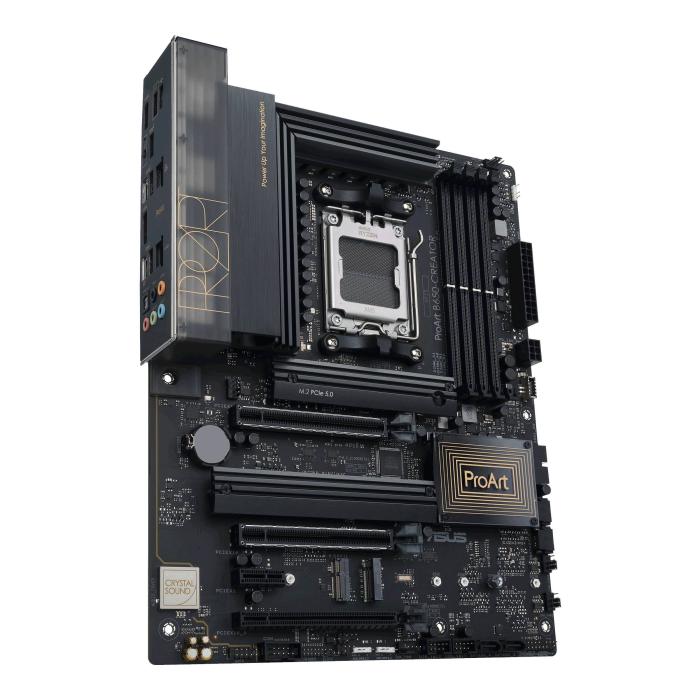

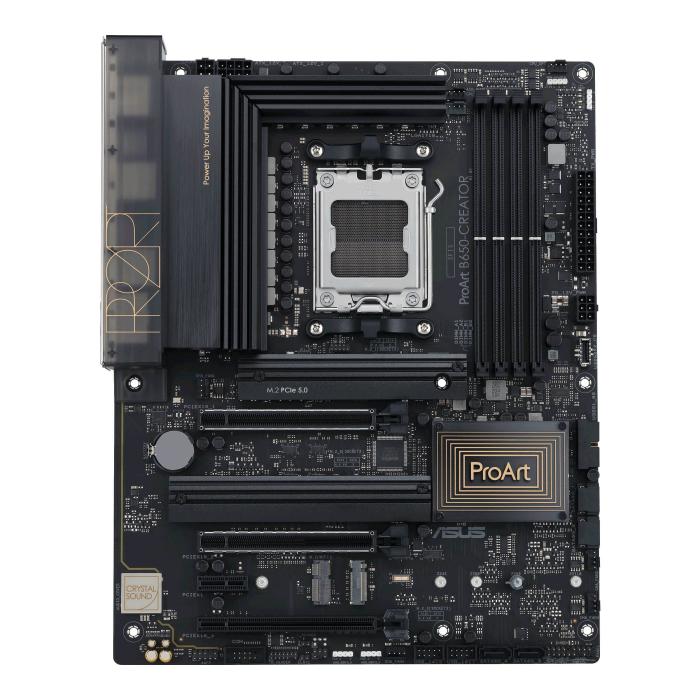

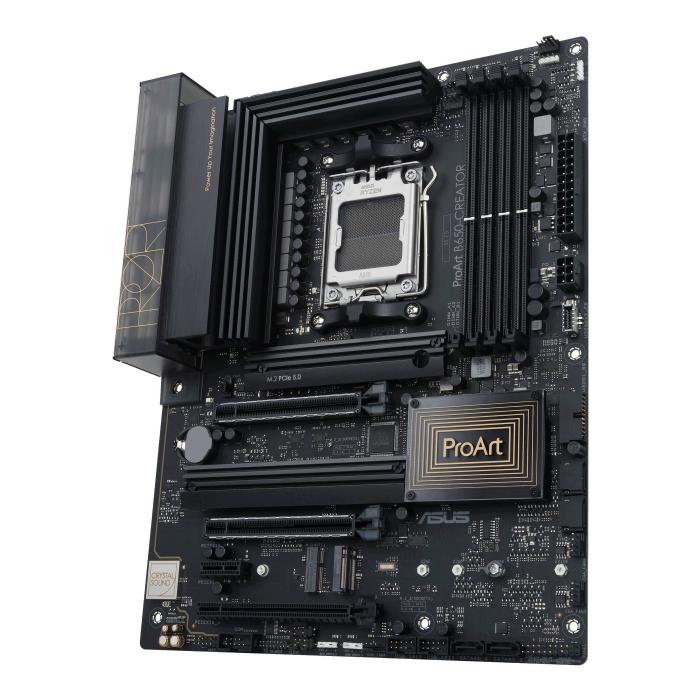

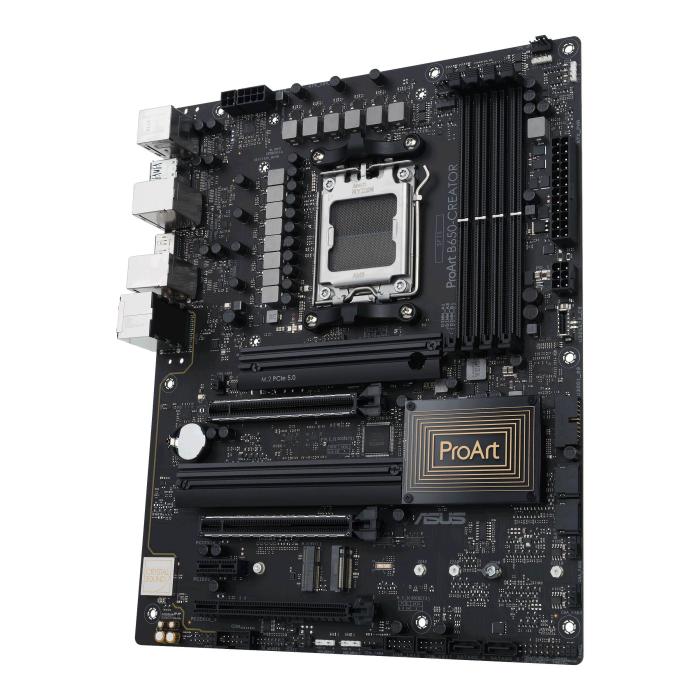

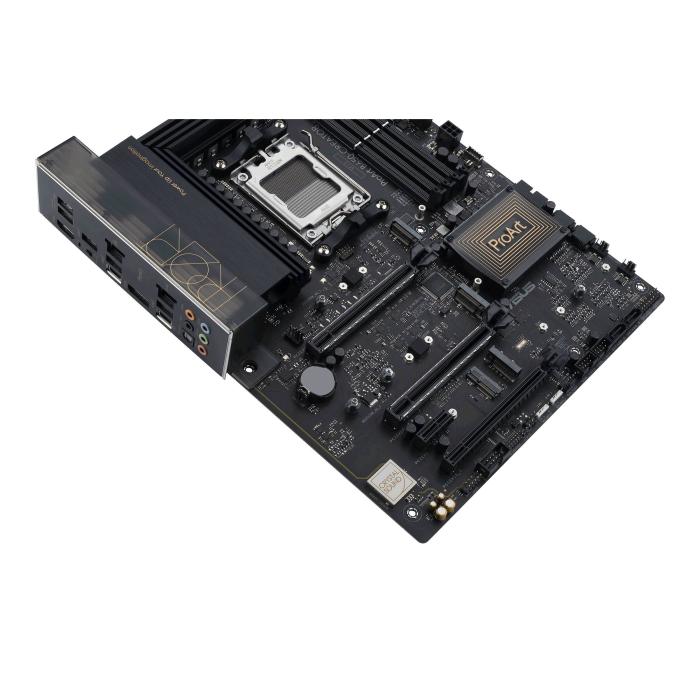

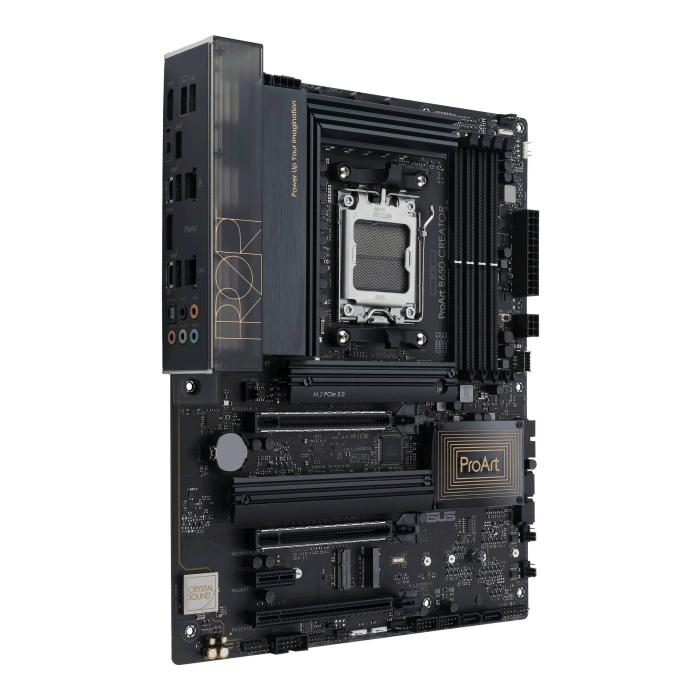

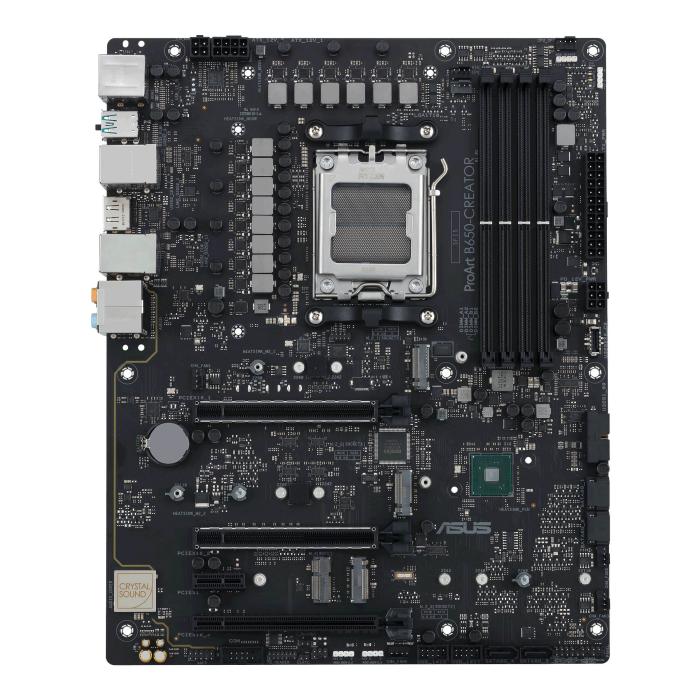

The ASUS ProArt B650-CREATOR motherboard is an ATX board with an AM5 socket that supports AMD Ryzen 7000 Series processors. It features four DIMM slots for DDR5-SDRAM memory, with dual channel and a maximum supported speed of 6400 MHz, as well as compatibility with ECC and non-ECC modules up to a total of 128 GB. For storage it supports HDD and SSD drives via M.2 and SATA III interfaces, and allows RAID configuration at levels 0, 1 and 10. With these characteristics, the ASUS ProArt B650-CREATOR is aimed at builds that require extensive memory capacity and flexible storage options on the AM5 platform.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
- Supported memory clock speed (max): 6400 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

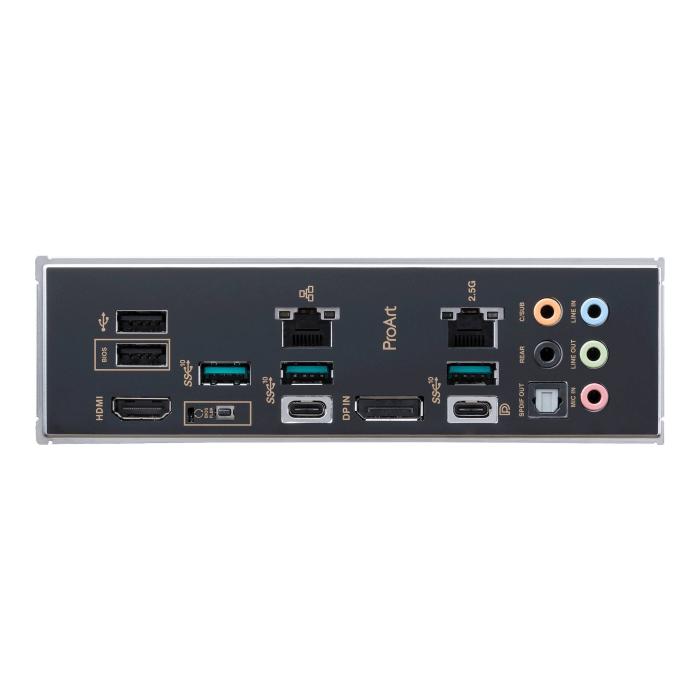

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11 x64
Expansion slots
- PCI Express x4 (Gen 1.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 3
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm

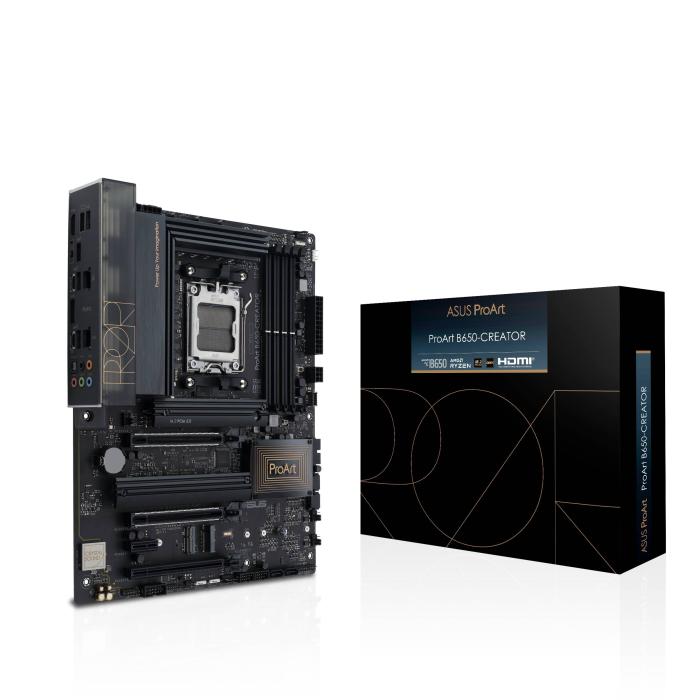

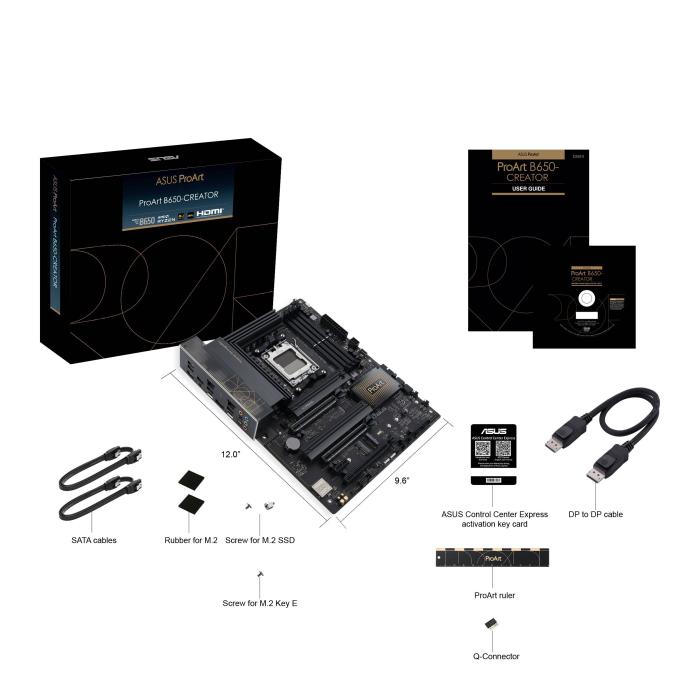

Packaging content
- Cables included: SATA
- User guide: Yes
Other features
- Back-to-BIOS button: Yes
- Number of M.2 (E) slots: 1
