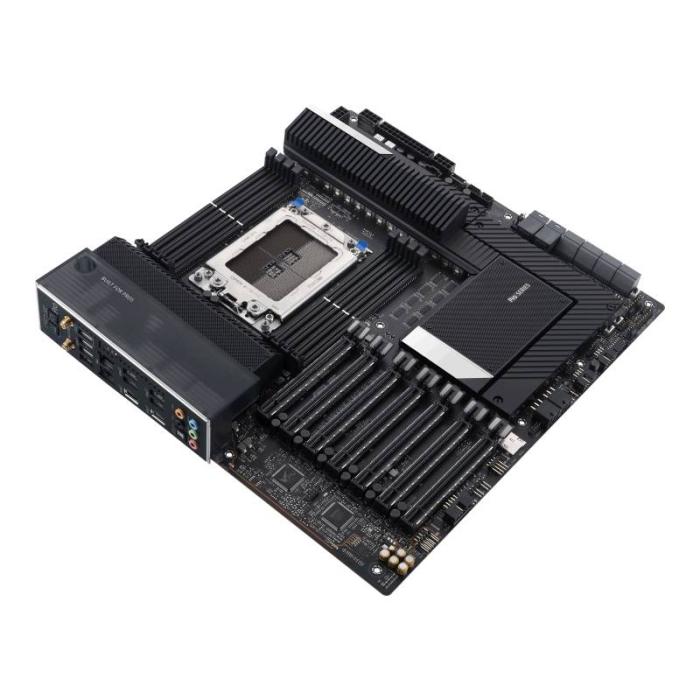

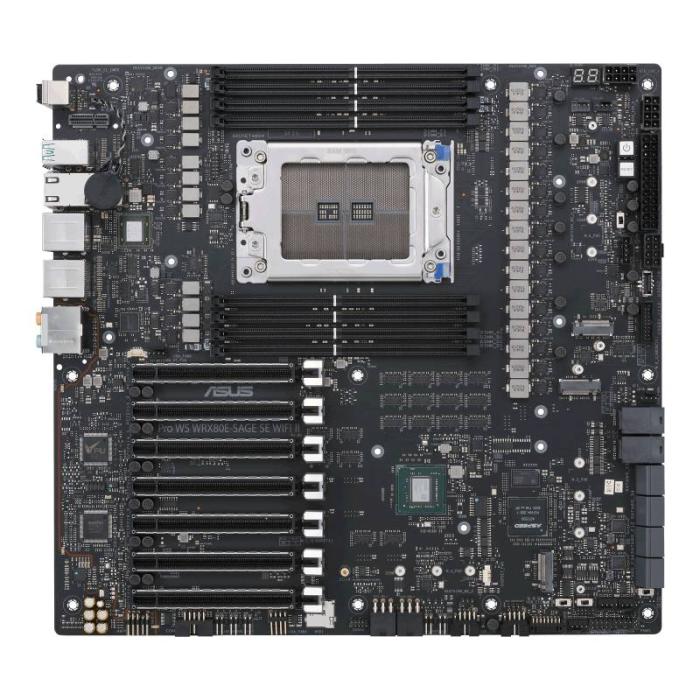

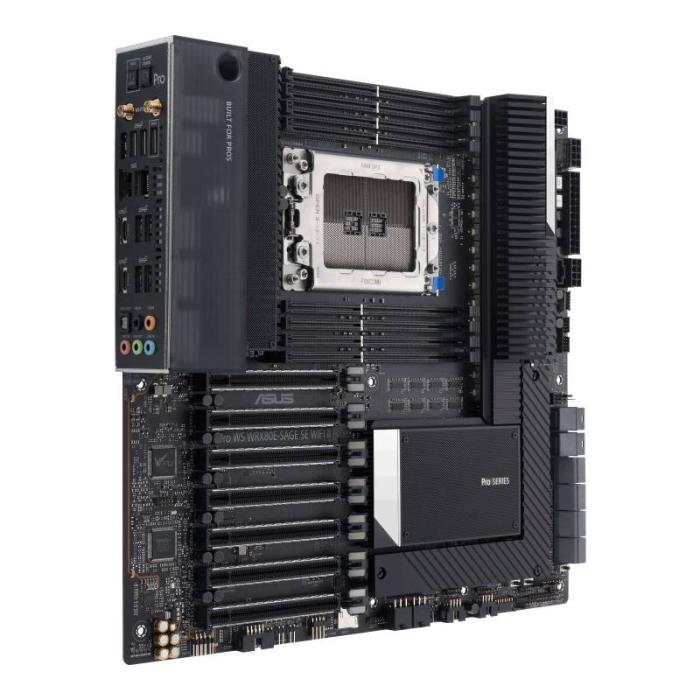

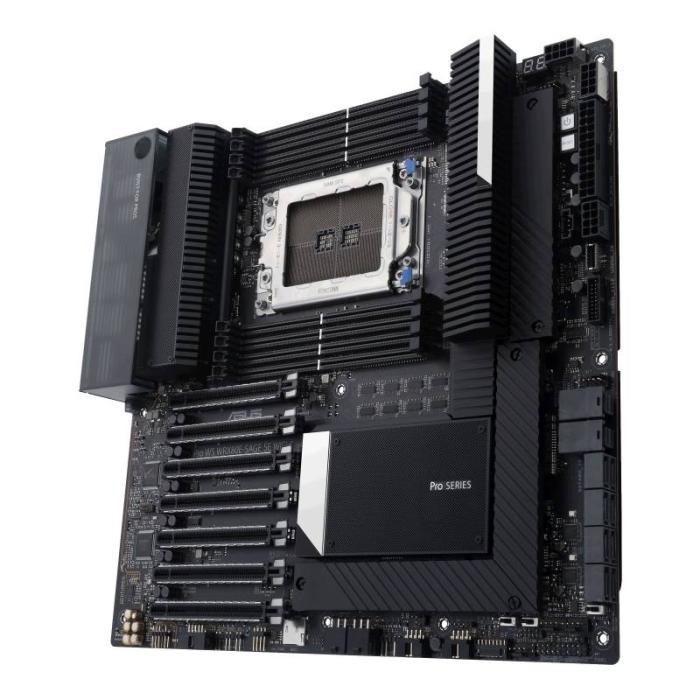

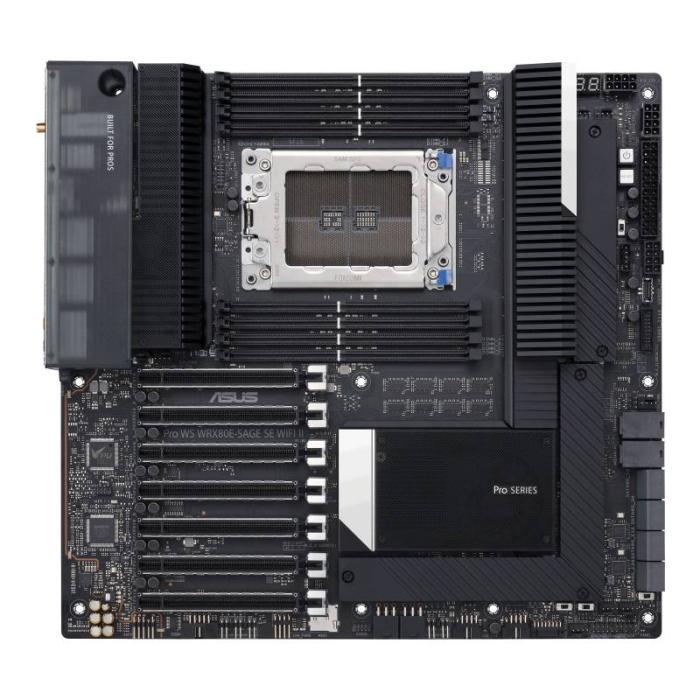

Name: ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Socket sWRX8 Extended ATX
Brand: ASUS
Availability: OutOfStock

ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Socket sWRX8 Extended ATX

Not avaliable

ASUS Pro WS WRX80E-SAGE SE WIFI II AMD WRX80 Socket sWRX8 Extended ATX. More info

Amount

Brand: ASUS

SKU: 100030 PRC: 437146 EAN: 4711387020869 PN: 90MB1E60-M0EAY0

Description

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages, and WIFI 6E

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket sWRX8
Compatible processor series: AMD Ryzen Threadripper PRO 3000 WX-Series
Supported processor sockets: Socket sWRX8

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory channels: Octa-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 2.05 TB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes

Graphics

Parallel processing technology support: 2-Way SLI, 3-Way SLI, 4-Way SLI
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 8
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 6
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet
LAN controller: Intel® X550-AT2
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.3
