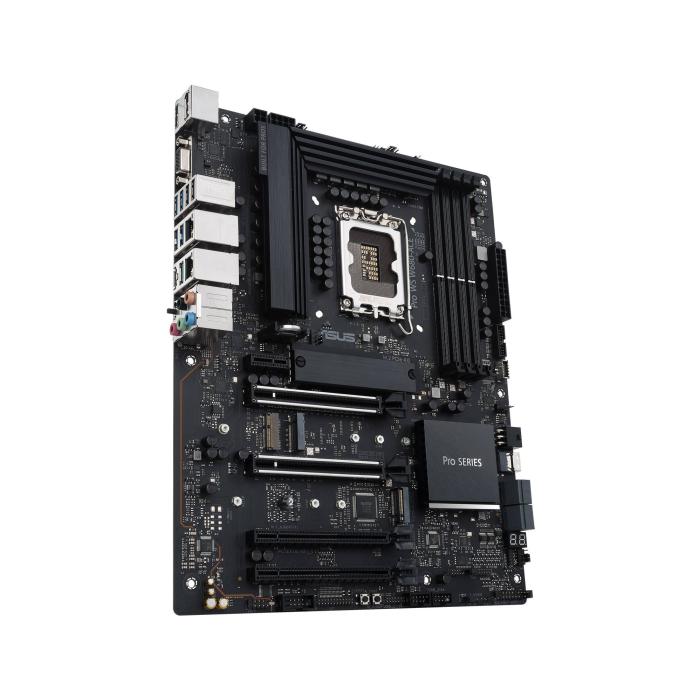

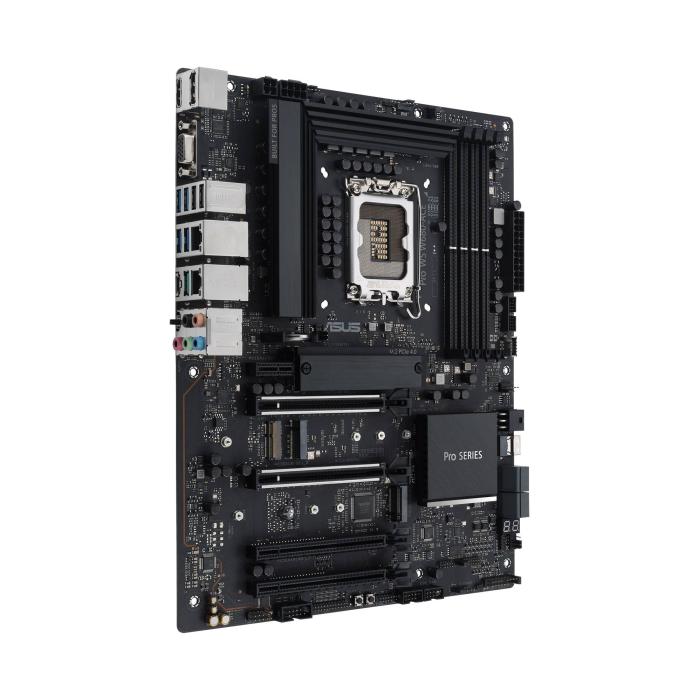

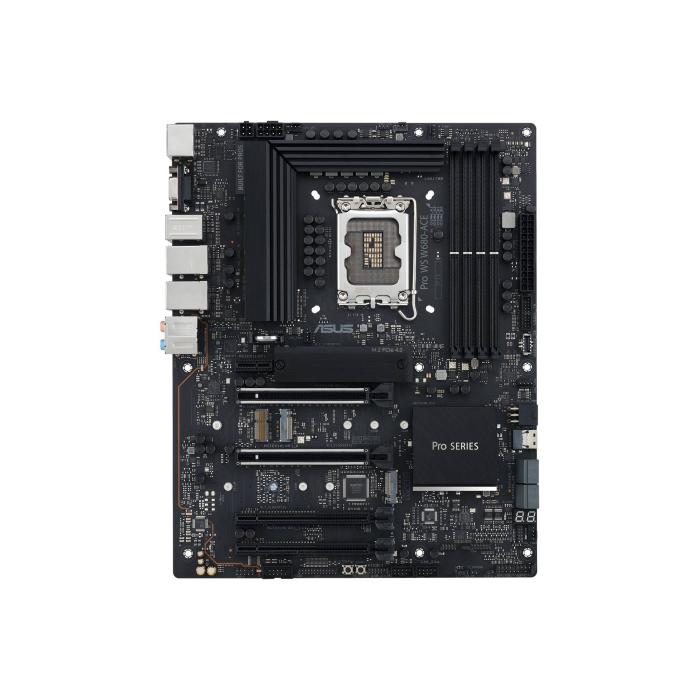

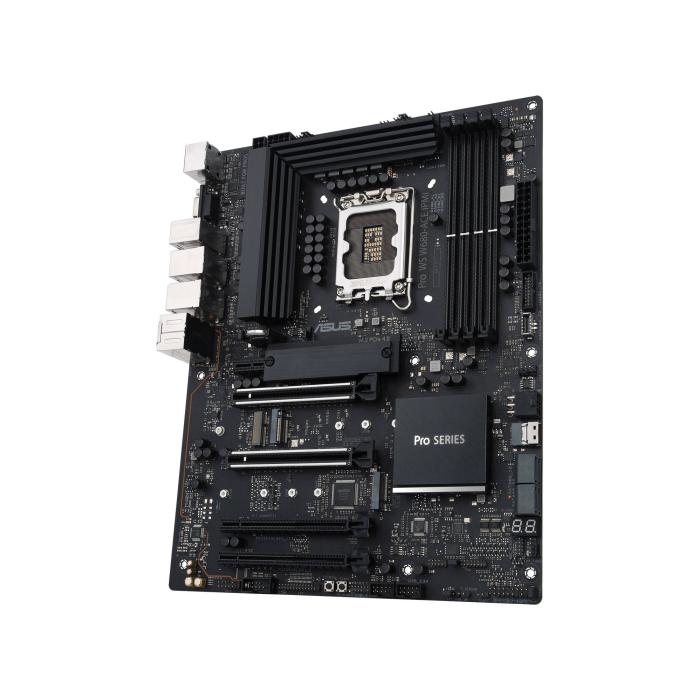

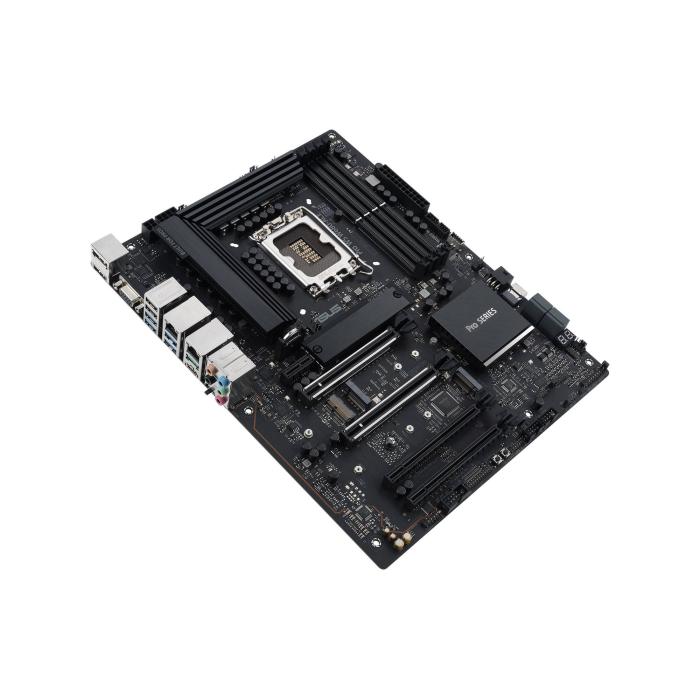

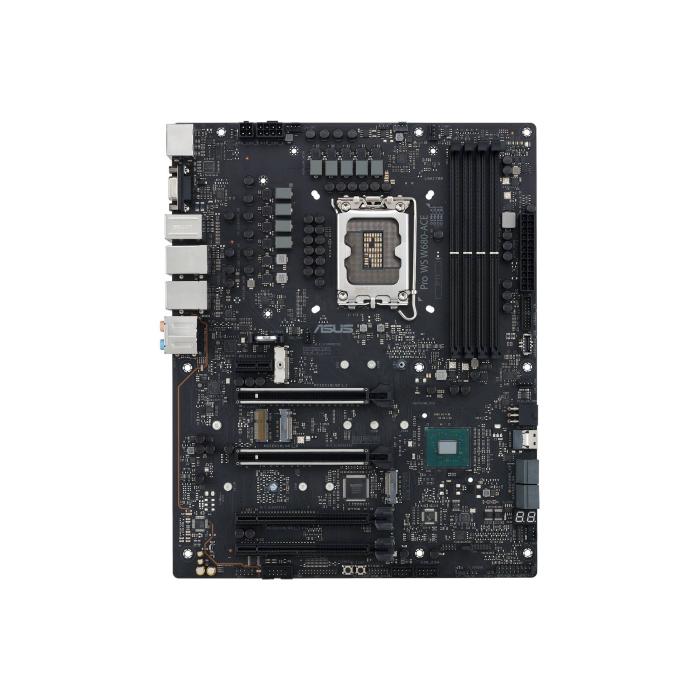

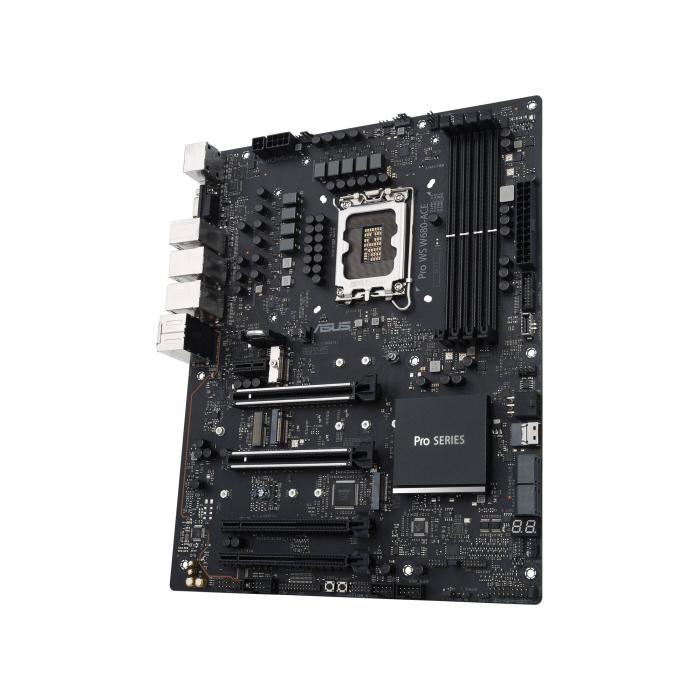

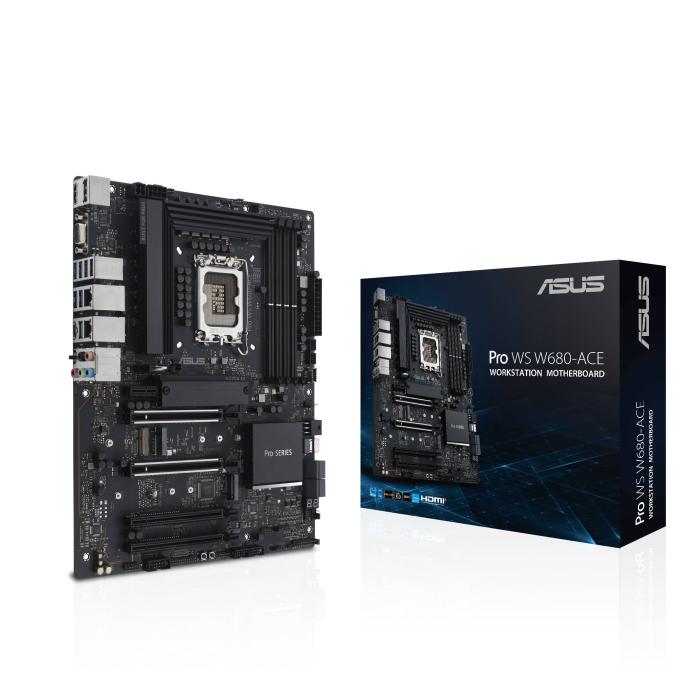

Name: ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX
Brand: ASUS
Price: 477.04 USD
Availability: InStock

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX

$477.04

$477.04 without VAT

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX. More info

Amount

Brand: ASUS

SKU: 100549 PRC: 441513 EAN: 4711387006177 PN: 90MB1DZ0-M0EAY0

Description

Intel® W680 (LGA 1700) ATX motherboard, PCIe® 5.0, DDR5, dual Intel® 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI®, DisplayPort and VGA

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, NVMe, SATA III
Number of HDDs supported: 8
Number of storage drives supported: 11
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Peripheral (Molex) power connectors (4-pin): 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
Integrated SAS ports: 1

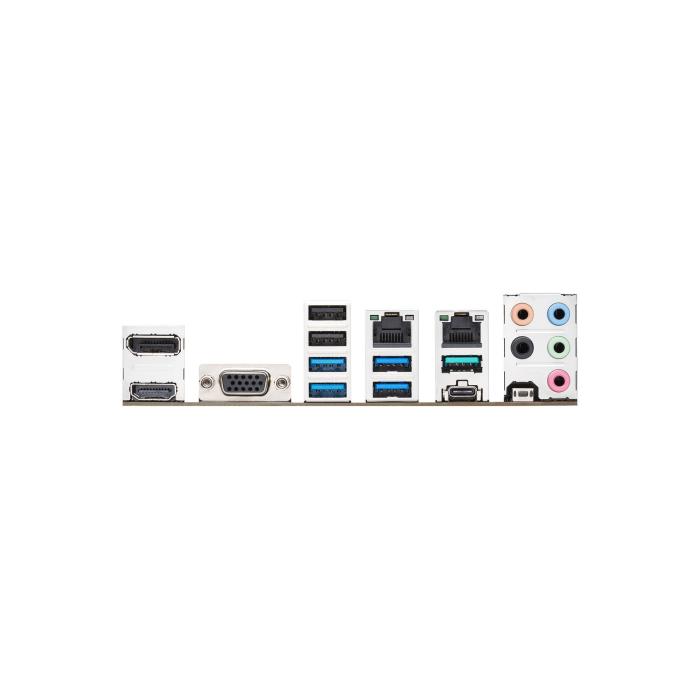

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: Intel W680
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 331 mm
Package depth: 266 mm
Package height: 76 mm
Package weight: 1.18 kg

Weight & dimensions

Width: 305 mm
Depth: 244 mm
Height: 50 mm

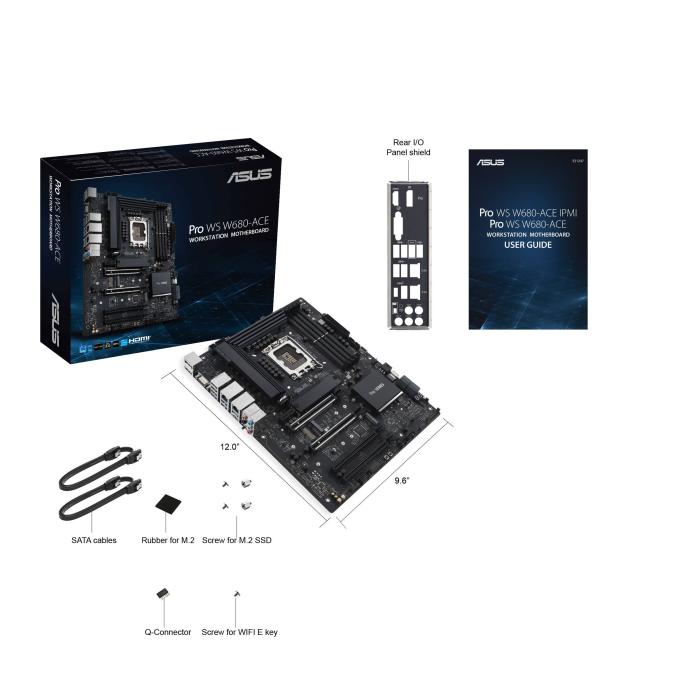

Packaging content

Cables included: SATA
User guide: Yes

Other features

Weight: 997 g
Back-to-BIOS button: Yes
Number of M.2 (E) slots: 1
