ASUS PRIME Z790-P WIFI-CSM Intel Z790 LGA 1700 ATX

$218.05
$218.05 without VAT

ASUS PRIME Z790-P WIFI-CSM Intel Z790 LGA 1700 ATX.   More info

Brand: ASUS
SKU: 107687 PRC: 542799 EAN: 4711081937258 PN: 90MB1CJ0-M0EAYC

Description

Intel Z790, Socket LGA1700, 4 x DIMM, Max. 128GB, DDR5, Realtek 2.5Gb Ethernet, Wi-Fi 6, 192 (128+64) Mb Flash ROM, UEFI AMI BIOS, ATX

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Supported processor sockets: LGA 1700

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
  • Supported memory clock speed (max): 7200 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 7

Graphics

  • Parallel processing technology support: Not supported

Internal I/O

  • USB 2.0 connectors: 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 3
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • Thunderbolt headers: 1
  • 12V power connector: Yes

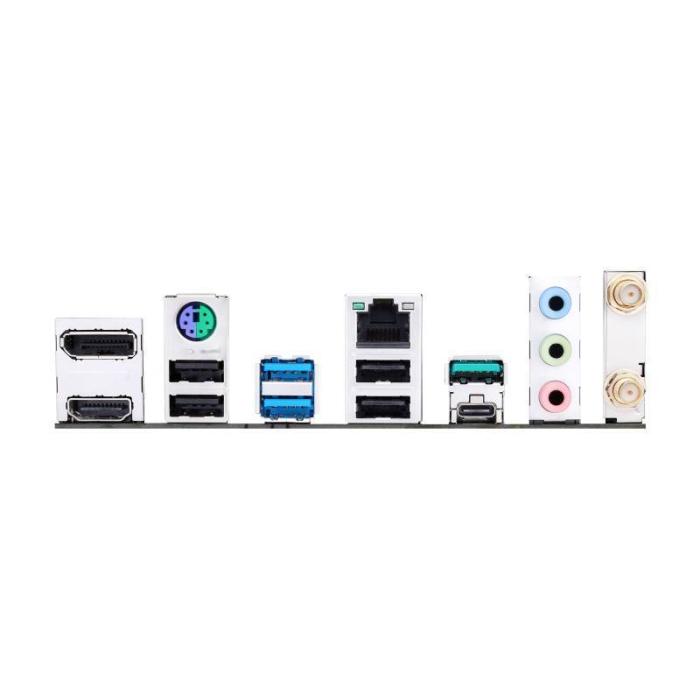

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Headphone outputs: 1
  • Line-in: Yes
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2

Features

  • Motherboard chipset: Intel Z790
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 3
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 3

BIOS

  • BIOS memory size: 192 Mbit
  • BIOS type: UEFI AMI

Weight & dimensions

  • Width: 305 mm
  • Depth: 234 mm

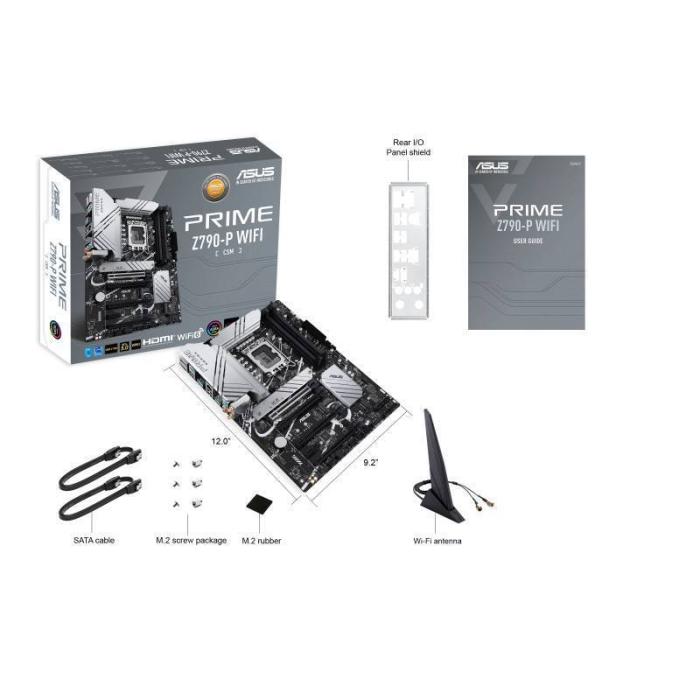

Packaging content

  • Cables included: SATA
