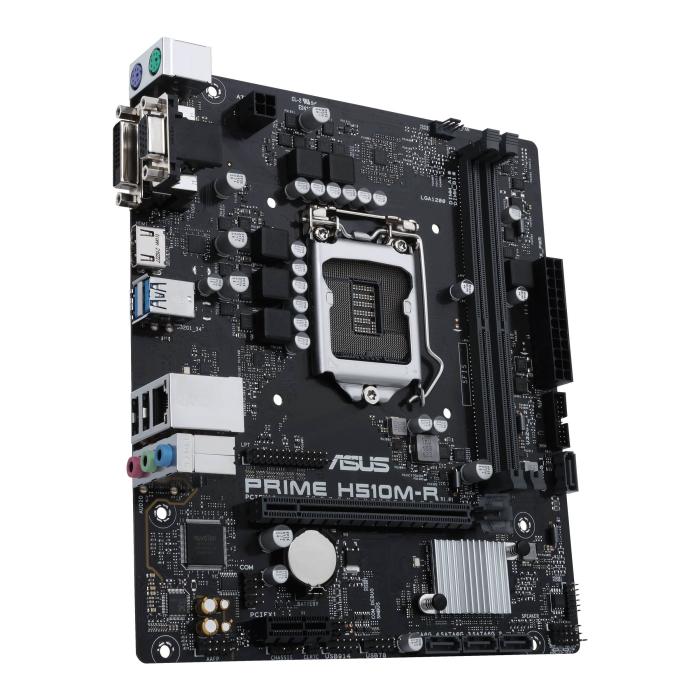

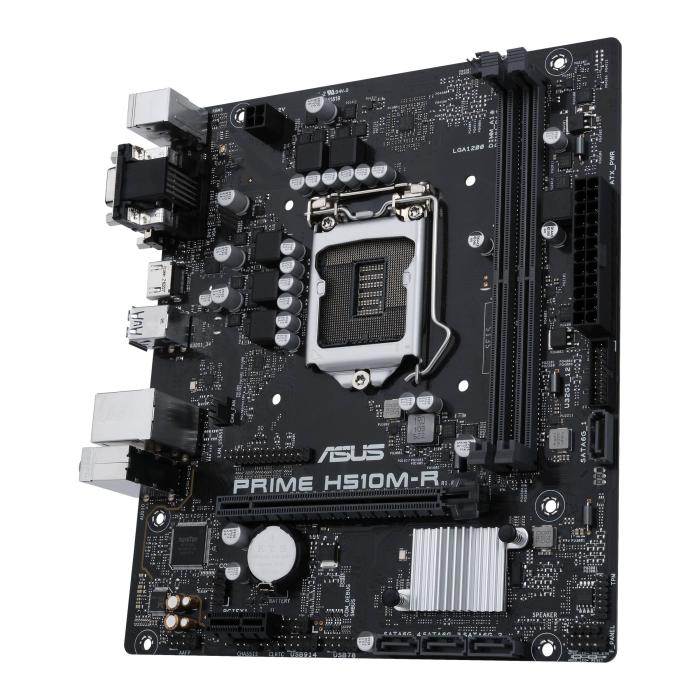

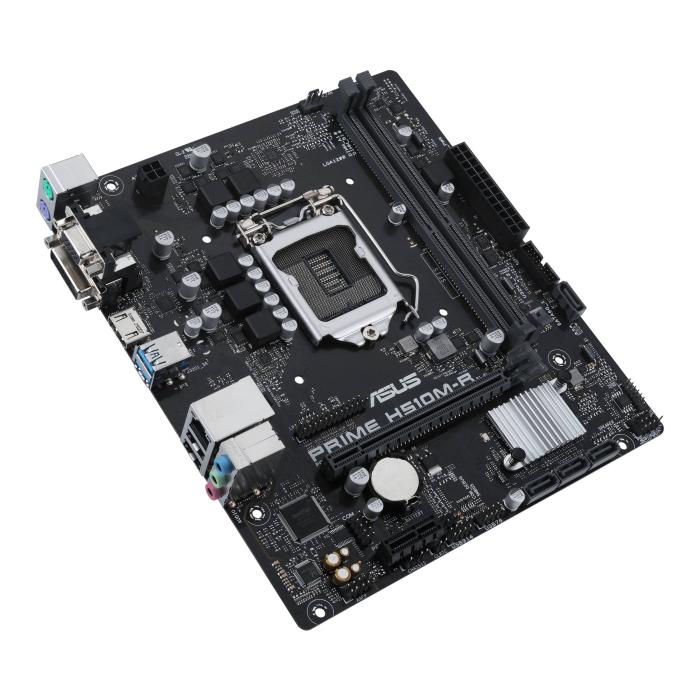

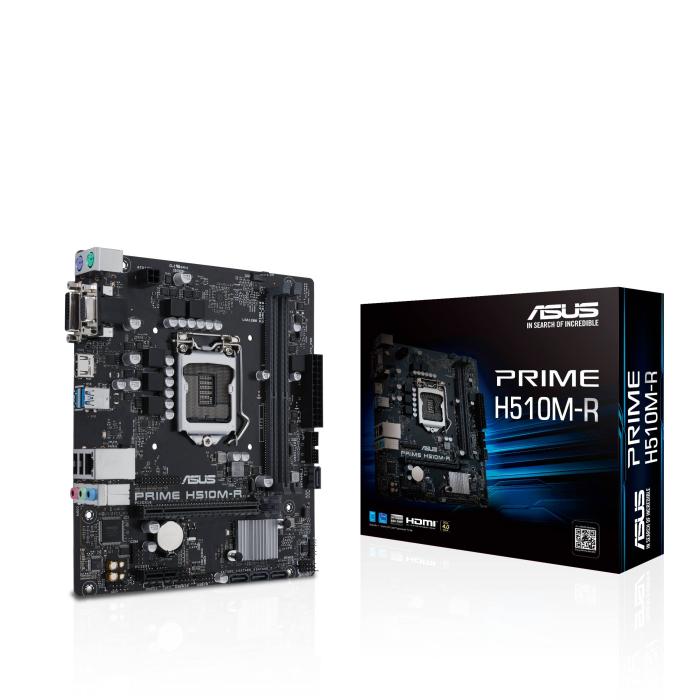

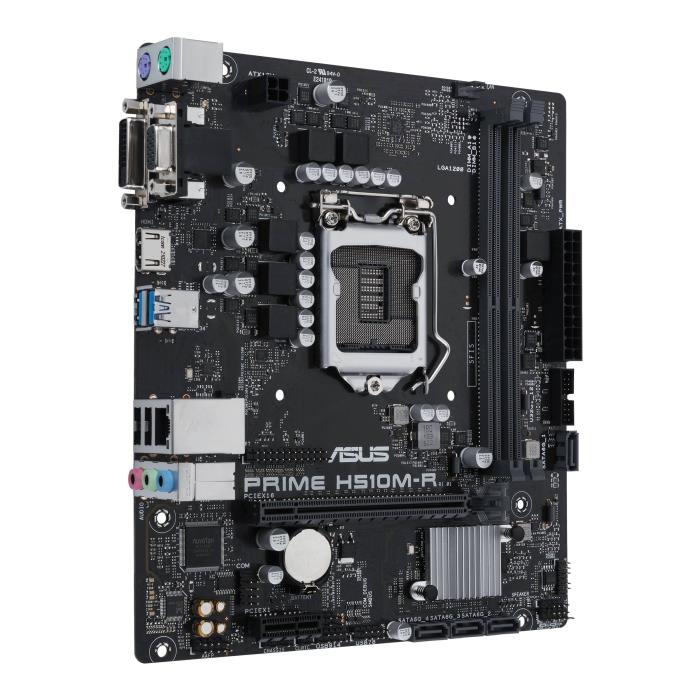

Name: ASUS PRIME H510M-R Intel H510 LGA 1200 (Socket H5) micro ATX
Brand: ASUS
Price: 71.41 USD
Availability: InStock

ASUS PRIME H510M-R Intel H510 LGA 1200 (Socket H5) micro ATX

$71.41

$71.41 without VAT

Amount

Brand: ASUS

SKU: 89876 PRC: 341486 EAN: 4711081299394 PN: 90MB18C0-M0ECY0

Description

ASUS PRIME H510M-R, Intel, LGA 1200 (Socket H5), Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™..., LGA 1200 (Socket H5), DDR4-SDRAM, 64 GB

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1200 (Socket H5)

Memory

Maximum internal memory: 64 GB
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3200 MHz
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
Number of storage drives supported: 4

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Audio connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
Number of EATX power connectors: 1
CPU fan connector: Yes
Number of chassis fan connectors: 1
TPM connector: Yes
Parallel connector: Yes
Serial port headers: 1
12V power connector: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
DVI-D ports quantity: 1
Headphone outputs: 3
Microphone in: Yes
USB connector type: USB Type-A

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: Intel H510
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Power source type: ATX
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 213 mm
Depth: 188 mm

Packaging content

Cables included: SATA
