Name: ASUS PRIME H510M-E R2.0 Intel H470 LGA 1200 (Socket H5) micro ATX
Brand: ASUS
Price: 69.51 USD
Availability: InStock

ASUS PRIME H510M-E R2.0 Intel H470 LGA 1200 (Socket H5) micro ATX

$69.51

$69.51 without VAT

ASUS PRIME H510M-E R2.0 Intel H470 LGA 1200 (Socket H5) micro ATX. More info

Amount

Brand: ASUS

SKU: 101758 PRC: 452344 EAN: 4711387234945 PN: 90MB1FQ0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1200 (Socket H5)

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 5

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

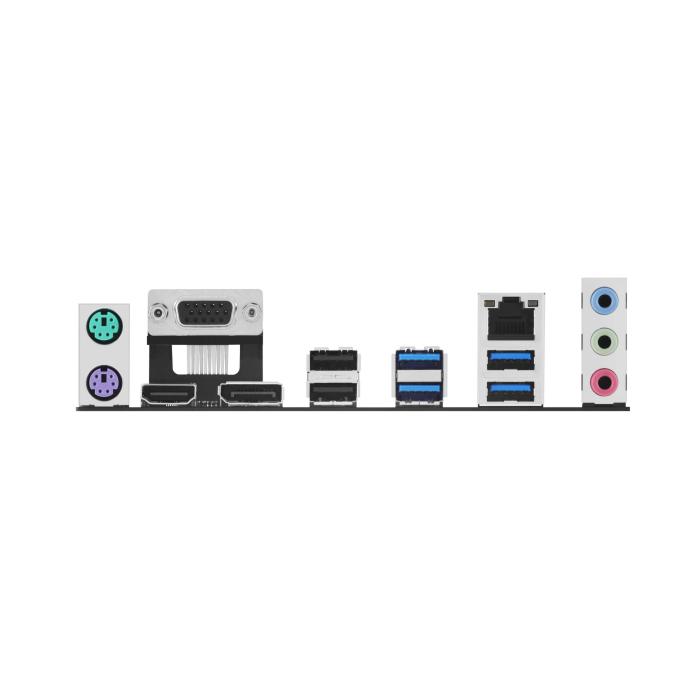

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: Intel H470
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Packaging data

Package width: 260 mm
Package depth: 270 mm
Package height: 51.5 mm
Package weight: 1.03 kg

Weight & dimensions

Width: 226 mm
Depth: 211 mm

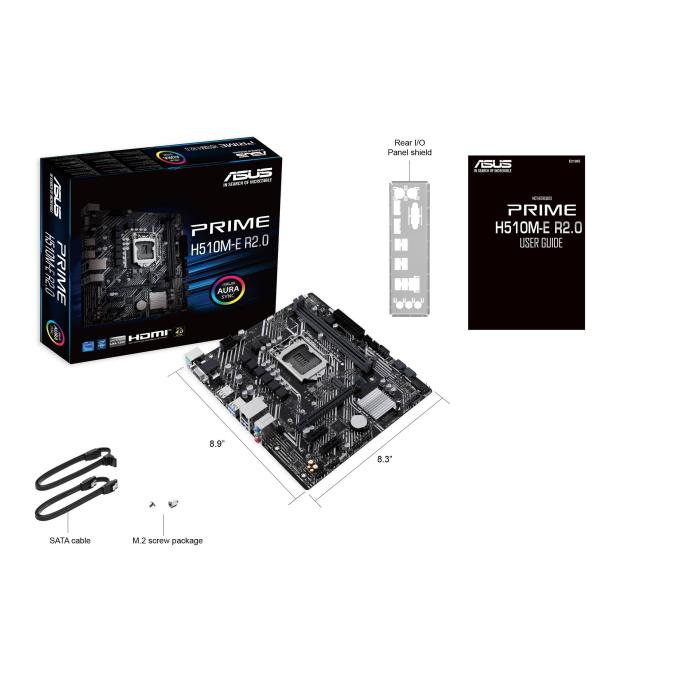

Packaging content

Cables included: SATA
User guide: Yes
