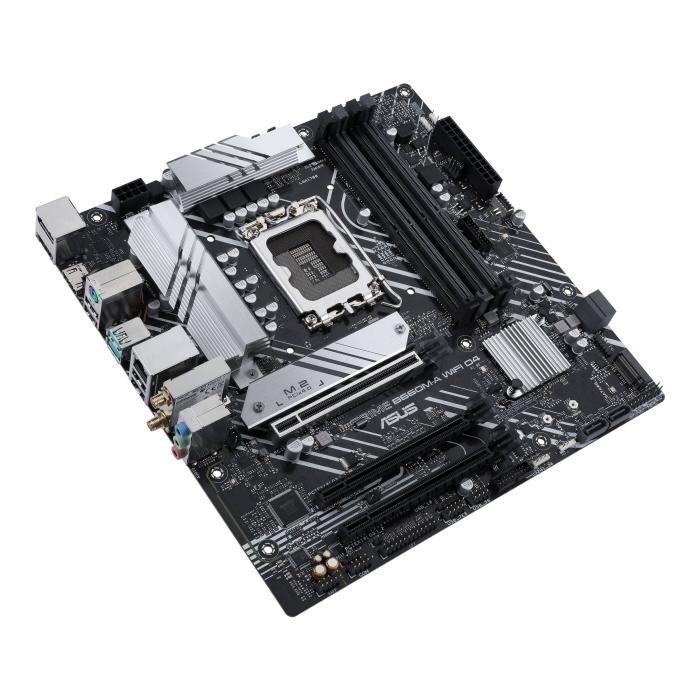

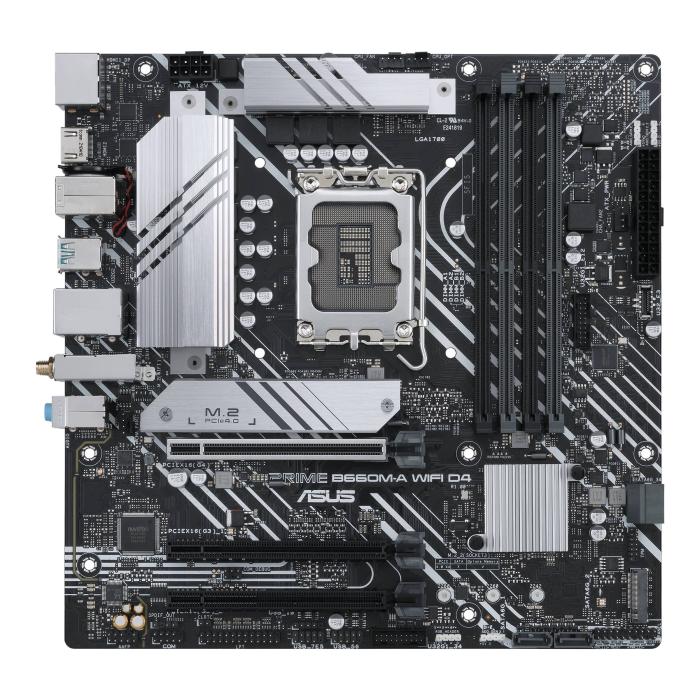

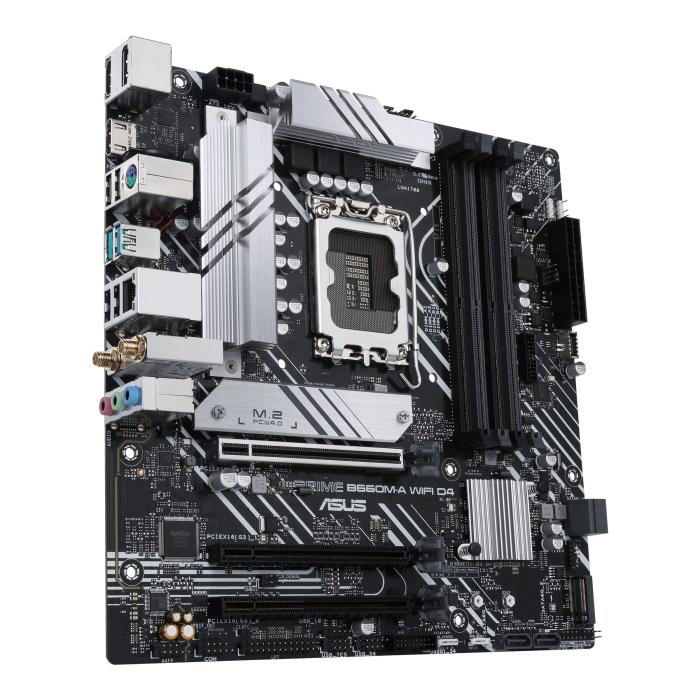

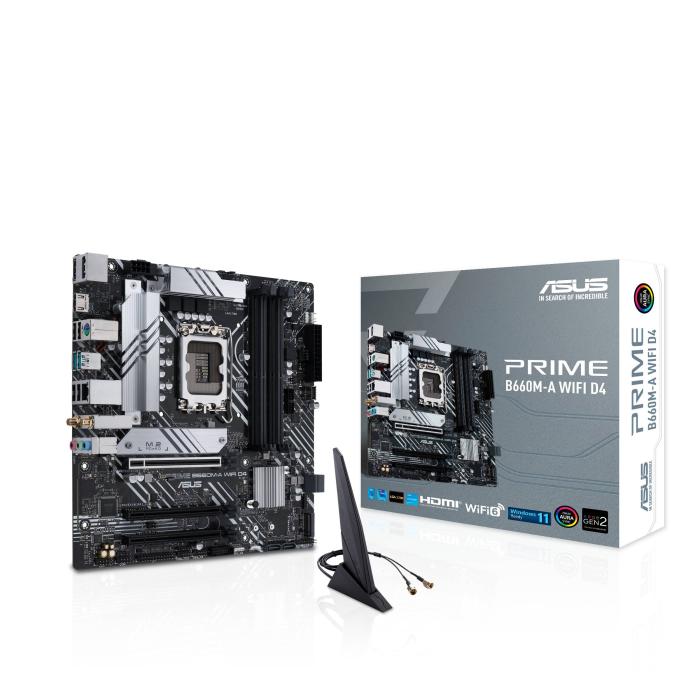

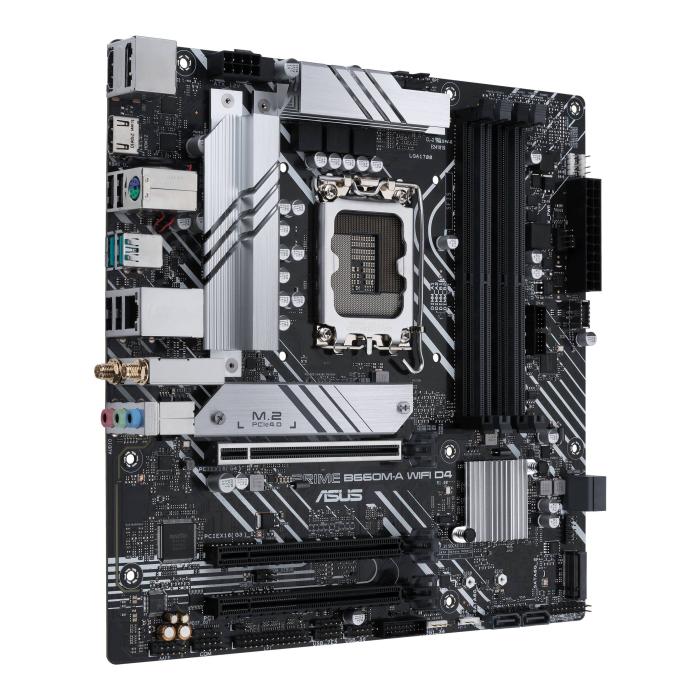

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX

$139.97
$139.97 without VAT

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX.   More info

Brand: ASUS
SKU: 112919 PRC: 344487 EAN: 4711081518105 PN: 90MB1AE0-M0EAY0

Description

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pe
  • Maximum number of SMP processors: 1

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: Non-ECC
  • Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4400, 4600, 4800, 5000, 5333 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA
  • RAID levels: 0, 1, 5, 10

Graphics

  • Number of displays supported: 3

Internal I/O

  • USB 2.0 connectors: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
  • Number of SATA III connectors: 4
  • S/PDIF out connector: Yes
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 2
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • 12V power connector: Yes
  • RGB LED pin header: Yes

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 2
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.4
  • Headphone outputs: 1
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2

Features

  • Motherboard chipset: Intel B660
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x16 (Gen 3.x) slots: 2
  • PCI Express x16 (Gen 4.x) slots: 1
  • Number of M.2 (M) slots: 2

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit

Logistics data

  • Harmonized System (HS) code: 84733020

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm
  • Height: 60 mm

Packaging content

  • Cables included: SATA
  • Drivers included: Yes

Other features

  • Weight: 819 g
