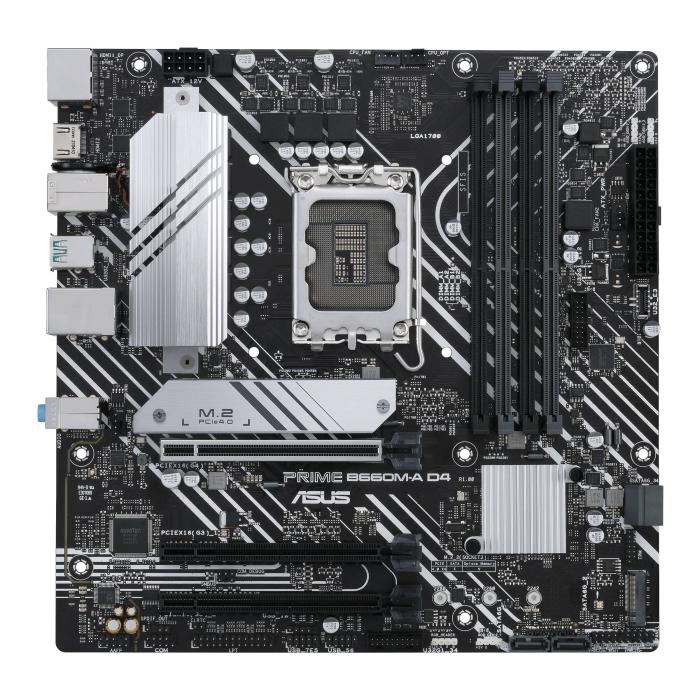

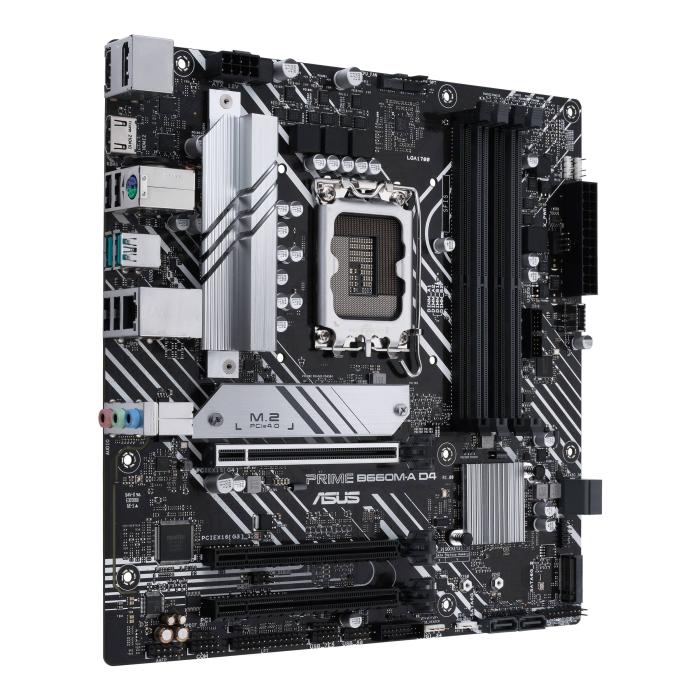

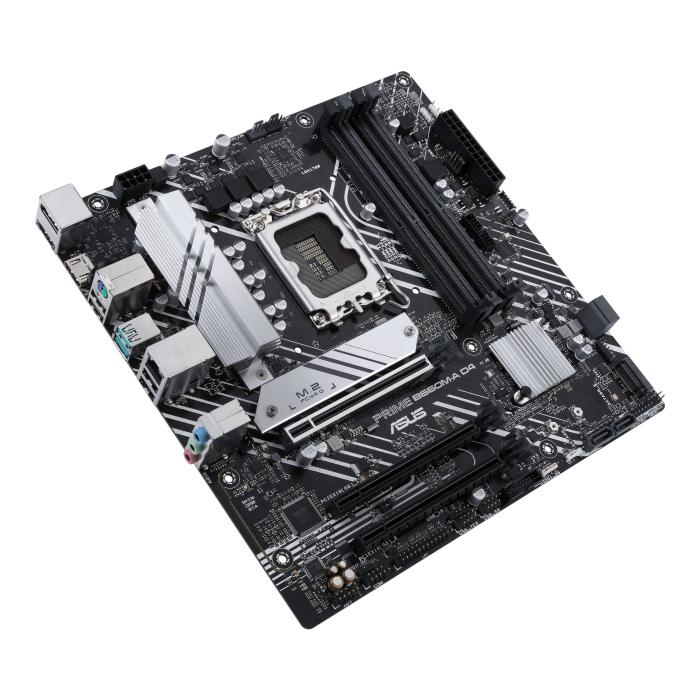

Name: ASUS PRIME B660M-A D4 Intel B660 LGA 1700 micro ATX
Brand: ASUS
Availability: OutOfStock

ASUS PRIME B660M-A D4 Intel B660 LGA 1700 micro ATX

Not avaliable

ASUS PRIME B660M-A D4 Intel B660 LGA 1700 micro ATX. More info

Amount

Brand: ASUS

SKU: 112775 PRC: 344482 EAN: 4711081508014 PN: 90MB19K0-M0EAY0

Description

LGA 1700, Intel B660 Chipset, 4 x DDR4-SDRAM up to 128GB, LAN, 1 x RJ-45, 4 x SATA III, 2 x M.2(M), UEFI AMI, Micro ATX

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5333 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
Parallel connector: Yes
RGB LED pin header: Yes

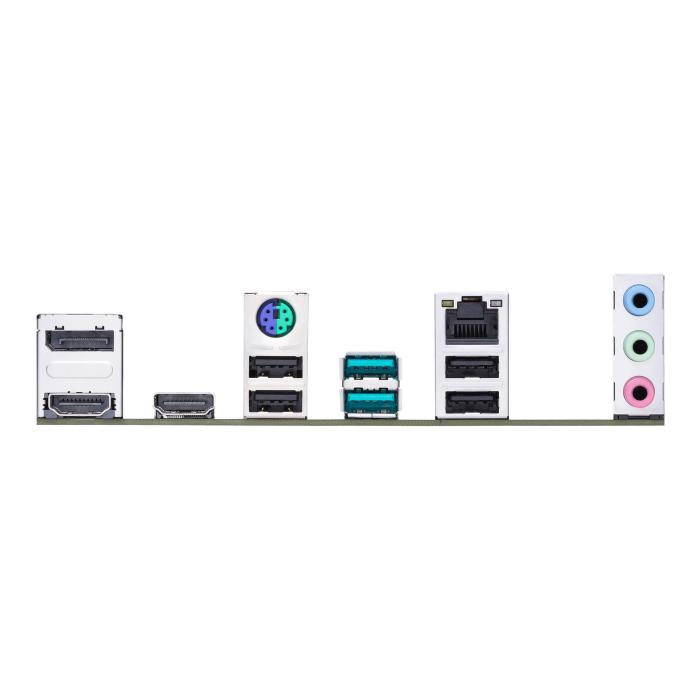

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 3
USB connector type: USB Type-A

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: Intel B660
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 60 mm

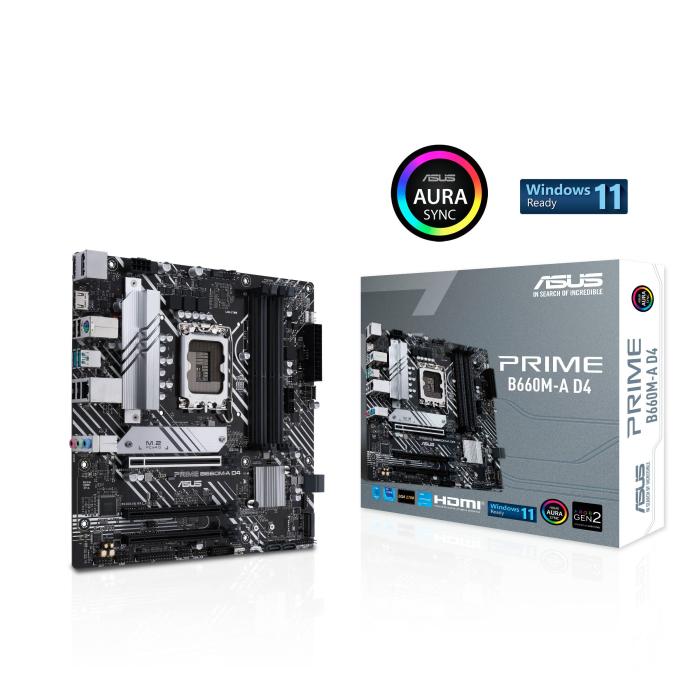

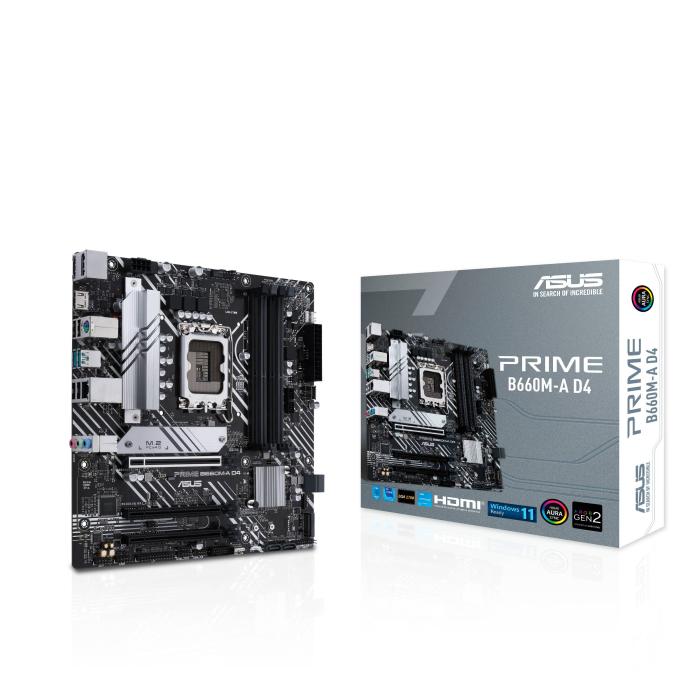

Packaging content

Cables included: SATA

Other features

Weight: 819 g
