Description

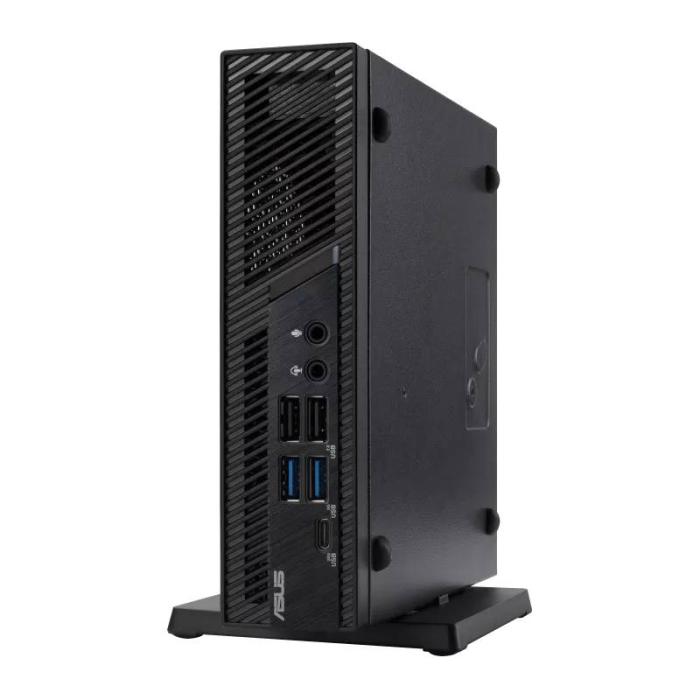

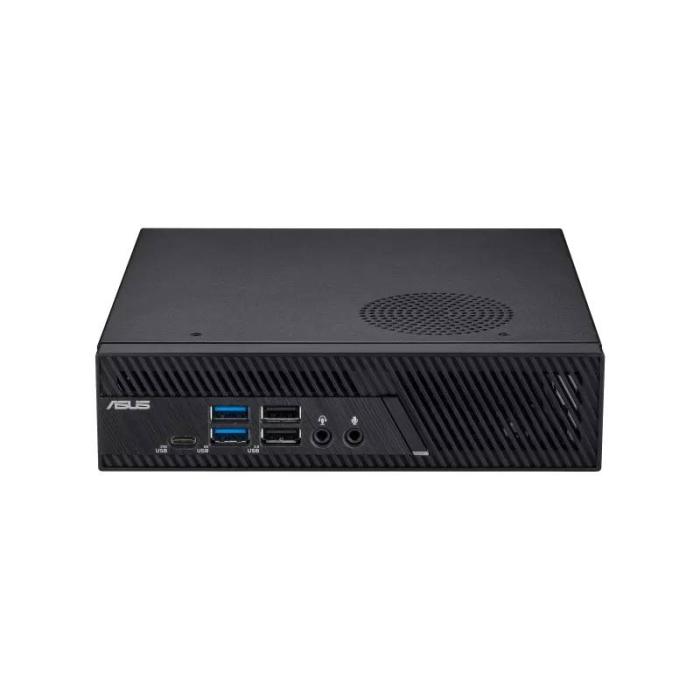

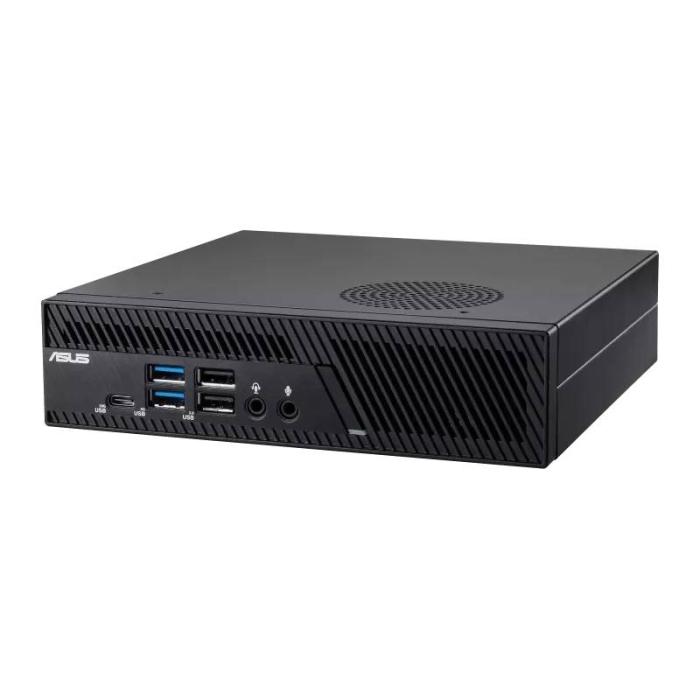

The ASUS PB63-B5046AH mini PC, in black, incorporates a 13th generation Intel Core i5-13400 processor with 10 cores, of which 6 are performance cores and 4 are efficiency cores, and 16 execution threads. It reaches a turbo frequency of 4.6 GHz and a base frequency of 2.5 GHz on the performance cores, while the efficiency cores start at 1.8 GHz and reach 3.3 GHz in turbo. It has 20 MB of Smart Cache and a power consumption ranging from 65 W base power to 154 W maximum turbo power. The internal memory is DDR5-SDRAM type and the device comes with Windows 11 Pro installed. Its dimensions are 175 x 44.2 x 175 mm (width x height x depth) and its weight is 1.18 kg, a compact format that allows it to be placed on the desktop taking up hardly any space.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor generation: 13th gen Intel® Core™ i5
- Processor model: i5-13400
- Processor cores: 10
- Processor threads: 16
- Processor boost frequency: 4.6 GHz
- Performance cores: 6
- Efficient cores: 4
- Performance-core Max Turbo Frequency: 4.6 GHz
- Efficient-core Max Turbo Frequency: 3.3 GHz
- Performance-core base frequency: 2.5 GHz
- Efficient-core base frequency: 1.8 GHz
- Processor cache: 20 MB
- Processor cache type: Smart Cache
- Processor base power: 65 W
- Maximum turbo power: 154 W
Memory
- Internal memory: 16 GB
- Internal memory type: DDR5-SDRAM
- Memory slots: 2x SO-DIMM
Storage
- Total storage capacity: 512 GB
- Storage media: SSD
- Optical drive type: No
- Total SSDs capacity: 512 GB
- Number of SSDs installed: 1
- SSD capacity: 512 GB
- SSD interface: PCI Express 4.0
- NVMe: Yes
- SSD form factor: M.2
Graphics
- Discrete graphics card: No
- On-board graphics card: Yes
- Discrete graphics card model: Not available
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel® UHD Graphics
- On-board graphics card model: Intel UHD Graphics 730
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Antenna type: 2x2
- Bluetooth: Yes
- Bluetooth version: 5.2
Ports & interfaces
- USB 2.0 ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- DisplayPorts quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- Microphone in: Yes
- Headphone outputs: 1
- Combo headphone/mic port: Yes
- DC-in jack: Yes
Design
- Chassis type: Mini PC
- Colour name: Black
- Placement supported: Horizontal/Vertical
- VESA mounting: Yes
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black
Performance
- Market positioning: Business
- Product type: Mini PC
Software
- Operating system installed: Windows 11 Pro
- Operating system architecture: 64-bit
Weight & dimensions
- Width: 175 mm
- Depth: 175 mm
- Height: 44.2 mm
- Weight: 1.18 kg
- Package width: 360 mm
- Package depth: 240 mm
- Package height: 68 mm
- Package weight: 2.61 kg
Packaging content
- Display included: No
