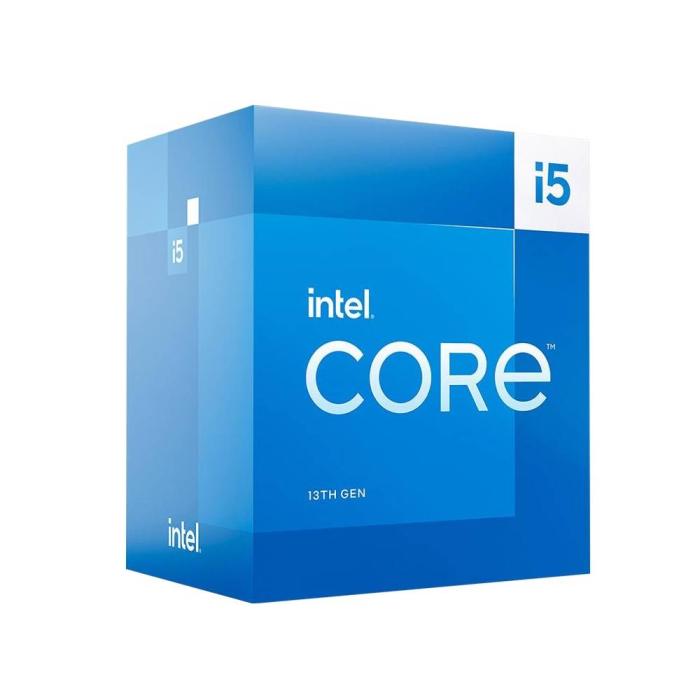

Intel Core i5-13400 processor 20 MB Smart Cache Box

$150.45

$150.45 without VAT

Amount

Brand: INTEL

SKU: 116502 PRC: 419561 EAN: 5032037260275 PN: BX8071513400

Description

Specifications

Processor

Processor manufacturer: Intel
Processor generation: 13th gen Intel® Core™ i5
Processor model: i5-13400
Processor family: Intel® Core™ i5
Processor cores: 10
Processor socket: LGA 1700
Processor threads: 16
Processor operating modes: 64-bit
Performance cores: 6
Efficient cores: 4
Processor boost frequency: 4.6 GHz
Performance-core boost frequency: 4.6 GHz
Performance-core base frequency: 2.5 GHz
Efficient-core boost frequency: 3.3 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 20 MB
Processor cache type: Smart Cache
Package type: Box
Cooler included: Yes
Processor base power: 65 W
Maximum turbo power: 154 W
Maximum number of DMI lanes: 8
Processor codename: Raptor Lake
Processor ARK ID: 230495

Memory

Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM
Memory channels: Dual-channel
Non-ECC: Yes
Memory bandwidth (max): 76.8 GB/s

Graphics

On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel UHD Graphics 730
On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card base frequency: 300 MHz
On-board graphics card dynamic frequency (max): 1550 MHz
Number of displays supported (on-board graphics): 4
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels
On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
On-board graphics card ID: 0x4682/0xA782
Discrete graphics card model: Not available
Number of execution units: 24
Multi-Format Codec Engines: 1

Features

Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Use conditions: PC/Client/Tablet
Maximum number of PCI Express lanes: 20
PCI Express slots version: 4.0, 5.0
PCI Express configurations: 1x16+1x4, 2x8+1x4
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
CPU configuration (max): 1
Embedded options available: Yes
Direct Media Interface (DMI) Revision: 4.0
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): 740.17B1

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel® Speed Shift Technology: Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Thread Director: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel® OS Guard: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Turbo Boost Max Technology 3.0: No
Intel® Boot Guard: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Intel® Standard Manageability (ISM): Yes

Operational conditions

Tjunction: 100 °C

Technical details

OpenCL version: 3.0
Launch date: Q1'23

Logistics data

Harmonized System (HS) code: 8542310001

Weight & dimensions

Processor package size: 45 x 37.5 mm

Other features

L2 cache: 9728 KB
Maximum internal memory: 192 GB
Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
