Description

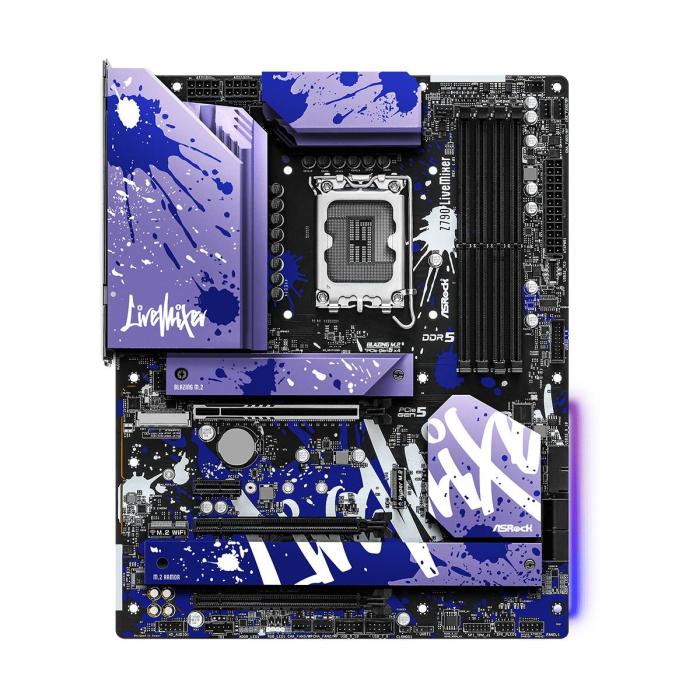

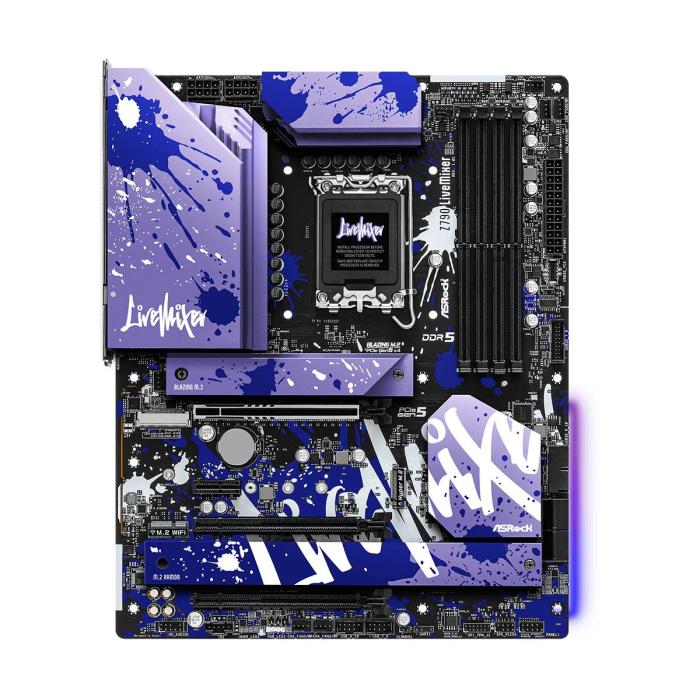

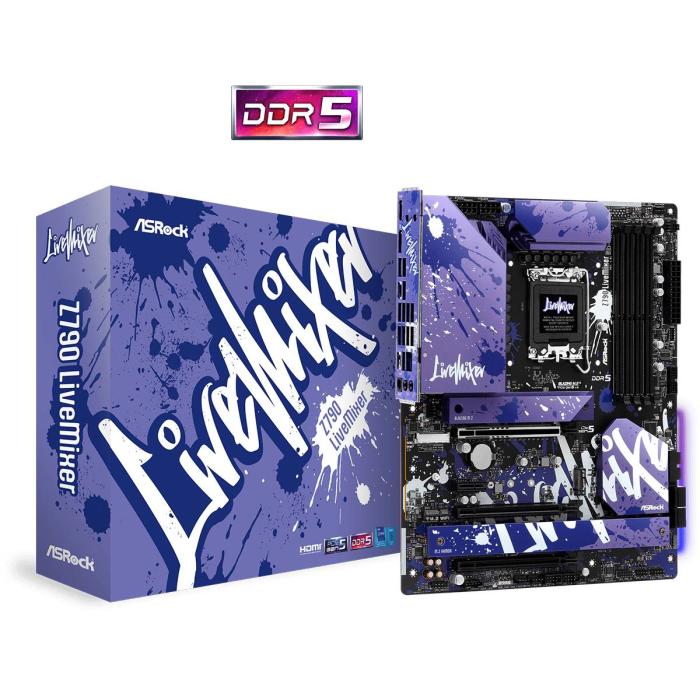

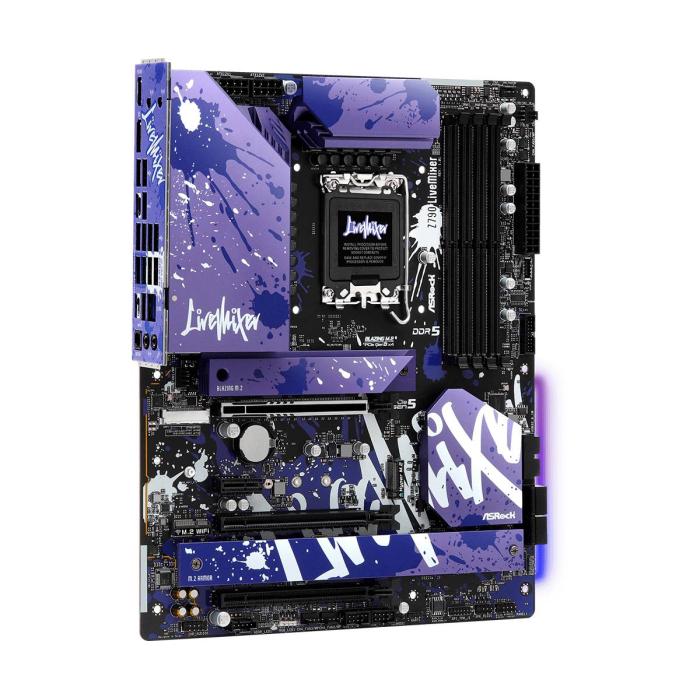

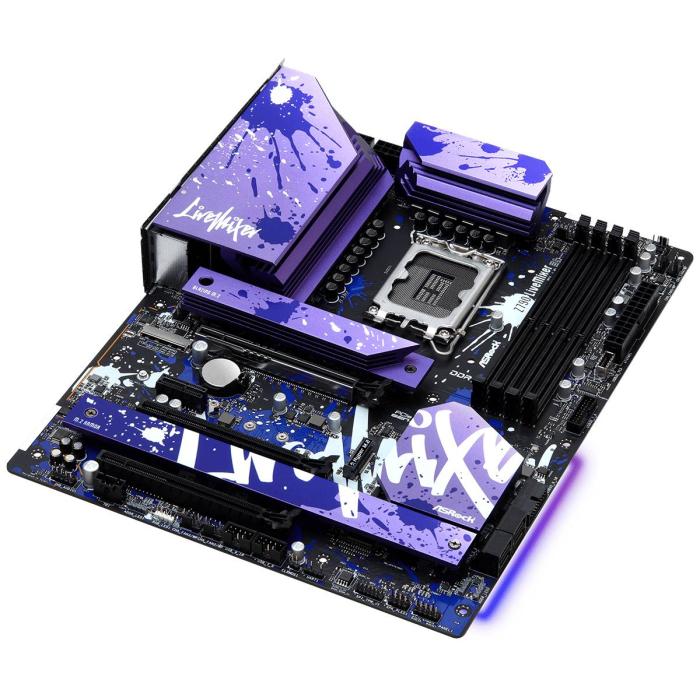

ASRock Z790 LiveMixer motherboard with LGA 1700 socket and Intel Z790 chipset, designed for 12th, 13th and 14th generation Intel® Core™ processors, including i5, i7 and i9, in ATX format. Supports up to 128 GB of DDR5-SDRAM memory in four dual-channel DIMM slots, along with RAID 0, 1, 5 and 10 options for versatile storage configurations. Features four SATA III connectors, M.2 and SATA III interfaces, as well as internal USB 2.0, USB 3.2 Gen 1 and USB 3.2 Gen 2 connectors, plus a TPM connector and header for RGB LED strips. Its design integrates robust connectivity and lighting control for content creation builds or workstations requiring multiple devices.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- Maximum internal memory: 128 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Thunderbolt headers: 1
- RGB LED pin header: Yes

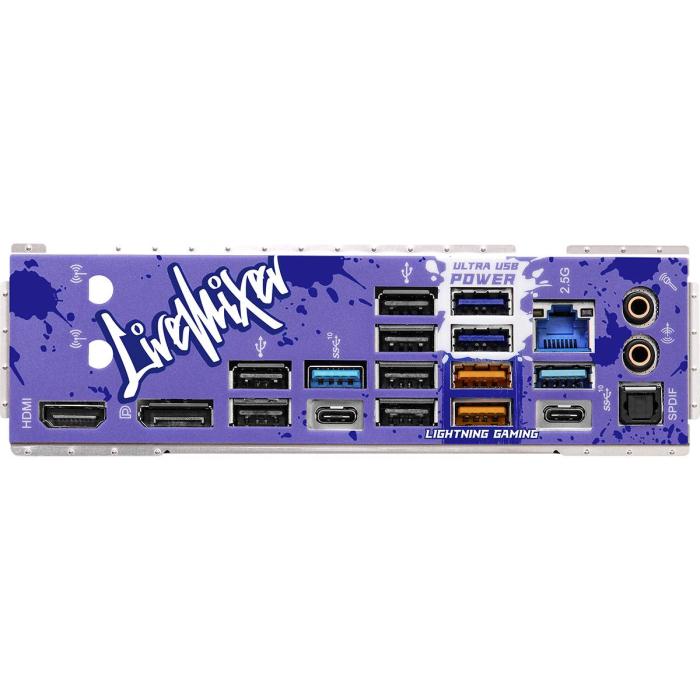

Rear panel I/O ports
- USB 2.0 ports quantity: 6
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: No
Features
- Motherboard chipset: Intel Z790
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
