Description

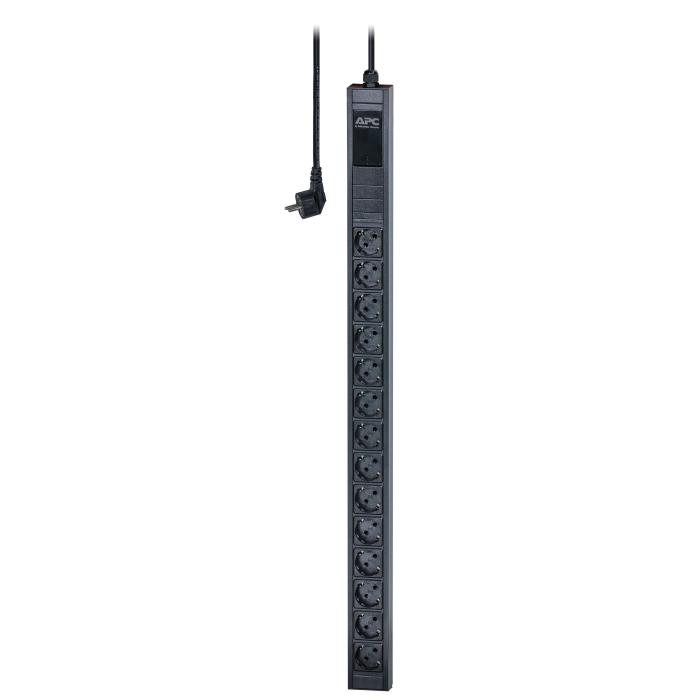

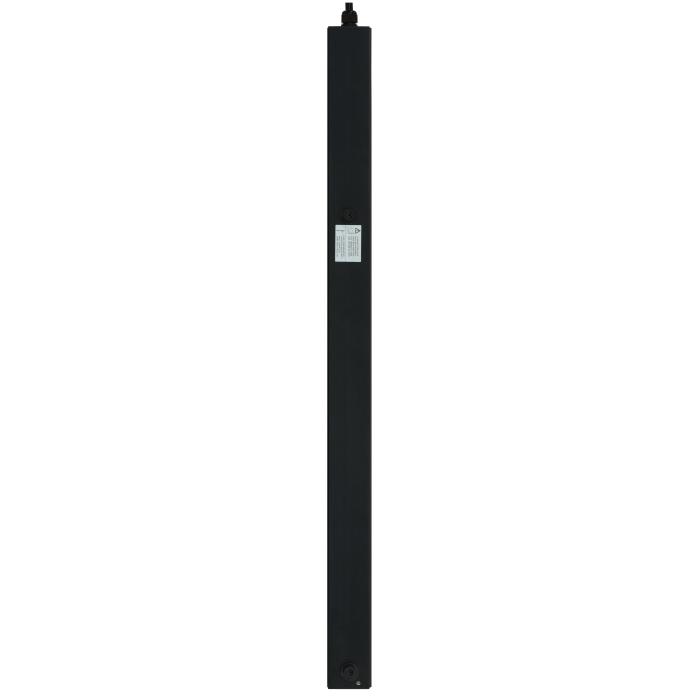

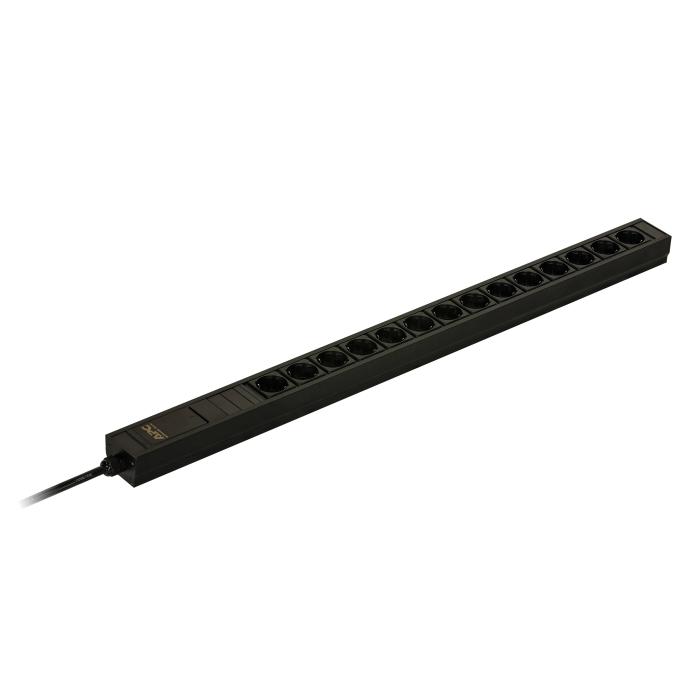

The APC EPDU1116B-SCH power distribution unit, in black, organises the power supply of a rack with its 14 type F AC outlets and also a type F connector. Its mounting is vertical and it takes up 0U of rack capacity, so it does not take away useful space from the installed equipment. The housing is made of aluminium and its dimensions are 62 x 902 x 44 mm (width x height x depth), with a weight of 1.94 kg. It is a basic single-phase PDU that works with a nominal input voltage of 200/208/230 V and an output of 230 V. It supports a maximum current of 16 A, also 16 A per phase at the input, and accepts a load of 3680 VA with a maximum power of 3680 W. The permitted AC input frequency ranges from 50 to 60 Hz and its 3 m cable facilitates connection to the power socket.
Specifications
Design
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Housing material: Aluminium
- Product colour: Black
- On/off switch: No
- PDU types: Basic
Ports & interfaces
- AC outlets quantity: 14 AC outlet(s)
- Power plug: Type F
- AC outlet types: Type F
Features
- Cable length: 3 m
Power
- Nominal input voltage: 200/208/230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Load capacity: 3680 VA
- Maximum input current per phase: 16 A
- Maximum power: 3680 W
Certificates
- Certification: CE, TUV
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 62 mm
- Depth: 44 mm
- Height: 902 mm
- Weight: 1.94 kg
Packaging content
- Manual: Yes
Packaging data
- Package weight: 2.84 kg
- Package width: 160 mm
- Package depth: 110 mm
- Package height: 1320 mm
Logistics data
- Total carbon footprint (kg of CO2e): 50.03
