Description

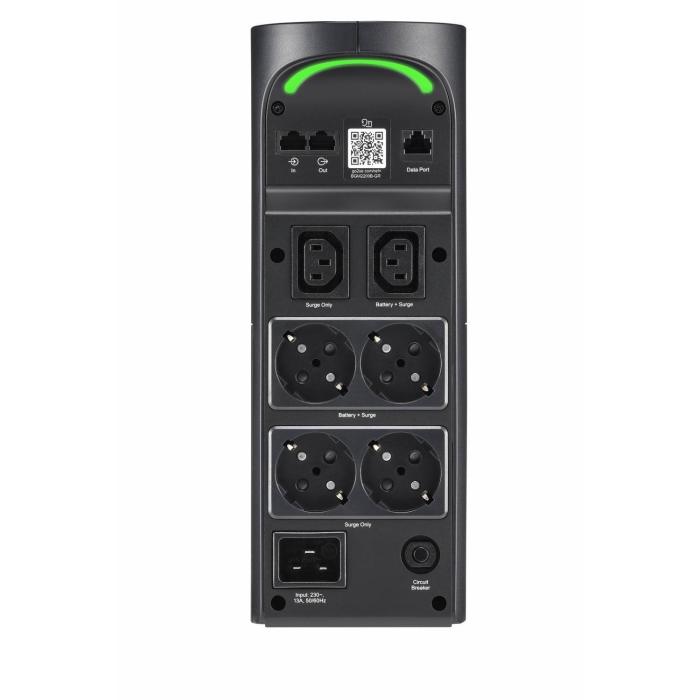

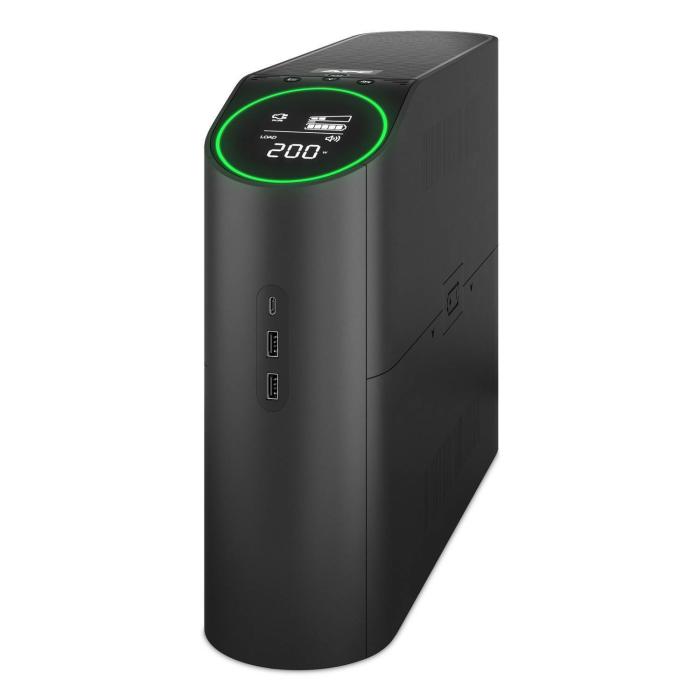

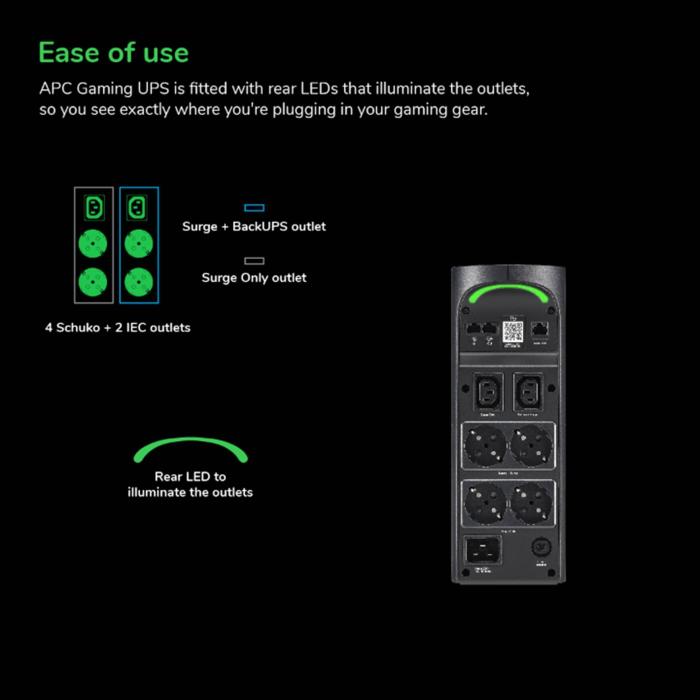

The APC Back-UPS Pro BGM2200B-GR UPS offers 2200VA and 1320W of power with line-interactive topology, sine wave output and automatic voltage regulation (AVR) to maintain stable output between 168V and 302V input, with an 8 ms response and overload protection for the mains supply. It features 4 Schuko outlets and 2 C13 outlets, plus 3 USB ports for charging mobile devices and a USB data port for management, with EMI/RFI filtering and a surge energy rating of 1080 joules. It includes audible alarms that alert when switching to battery, low battery or overload, with a noise level of 45 dB and an output frequency of 60 Hz, supporting a maximum current of 12 A.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 2.2 kVA
- Output power: 1320 W
- Waveform: Sine
- Input operation voltage (min): 168 V
- Input operation voltage (max): 302 V
- Input frequency: 50/60 Hz
- Output operation voltage (max): 230 V
- Output frequency: 60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Maximum current: 12 A
- Surge energy rating: 1080 J
- Response time: 8 ms
- EMI/RFI noise filtering: Yes
- Noise level: 45 dB
- Surge protection: Yes
- Surge protection features: Network
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types: C13 coupler, Type F
- Power plug: Type F
- AC outlets quantity: 6 AC outlet(s)
- USB port: Yes
- Serial interface type: RJ-45
- Cabling technology: 10/100/1000Base-T(X)
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery voltage: 24 V
- Number of batteries supported: 1
- Battery life (max): 5 year(s)
- Battery recharge time: 16 h
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Rack capacity: 0U
- Cable length: 1.52 m
- Product colour: Black

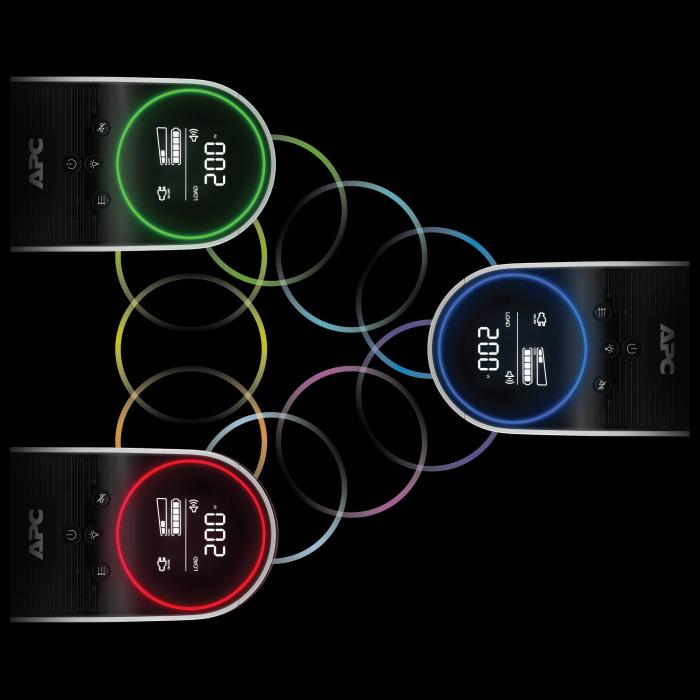

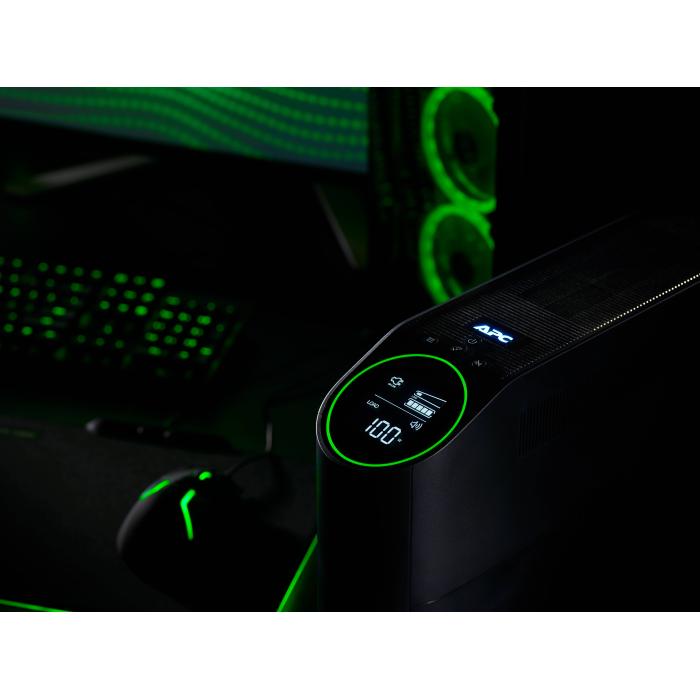

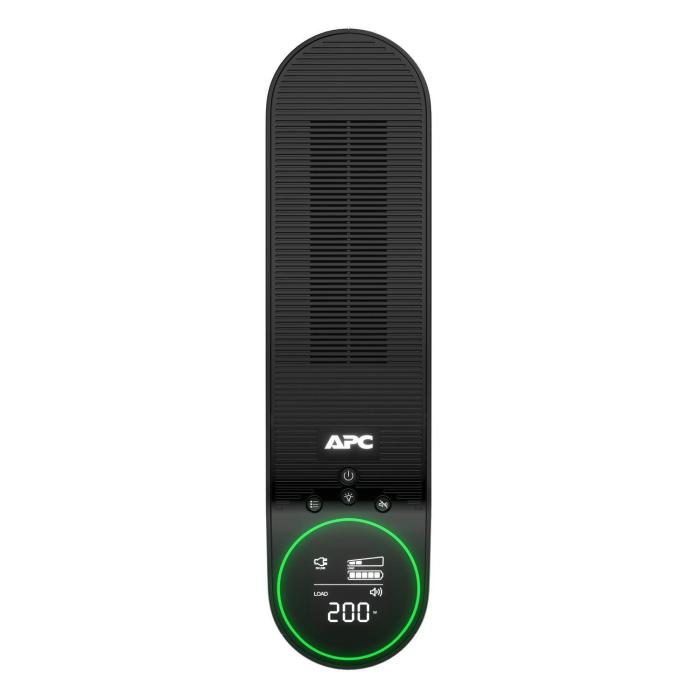

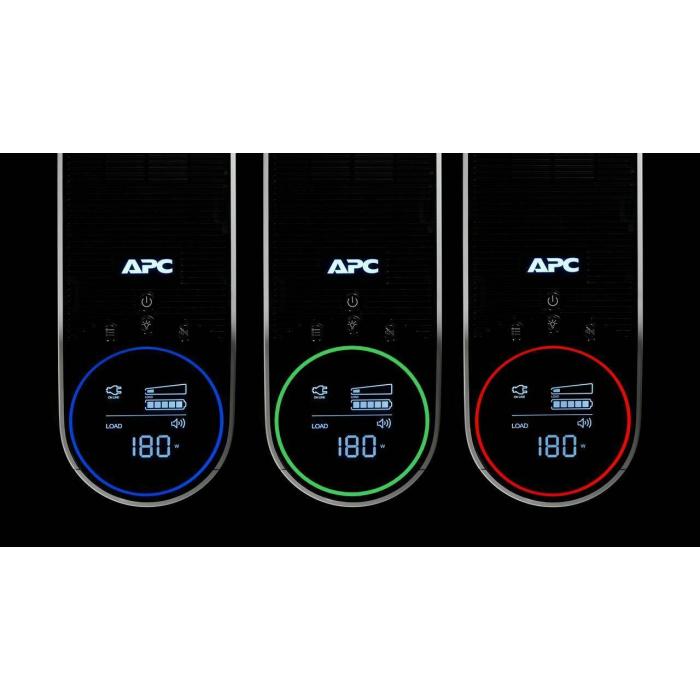

- Display type: LCD
- International Protection (IP) code: IP20
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 3048 m
Certificates
- Certification: IEC 62040-1-1 IEC 62040-2
Packaging content
- Cables included: USB cable
- Manual: Yes
Sustainability
- Sustainability certificates: Green Premium
Weight & dimensions
- Width: 104.1 mm
- Depth: 408.9 mm
- Height: 292.1 mm
- Weight: 12.3 kg
Packaging data
- Package width: 355 mm
- Package depth: 480 mm
- Package height: 155 mm
- Package weight: 14.5 kg
