Description

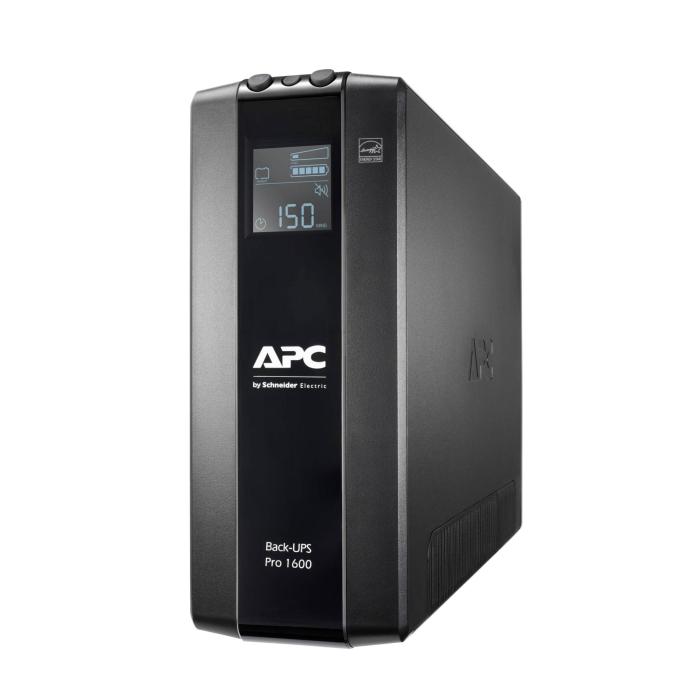

The APC BR1600MI UPS, in black, protects your equipment with a line-interactive topology and an output power of 960 W and 1.6 kVA. It incorporates automatic voltage regulation (AVR) to maintain a stable supply within an operating input range of 176 V to 294 V, with an input and output frequency of 50/60 Hz. Its output waveform is sinusoidal and it offers protection against overloads, with an energy surge rating of 509 J and a maximum current of 10 A. It features eight AC outlets, ECO mode and audible alarms that warn when it switches to battery, when the battery is low or when an overload occurs. The 10/100/1000Base-T(X) wiring technology allows it to be integrated into your network, and its noise level of 45 dB makes it discreet in the work environment. Its dimensions are 250 x 100 x 382 mm (width x height x depth), with a weight of 10.9 kg, and it includes a 1.83 m cable to connect it conveniently.
Specifications
Features
- UPS topology: Line-Interactive
- Output power capacity: 1.6 kVA
- Output power: 960 W
- Waveform: Sine
- Input operation voltage (min): 176 V
- Input operation voltage (max): 294 V
- Input frequency: 50/60 Hz
- Output frequency: 50/60 Hz
- Automatic Voltage Regulation (AVR): Yes
- Maximum current: 10 A
- Surge energy rating: 509 J
- ECO mode: Yes
- Noise level: 45 dB
- Surge protection: Yes
- Surge protection features: Network
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces

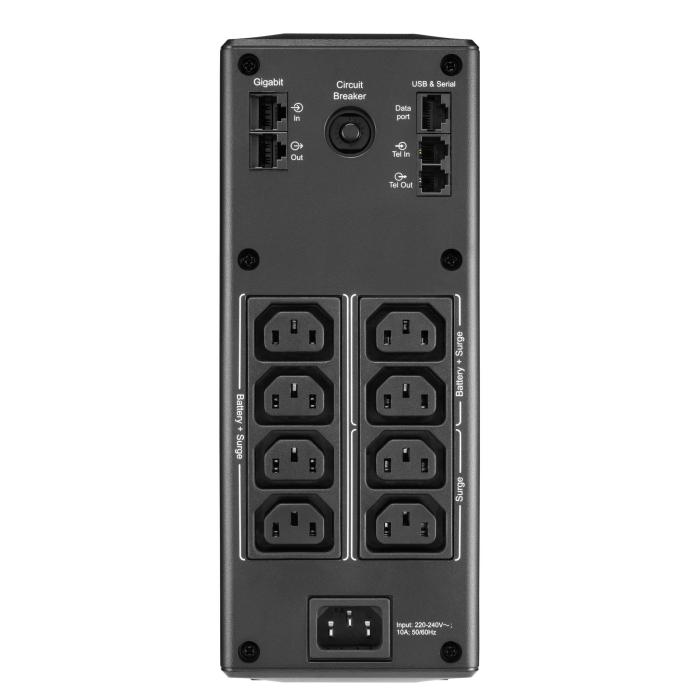

- AC outlet types: C13 coupler
- Power plug: C14 coupler
- AC outlets quantity: 8 AC outlet(s)
- USB port: Yes
- USB 2.0 ports quantity: 1
- Ethernet LAN (RJ-45) ports: 2
- Cabling technology: 10/100/1000Base-T(X)
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery life (max): 5 year(s)
- Battery recharge time: 16 h
- Hot-swap battery: Yes
- Automatic battery test: Yes
- Cold start: Yes
Design
- Form factor: Tower
- Cable length: 1.83 m
- Cooling type: Passive
- Product colour: Black
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -15 - 45 °C
Certificates
- Certification: A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Packaging content
- Cables included: USB cable
- Manual: Yes
Weight & dimensions
- Width: 250 mm
- Depth: 382 mm
- Height: 100 mm
- Weight: 10.9 kg
Packaging data
- Package width: 485 mm
- Package depth: 225 mm
- Package height: 330 mm
- Package weight: 11.7 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
