APC Back-UPS 500VA, 230V, AVR, IEC Sockets

$78.08
$78.08 without VAT

APC Back-UPS 500VA, 230V, AVR, IEC Sockets.   More info

Brand: APC
SKU: 92743 PRC: 366484 EAN: 731304435648 PN: BX500MI

Description

Specifications

Features

  • UPS topology: Line-Interactive
  • Output power capacity: 0.5 kVA
  • Output power: 300 W
  • Waveform: Sine
  • Input operation voltage (min): 140 V
  • Input operation voltage (max): 300 V
  • Input frequency: 50/60 Hz
  • Output frequency: 50/60 Hz
  • Automatic Voltage Regulation (AVR): Yes
  • Surge energy rating: 273 J
  • Efficiency: 96.1%
  • Input power factor: 0.63
  • Noise level: 40 dB
  • Surge protection: Yes
  • Audible alarm(s): Yes
  • Audible alarm modes: Alarm when on battery, Low battery alarm

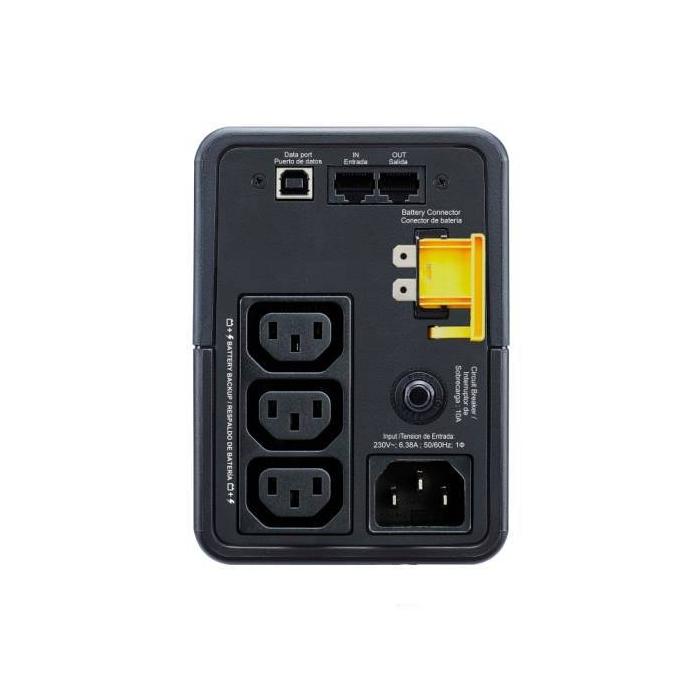

Ports & interfaces

  • AC outlet types: C13 coupler
  • Power plug: C14 coupler
  • AC outlets quantity: 3 AC outlet(s)
  • Number of output IEC jumpers: 1
  • Ethernet LAN (RJ-45) ports: 2
  • Cabling technology: 10/100/1000Base-T(X)

Battery

  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery voltage: 12 V
  • Battery life (max): 5 year(s)
  • Battery recharge time: 8 h
  • Automatic battery test: Yes

Design

  • Form factor: Tower
  • Cable length: 1.5 m
  • Product colour: Black
  • LED indicators: Battery replacement
  • International Protection (IP) code: IP20

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -15 - 40 °C
  • Operating relative humidity (H-H): 0 - 95%
  • Storage relative humidity (H-H): 0 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 3000 m

Certificates

  • Compliance certificates: RoHS
  • Certification: CE, EAC, EN/IEC 62040-1

Weight & dimensions

  • Width: 98 mm
  • Depth: 310 mm
  • Height: 138 mm
  • Weight: 4.2 kg

Packaging data

  • Package width: 142 mm
  • Package depth: 346 mm
  • Package height: 222 mm
  • Package weight: 4.5 kg

Logistics data

  • Harmonized System (HS) code: 85078000
