AORUS Z790 MASTER X 1.0 motherboard Intel Z790 Express LGA 1700 Extended ATX
AORUS Z790 MASTER X 1.0, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB.
More infoBrand: AORUS
536,00 €Stock available: 0 units.
Unavailable
SKU:
103760
PRC:
477146
EAN:
4719331857585
PN:
z790 aorus master x 1.0
Description

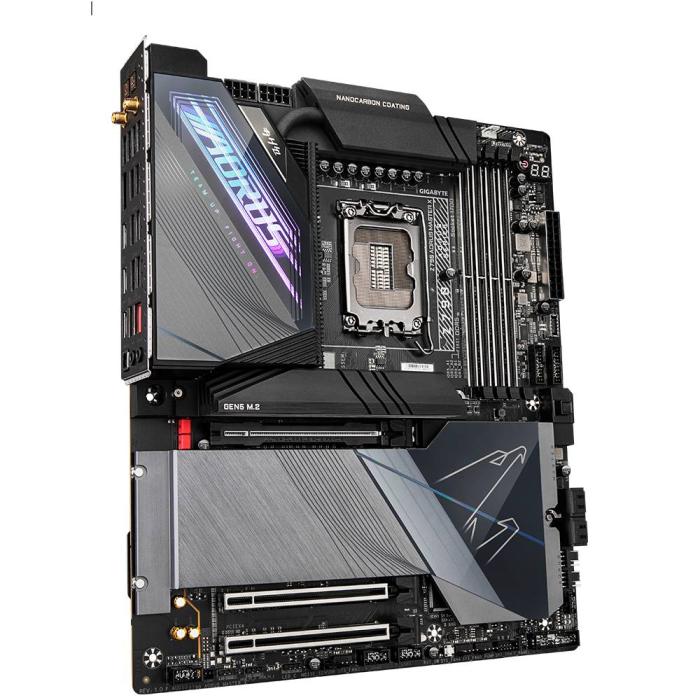

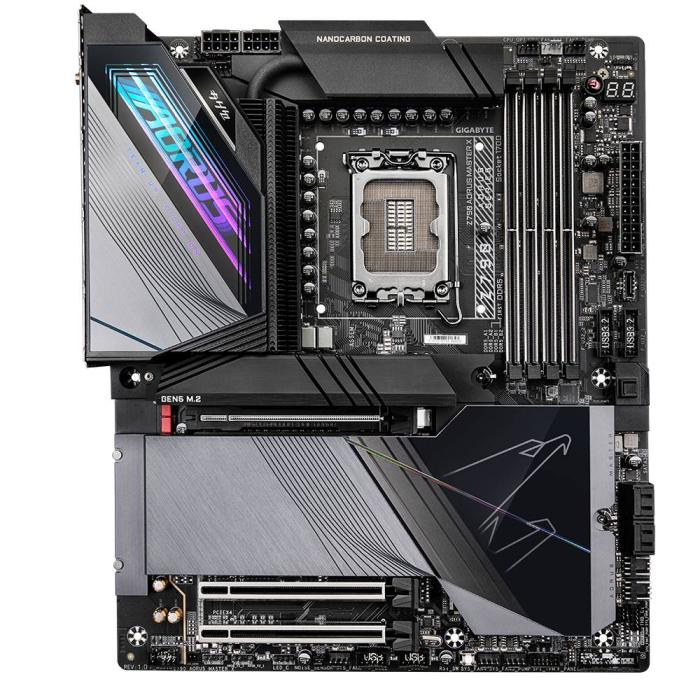

The AORUS Z790 MASTER X 1.0 motherboard is an Extended ATX base with LGA 1700 socket and Intel Z790 Express chipset, compatible with Intel Celeron, Pentium Gold processors and the Core i3, i5, i7 and i9 families. It incorporates four DIMM slots for dual-channel DDR5-SDRAM memory, with support for up to 192 GB and clock speeds of up to 8266 MHz, as well as compatibility with ECC and unbuffered memory. For storage it supports up to nine drives between HDD and SSD, with M.2, PCI Express 4.0, PCI Express 5.0 and SATA III interfaces. It also features RAID compatibility at levels 0, 1, 5 and 10.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC: Yes
- Non-ECC: Yes
- Supported memory clock speeds: 8266, 4000, 4800, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000 MHz
- Supported memory clock speed (max): 8266 MHz
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of storage drives supported: 9
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Maximum resolution: 4096 x 2304 pixels
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes
- Thunderbolt headers: 2
- 12V power connector: Yes
- RGB LED pin header: Yes

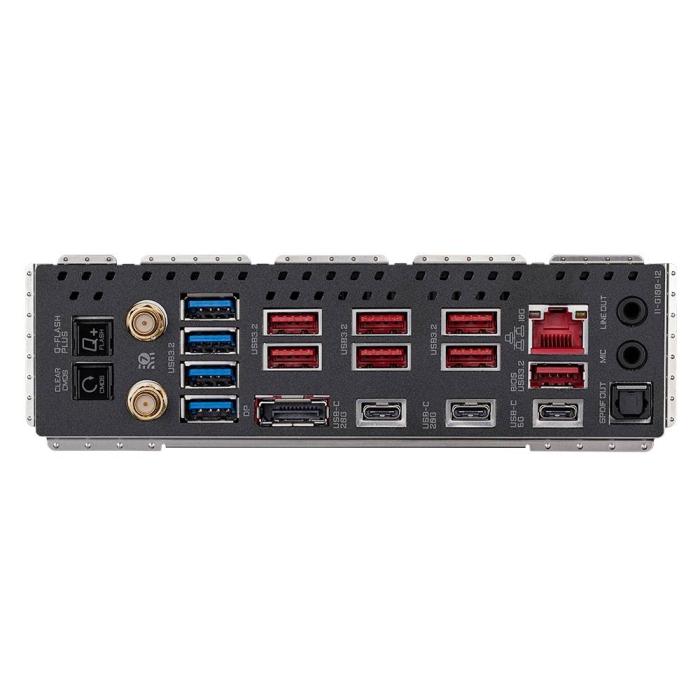

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
- USB 3.2 Gen 2x2 Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.2
- Headphone outputs: 2
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 2
- USB connector type: USB Type-A, USB Type-C
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- LAN controller: Marvell AQtion AQC113C
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Motherboard chipset: Intel Z790 Express
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 5.1 channels
- PC health monitoring: Fan, Noise, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: Extended ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 slots: 3
- Number of M.2 (M) slots: 5
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Weight & dimensions
- Width: 305 mm
- Depth: 260 mm
Packaging content
- Cables included: SATA
