Description

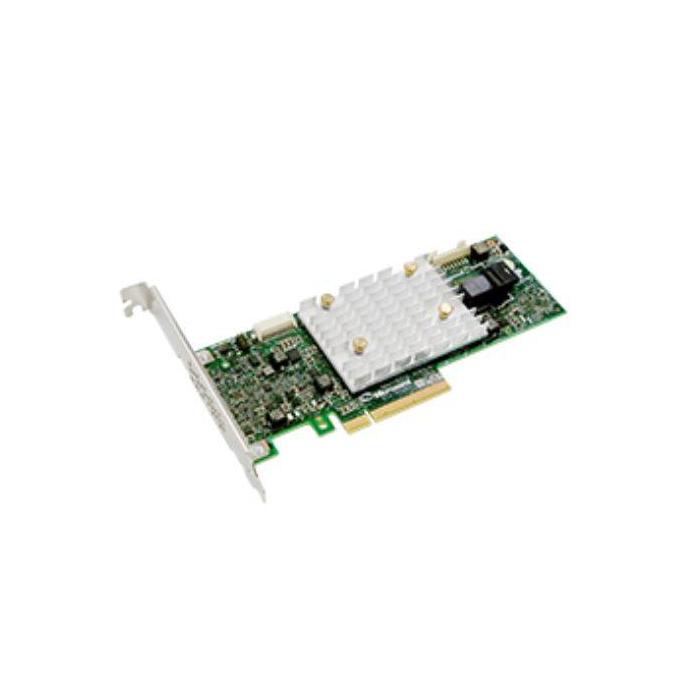

The Adaptec SmartRAID 3101E-4i interface card and adapter provides internal SAS and SATA connectivity for your server or workstation, with a single HD mini-SAS port that enables four internal SATA ports. It includes support for RAID levels 0, 1, 1 ADM, 10 ADM and 10, as well as Native Command Queuing (NCQ) and S.M.A.R.T. to monitor the health of your drives. With a PCIe 3.0 host interface and a low-profile form factor, it offers a maximum transfer rate of 12 Gbit/s and is hot-plug compatible, making it easy to swap drives without powering down the system. Its internal design is certified to CE, FCC, UL, C-tick, VCCI, KCC and RoHS, and it operates in a temperature range from 0 to 55 °C, with a mean time between failures of 1,370,000 hours.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: SAS, SATA
- Expansion card form factor: Low-profile
- Expansion card standard: PCIe 3.0
- Internal mini-SAS HD ports: 1
- Internal SATA ports quantity: 4
Design
- Internal: Yes
- Mean time between failures (MTBF): 1370000 h
- Hot-Plug support: Yes
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
Features
- Data transfer rate (max): 12 Gbit/s
- S.M.A.R.T. support: Yes
- Native Command Queuing (NCQ): Yes
- RAID levels: 0, 1, 1 ADM, 10 ADM, 10
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
Packaging data
- Quantity: 1
Logistics data
- Harmonized System (HS) code: 84733020
