Adaptec HBA 1100-4i interface cards/adapter Mini-SAS HD Internal
Adaptec HBA 1100-4i, PCIe, Mini-SAS HD, Low-profile, PCIe 3.0, 1400000 h, CE, FCC, UL, C-tick, VCCI, KCC, CNS.
More infoBrand: ADAPTEC
244.00 €Stock available: 0 units.
Unavailable
SKU:
82281
PRC:
251217
EAN:
760884157770
PN:
2293400-r
Description

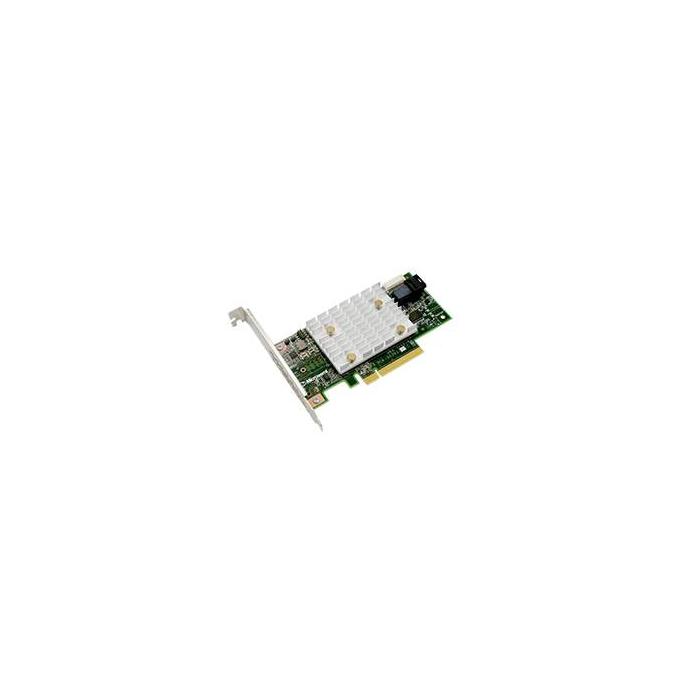

The Adaptec HBA 1100-4i card is a low-profile PCIe 3.0 interface adapter with an internal HD mini-SAS port. It features its own processor that manages the controller's operations and supports Native Command Queuing (NCQ) to optimise access to connected drives. Its Hot-Plug compatibility allows drives to be connected and disconnected without turning off the computer. It offers support for Windows and Linux operating systems, and complies with CE, FCC, UL, C-tick, VCCI, KCC and CNS certifications, as well as being RoHS compliant. Its mean time between failures is 1,400,000 hours. It operates within an operating temperature range of 0 to 55 °C.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: Mini-SAS HD
- Expansion card form factor: Low-profile
- Expansion card standard: PCIe 3.0
- Internal mini-SAS HD ports: 1
Design
- Internal: Yes
- Mean time between failures (MTBF): 1400000 h
- Hot-Plug support: Yes
- RoHS compliance: Yes
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
Features
- Built-in processor: Yes
- Native Command Queuing (NCQ): Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Weight & dimensions
- Width: 132.1 mm
- Height: 68.6 mm
