Description

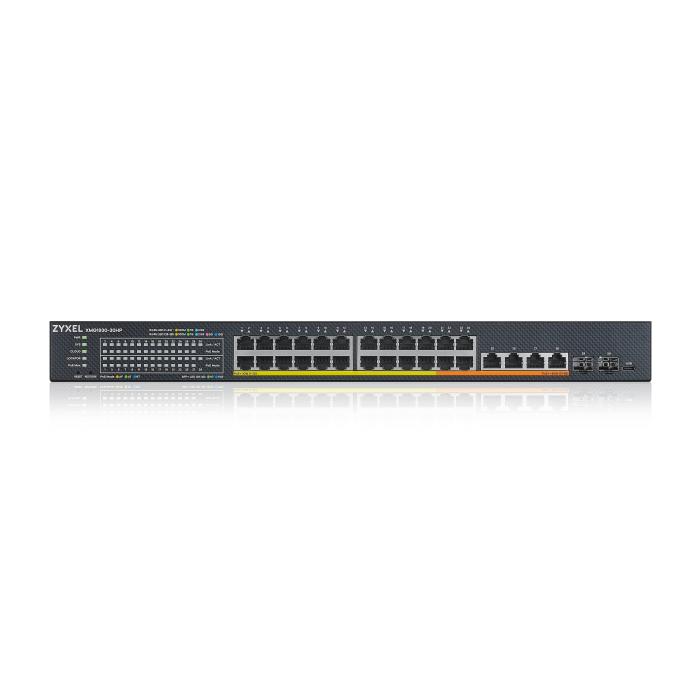

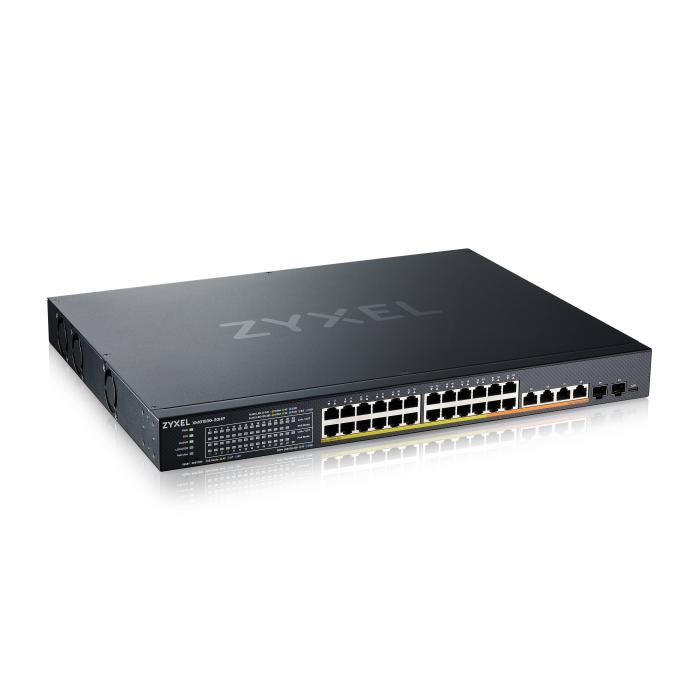

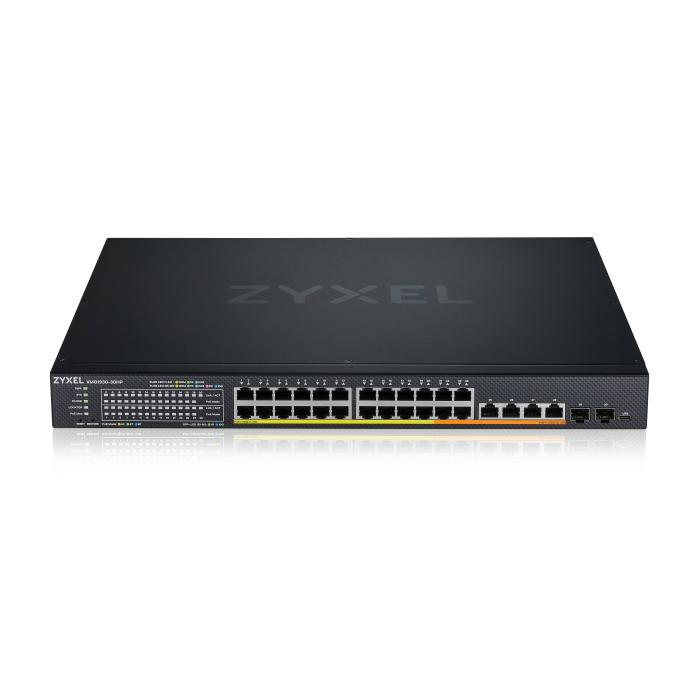

The Zyxel XMG1930-30HP managed switch comes in black and offers 2.5G Ethernet connectivity with 24 RJ-45 ports, two installed SFP+ modules and four 10G copper Ethernet ports, all with 10G support and L3 layer. Its management can be carried out web-based, via the cloud or through CLI location settings configuration, and it incorporates quality of service (QoS) and MIB support. It includes connection features such as spanning tree protocol, storm transmission control, rate limiting and policy-based routing. With a weight of 4.85 kg and dimensions of 441 x 44 x 330 mm (width x height x depth), it comes in 1U format and uses an AC-in power connector.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
- Configuring Location Settings (CLI): Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- 10G Ethernet (copper) ports quantity: 4
- Installed SFP+ modules quantity: 2
- Fiber optic connector: SFP+
- Power connector: AC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE
- 10G support: Yes
- Policy-based routing: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
- VLAN support: Yes
- Number of VLANs: 4000
Data transmission
- Forwarding rate: 178.5 Mpps
- MAC address table: 16000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 12000
- Switching capacity: 240 Gbit/s
Security
- DHCP features: DHCP client, DHCPv6 relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
Performance
- Mean time between failures (MTBF): 587922.31 h
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 864.1 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 28
- Power over Ethernet plus (PoE+) ports quantity: 20
- Total Power over Ethernet (PoE) budget: 700 W
Operational conditions
- Operating temperature (T-T): -20 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 864.1 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 330 mm
- Height: 44 mm
- Weight: 4.85 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
