Description

Specifications

WAN connection


  • Ethernet WAN: Yes
  • WAN connection type: RJ-45

Wireless LAN features


  • Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (max): 890 Mbit/s
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • WLAN data transfer rate (first band): 574 Mbit/s
  • WLAN data transfer rate (second band): 1201 Mbit/s
  • Modulation: 1024-QAM

Network


  • Ethernet LAN: Yes
  • Ethernet LAN interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Cabling technology: 10/100/1000Base-T(X)
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Dynamic DNS (DDNS): Yes
  • Static route: Yes

Mobile network


  • 3G: No
  • 4G: No
  • 5G: No

Ports & interfaces

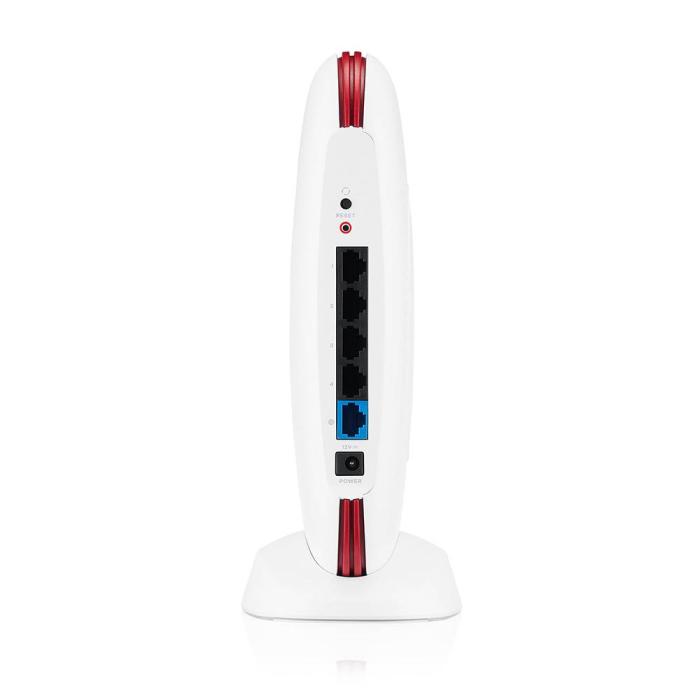

  • Ethernet LAN (RJ-45) ports: 5
  • USB port: No
  • DC-in jack: Yes

Management features


  • Web-based management: Yes
  • Reset button: Yes

Security


  • Security algorithms: IPSec
  • Firewall: Yes
  • Guest access: Yes
  • Filtering: Yes
  • MAC address filtering: Yes
  • IP address filtering: Yes
  • Network address translation (NAT): Yes

Protocols


  • DHCP client: Yes
  • DHCP server: Yes

Design


  • Product colour: White
  • Wall mountable: Yes
  • Indication light: Yes
  • LED indicators: Status
  • On/off switch: Yes
  • Product type: Tabletop router

Certificates


  • Certification: CE; FCC;BSMI

Packaging content


  • Cables included: LAN (RJ-45)
  • AC adapter included: Yes

Antenna


  • Antenna design: Internal
  • Antennas quantity: 4

Features


  • Built-in processor: Yes
  • Processor frequency: 1000 MHz
  • Processor cores: 2
  • Internal memory: 1000 MB
  • Flash memory: 256 MB
  • Languages support: Multi
  • Firmware upgradeable: Yes

Power


  • Power source type: DC
  • Output voltage: 12 V
  • Output current: 2 A
  • Power consumption (typical): 21 W

Operational conditions


  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -30 - 70 °C
  • Operating relative humidity (H-H): 10 - 90%
  • Storage relative humidity (H-H): 10 - 95%

Weight & dimensions


  • Width: 178 mm
  • Depth: 54.6 mm
  • Height: 242.2 mm
  • Weight: 651 g

Packaging data


  • Package width: 238 mm
  • Package depth: 281 mm
  • Package height: 151 mm
  • Package weight: 1.72 kg
  • Number of products included: 1 pc(s)
